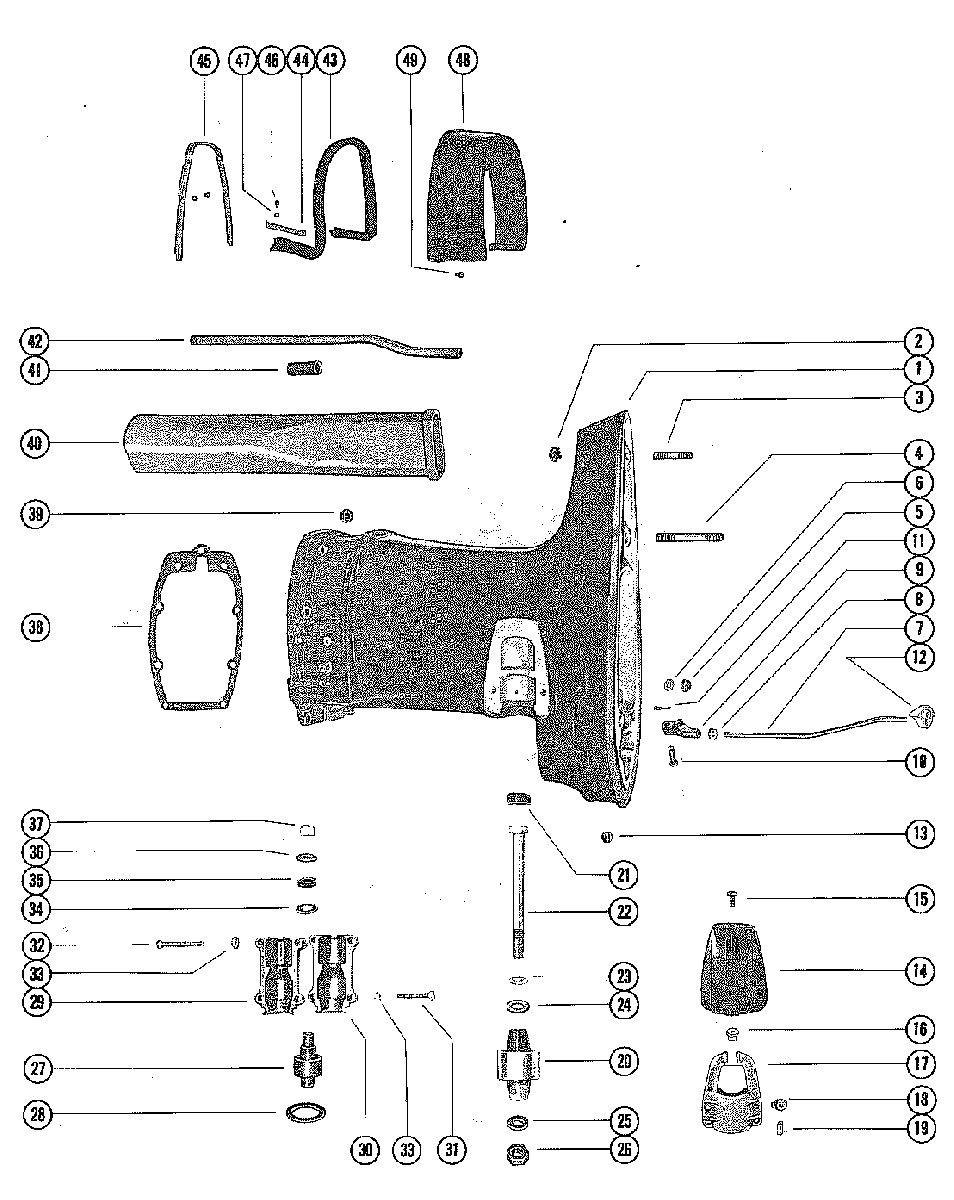

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 500 2305101 THRU 2858813
-
№АртикулНазвание
-
11554-3910A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
-
11564-3913A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
11554-3910A2 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11564-3913A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
219-47579 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
316-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
416-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
511-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
612-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
747835 ROD, PUSH - REVESE LOCK (SHORT SHAFT)ROD, PUSH - REVESE LOCK (SHORT SHAFT)
-
747836 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
811-60049 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
947837 ROD END, PUSH RODROD END, PUSH ROD
-
1024-78203A2 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
1118-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
1252917 GUIDE, PUSH RODGUIDE, PUSH ROD
-
1252917 GUIDE, PUSH RODGUIDE, PUSH ROD
-
1322-390721 PLUG, GREASE - REVERSE LOCK HOLEPLUG, GREASE - REVERSE LOCK HOLE
-
1435474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
1510-29722 SCREW, COVER TO LOWER MOUNT CLAMPSCREW, COVER TO LOWER MOUNT CLAMP
-
1611-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
1769592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
1810-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
1924-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
2075304T1 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2125067 BUMPER, RUBBER - LOWER MOUNT SCREWBUMPER, RUBBER - LOWER MOUNT SCREW
-
2210-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2312-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2412-28053 WASHER, RUBBER - LOWER MOUNT SCREWWASHER, RUBBER - LOWER MOUNT SCREW
-
2512-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2611-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
2775305 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2824929 PACKING, "U" CUP - UPPER MOUNT COVERSPACKING, "U" CUP - UPPER MOUNT COVERS
-
2979680A1 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
3079680A1 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
3110-49987 SCREW, UPPER MOUNT COVER - REAR (1 1/2")SCREW, UPPER MOUNT COVER - REAR (1 1/2")
-
3210-37941 SCREW, UPPER MOUNT COVER - FRONT (1 3/4")SCREW, UPPER MOUNT COVER - FRONT (1 3/4")
-
3311-35888 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
3412-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
3512-30521 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3612-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
3711-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3827-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
3911-862902 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
-
40695431 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
40695441 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
4123-23651 SLEEVE, WATER INLET TUBESLEEVE, WATER INLET TUBE
-
4232-37727 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
4232-45679 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
4338157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
4438154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
4538158 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
4610-37571 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSINGSCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING
-
4610-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
-
4712-30164 WASHER, RETAINING STRIP SCREWWASHER, RETAINING STRIP SCREW
-
4837687 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
4910-37571 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
