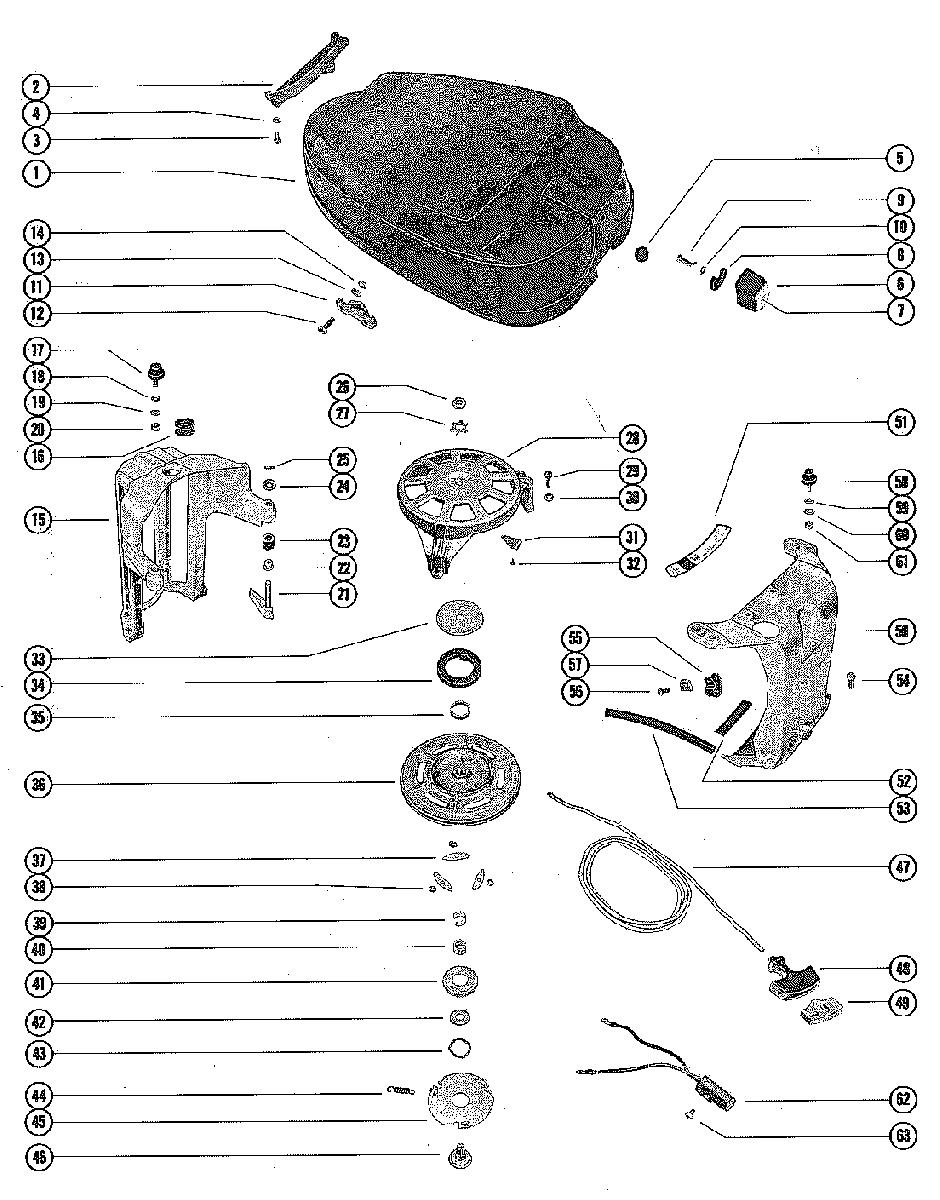

TOP COWL ASSEMBLY для Mercury - 500 2305101 THRU 2858813
-
№АртикулНазвание
-
12117-4067A1 TOP COWLTOP COWL
-
12117-4068A1 TOP COWLTOP COWL
-
237690 SHIELD, REAR - TOP COWLSHIELD, REAR - TOP COWL
-
310-37370 SCREW, REAR SHIELD TO TOP COWLSCREW, REAR SHIELD TO TOP COWL
-
413-37371 LOCKWASHER, REAR SHIELD SCREWLOCKWASHER, REAR SHIELD SCREW
-
525-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
646142A1 RETAINER ASSEMBLY, TOP COWLRETAINER ASSEMBLY, TOP COWL
-
646142A1 RETAINER ASSEMBLY, TOP COWLRETAINER ASSEMBLY, TOP COWL
-
737-61018A1 EMBLEM, TOP COWL RETAINEREMBLEM, TOP COWL RETAINER
-
835496 PAD, BUMPER - TOP COWL RETAINERPAD, BUMPER - TOP COWL RETAINER
-
910-35386 SCREW, RETAINER TO TOP COWL (1")SCREW, RETAINER TO TOP COWL (1")
-
1013-39107 LOCKWASHER, RETAINER TO TOP COWL SCREWLOCKWASHER, RETAINER TO TOP COWL SCREW
-
1146144 BRACKET, TOP COWL LATCHBRACKET, TOP COWL LATCH
-
1210-21091 SCREW, LATCH BRACKET TO TOP COWL (1 1/8")SCREW, LATCH BRACKET TO TOP COWL (1 1/8")
-
1312-29245 WASHER, LATCH BRACKET SCREW (1/16" THICK)WASHER, LATCH BRACKET SCREW (1/16" THICK)
-
1412-37998 WASHER, LATCH BRACKET SCREW (1/32" THICK)WASHER, LATCH BRACKET SCREW (1/32" THICK)
-
1552899 BRACKET, REAR COWL SUPPORTBRACKET, REAR COWL SUPPORT
-
1552899 BRACKET, REAR COWL SUPPORTBRACKET, REAR COWL SUPPORT
-
1625-52723 GROMMET, LIMIT STOP - REAR COWL SUPPORT BRACKETGROMMET, LIMIT STOP - REAR COWL SUPPORT BRACKET
-
1737640 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1813-26993 LOCKWASHER, REAR SUPPORT BRACKET RUBBER MOUNTLOCKWASHER, REAR SUPPORT BRACKET RUBBER MOUNT
-
1912-26825 WASHER, REAR SUPPORT BRACKET RUBBER MOUNTWASHER, REAR SUPPORT BRACKET RUBBER MOUNT
-
2011-22053 NUT, REAR SUPPORT BRACKET RUBBER MOUNTNUT, REAR SUPPORT BRACKET RUBBER MOUNT
-
2137412 LEVER, CLAMPING - TOP COWLLEVER, CLAMPING - TOP COWL
-
2223-26819 BUSHING, TOP COWL CLAMPING LEVER (NYLON)BUSHING, TOP COWL CLAMPING LEVER (NYLON)
-
2323-31293 BUSHING, TOP COWL CLAMPING LEVER (RUBBER)BUSHING, TOP COWL CLAMPING LEVER (RUBBER)
-
2411-30428 FASTENER, TOP COWL CLAMPING LEVERFASTENER, TOP COWL CLAMPING LEVER
-
2517-29077 PIN, ROLL - TOP COWL CLAMPING LEVERPIN, ROLL - TOP COWL CLAMPING LEVER
-
2611-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
2714-20165 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
2837685 HOUSING, STARTERHOUSING, STARTER
-
2910-90073 SCREW, STARTER HOUSING TO CRANKCASE AND CYLINDER BLOCK (1")SCREW, STARTER HOUSING TO CRANKCASE AND CYLINDER BLOCK (1")
-
3013-20202 LOCKWASHER, STARTER HOUSING SCREWLOCKWASHER, STARTER HOUSING SCREW
-
3137691 PLATE, CABLE GUIDEPLATE, CABLE GUIDE
-
3210-358811 SCREW, DRIVE - CABLE GUIDE PLATE TO STARTER HOUSINGSCREW, DRIVE - CABLE GUIDE PLATE TO STARTER HOUSING
-
3339835 RETAINER, STARTER SPRINGRETAINER, STARTER SPRING
-
3424-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
3523-28912 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
3676053A1 SHEAVE ASSEMBLYSHEAVE ASSEMBLY
-
3730596 PAWL, STARTERPAWL, STARTER
-
3813-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
3923-28919 BUSHING, NYLON - SHEAVE SHAFT SPACERBUSHING, NYLON - SHEAVE SHAFT SPACER
-
4023-61005 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
4139840 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
4212-35559 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
4313-20160 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
4424-26068 SPRING, RETAINER PLATE TO STARTER SHEAVESPRING, RETAINER PLATE TO STARTER SHEAVE
-
4566845 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
4645477A1 SHAFT, SHEAVESHAFT, SHEAVE
-
4750-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
4747341A11 STARTER CABLE (FORM MANUAL STARTING ONLY)STARTER CABLE (FORM MANUAL STARTING ONLY)
-
4828747 HANDLE, STARTER CABLEHANDLE, STARTER CABLE
-
4979470A1 RETAINER, STARTER CABLE AND HANDLERETAINER, STARTER CABLE AND HANDLE
-
5047904A2 BRACKET ASSEMBLY, FRONT SUPPORTBRACKET ASSEMBLY, FRONT SUPPORT
-
5137-46397 DECAL, TIMING - FRONT SUPPORT BRACKETDECAL, TIMING - FRONT SUPPORT BRACKET
-
5237921 FLANGE, RUBBER - FRONT SUPPORT BRACKETFLANGE, RUBBER - FRONT SUPPORT BRACKET
-
5332-8M0108355 TUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWLTUBE, DRAIN - FRONT SUPPORT BRACKET TO BOTTOM COWL
-
5410-35386 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1")
-
5554-25231 CLIP, SOLENOID LEAD TO FRONT SUPPORT BRACKETCLIP, SOLENOID LEAD TO FRONT SUPPORT BRACKET
-
5554-22740 CLIP, SOLENOID LEAD AND HARNESS TO FRONT SUPPORT BRACKETCLIP, SOLENOID LEAD AND HARNESS TO FRONT SUPPORT BRACKET
-
5554-24836 CLIP, SOLENOID LEAD AND HARNESS TO FRONT SUPPORT BRACKETCLIP, SOLENOID LEAD AND HARNESS TO FRONT SUPPORT BRACKET
-
5610-69079 SCREW, CHOKE SOLENOID CLIP ATTACHING (7/16")SCREW, CHOKE SOLENOID CLIP ATTACHING (7/16")
-
578M0084613 "D" WASHER, CHOKE SOLENOID CLIP SCREW"D" WASHER, CHOKE SOLENOID CLIP SCREW
-
5831014 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
5913-26992 LOCKWASHER, FRONT SUPPORT BRACKET RUBBER MOUNTLOCKWASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
-
6012-69057 WASHER, FRONT SUPPORT BRACKET RUBBER MOUNTWASHER, FRONT SUPPORT BRACKET RUBBER MOUNT
-
6111-20088 NUT, FRONT SUPPORT BRACKET RUBBER MOUNTNUT, FRONT SUPPORT BRACKET RUBBER MOUNT
-
6258124A8 SWITCH ASSEMBLY, MERCURY LATER MODELSSWITCH ASSEMBLY, MERCURY LATER MODELS
-
6310-48409 SCREW, MERCURY SWITCH TO EXHAUST MANIFOLD COVERSCREW, MERCURY SWITCH TO EXHAUST MANIFOLD COVER
