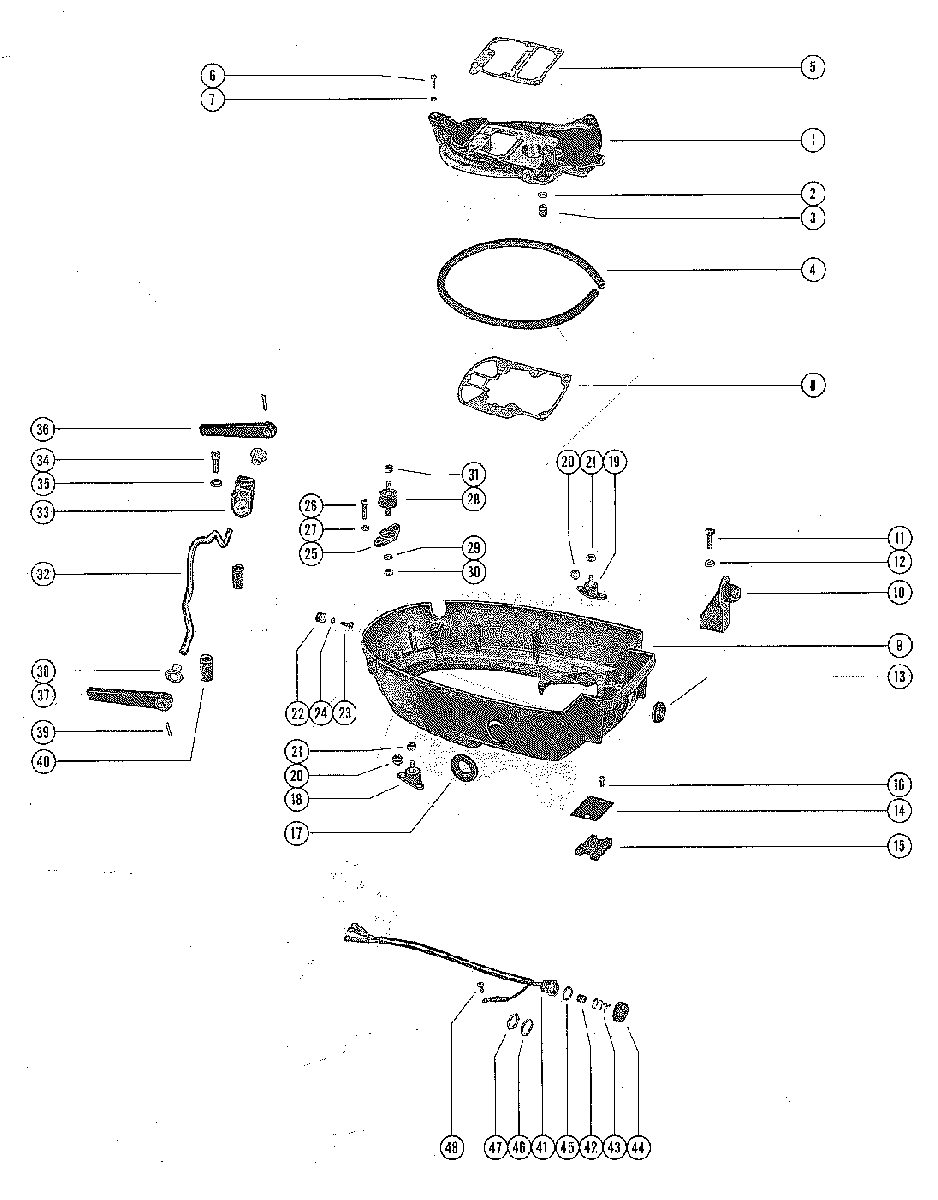

BOTTOM COWL AND ADAPTOR PLATE для Mercury - 60 1916139 THRU 2529894
-
№АртикулНазвание
-
147260A2 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
147260A2 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
223-13127 WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)WASHER, NYLON - WATER OUTLET TUBE (ADAPTOR PLATE)
-
326-36556 SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)SEAL, RUBBER - WATER OUTLET TUBE (ADAPTOR PLATE)
-
439044 SEAL, RUBBER - ADAPTOR PLATESEAL, RUBBER - ADAPTOR PLATE
-
527-89937 GASKET, POWERHEAD PLATE
SERIAL #2080069-09999999GASKET, POWERHEAD PLATE
SERIAL #2080069-09999999 -
527-89937 GASKET, POWERHEAD TO ADAPTOR PLATE
SERIAL 00000000-#2080068GASKET, POWERHEAD TO ADAPTOR PLATE
SERIAL 00000000-#2080068 -
527-89937 GASKET, POWERHEAD TO ADAPTOR PLATE(USE THUR SERIAL #2080068)GASKET, POWERHEAD TO ADAPTOR PLATE(USE THUR SERIAL #2080068)
-
610-69026 SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")SCREW, ADAPTOR PLATE TO DRIVE SHAFT HOUSING (7/8")
-
713-26992 LOCKWASHER, ADAPTOR PLATE SCREWLOCKWASHER, ADAPTOR PLATE SCREW
-
827-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
92124-2649 COWL, BOTTOMCOWL, BOTTOM
-
1039085 ANCHOR, LATCH - BOTTOM COWLANCHOR, LATCH - BOTTOM COWL
-
1110-22485 SCREW, LATCH ANCHOR TO BOTTOM COWL (3/4")SCREW, LATCH ANCHOR TO BOTTOM COWL (3/4")
-
1213-26992 LOCKWASHER, LATCH ANCHOR SCREWLOCKWASHER, LATCH ANCHOR SCREW
-
1325-39054 GROMMET, CHOKE SHAFT - BOTTOM COWLGROMMET, CHOKE SHAFT - BOTTOM COWL
-
1439051A1 PLATE ASSEMBLY, COVER - BOTTOM COWLPLATE ASSEMBLY, COVER - BOTTOM COWL
-
1539068 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
1610-8M0113176 SCRW, COVER PLATE TO BOTTOM COWL (3/8")SCRW, COVER PLATE TO BOTTOM COWL (3/8")
-
1739058 SEAL, SHIFT HANDLE - BOTTOM COWLSEAL, SHIFT HANDLE - BOTTOM COWL
-
1839145 MOUNT, RUBBER _ BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)MOUNT, RUBBER _ BOTTOM COWL TO ADAPTOR PLATE (STARBOARD)
-
1939144 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (PORT)
-
2010-29238 SCREW, RUBBER MOUNT TO BOTTOM COWL (3/8")SCREW, RUBBER MOUNT TO BOTTOM COWL (3/8")
-
2111-20184 NUT, ADAAPTOR PLATE TO RUBBER MOUNTNUT, ADAAPTOR PLATE TO RUBBER MOUNT
-
2239565 SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL)SPOOL, NYLON - TOP COWL LATCHING (BOTTOM COWL)
-
2310-32228 SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")SCREW, NYLON SPOOL TO BOTTOM COWL (5/8")
-
2413-26996 LOCKWASHER NYLON SPOOL SCREWLOCKWASHER NYLON SPOOL SCREW
-
2539147 ADAPTOR, REAR MOUNT TO BOTTOM COWLADAPTOR, REAR MOUNT TO BOTTOM COWL
-
2610-69026 SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")SCREW, REAR MOUNT ADAPTOR TO BOTTOM COWL (7/8")
-
2713-26992 LOCKWASHER, REAR MOUNT ADAPTOR SCREWLOCKWASHER, REAR MOUNT ADAPTOR SCREW
-
2839146 MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)MOUNT, RUBBER - BOTTOM COWL TO ADAPTOR PLATE (REAR)
-
2913-26992 LOCKWASHER, REAR MOUNTLOCKWASHER, REAR MOUNT
-
3011-20088 NUT, REAR MOUNT TO ADAPTORNUT, REAR MOUNT TO ADAPTOR
-
3111-20184 NUT, ADAPTOR PLATE TO REAR RUBBER MOUNTNUT, ADAPTOR PLATE TO REAR RUBBER MOUNT
-
3263648 ROD, COWL LATCH - BOTTOM COWLROD, COWL LATCH - BOTTOM COWL
-
3339099 BRACKET, COWL LATCH RODBRACKET, COWL LATCH ROD
-
3410-69026 SCREW, COWL LATCH BRACKET TO BOTTOM COWL (15/16")SCREW, COWL LATCH BRACKET TO BOTTOM COWL (15/16")
-
3513-26992 LOCKWSHER, COWL LATCH BRACKET SCREWLOCKWSHER, COWL LATCH BRACKET SCREW
-
3639083 HANDLE, COWL LATCH ROD(PORT)HANDLE, COWL LATCH ROD(PORT)
-
3739098 HANDLE, COWL LATCH ROD (STARBOARD)HANDLE, COWL LATCH ROD (STARBOARD)
-
3823-22981 BUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWLBUSHING, NYLON - COWL LATCH ROD TO BOTTOM COWL
-
3917-25319 PIN, ROLL - HANDLE TO COWL LATCH RODPIN, ROLL - HANDLE TO COWL LATCH ROD
-
4032-28373 SLEEVE, COWL LATCH ROD(EARLY MODELS ONLY)SLEEVE, COWL LATCH ROD(EARLY MODELS ONLY)
-
--32372A2 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
4132372 HARNESS, STOP SWITCHHARNESS, STOP SWITCH
-
4230859 INSULATOR, SLEEVE - INNER SWITCH TERMINALSINSULATOR, SLEEVE - INNER SWITCH TERMINALS
-
4324-30858A1 SPRING AND CONTACT ASSEMBLYSPRING AND CONTACT ASSEMBLY
-
4438950A1 COVER ASSEMBLY, STOP SWITCHCOVER ASSEMBLY, STOP SWITCH
-
4512-38949 WASHER, SEALING - STOP SWITCHWASHER, SEALING - STOP SWITCH
-
4613-21972 LOCKWASHER, STOP SWITCH CONNECTORLOCKWASHER, STOP SWITCH CONNECTOR
-
4711-21971 NUT, STOP SWITCH TO BOTTOM COWLNUT, STOP SWITCH TO BOTTOM COWL
-
4810-8M0113176 SCRW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")SCRW, STOP SWITCH LEAD TO BOTTOM COWL (3/8")
