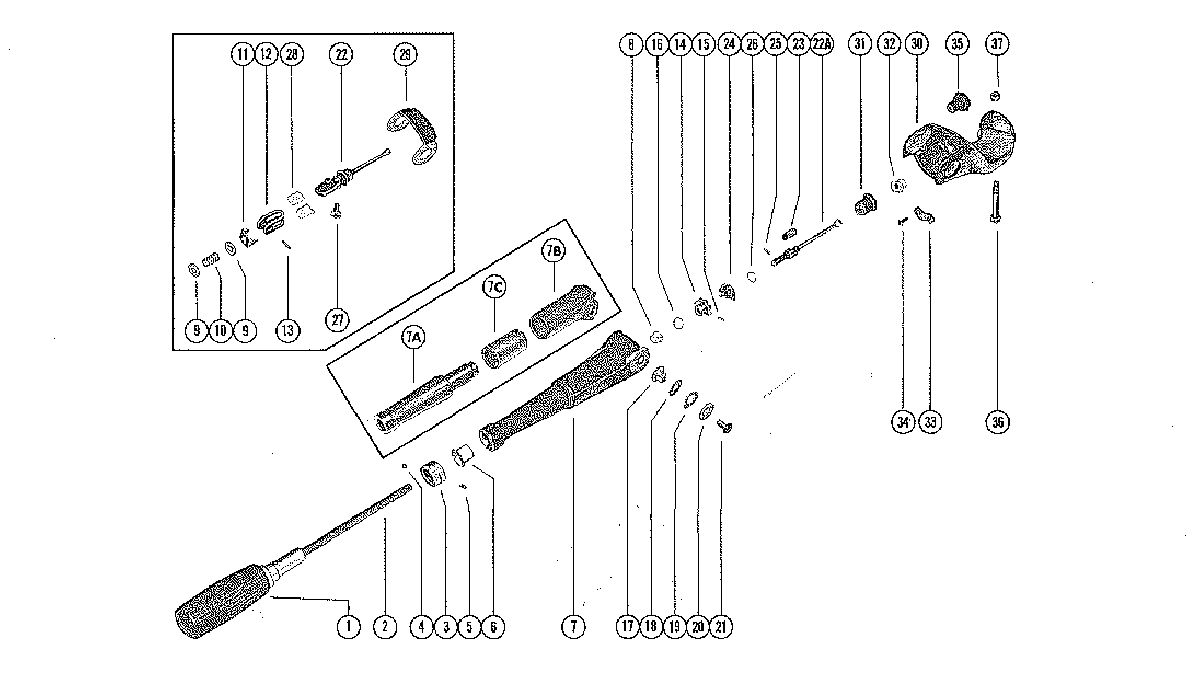

STEERING HANDLE ASSEMBLY для Mercury - 60 1916139 THRU 2529894
-
№АртикулНазвание
-
-39184A2 STEERING HANDLE ASSEMBLY, COMPLETESTEERING HANDLE ASSEMBLY, COMPLETE
-
-60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL 00000000-#2380027STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL 00000000-#2380027 -
-60850A6 STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL #2380028-09999999STEERING HANDLE ASSEMBLY, COMPLETE
SERIAL #2380028-09999999 -
127763 GRIP, RUBBER - STERING HANDLE BODYGRIP, RUBBER - STERING HANDLE BODY
-
235909 BODY AND SHAFT, STEERING HANDLEBODY AND SHAFT, STEERING HANDLE
-
331001 INDICTOR, SPEED AND LIMIT - STEERING HANDLEINDICTOR, SPEED AND LIMIT - STEERING HANDLE
-
410-31002 SCREW, SET - SPEED AND SHIFT INDICATORSCREW, SET - SPEED AND SHIFT INDICATOR
-
510-22290 SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODYSCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY
-
623-30677 BUSHING NYLON - STEERING HANDLE TO BODYBUSHING NYLON - STEERING HANDLE TO BODY
-
739184A1 STEERING HANDLE ASSEMBLYSTEERING HANDLE ASSEMBLY
-
749556A3 STEERING HANDLE ASSEMBLY
SERIAL 00000000-#2380027STEERING HANDLE ASSEMBLY
SERIAL 00000000-#2380027 -
7A49556 HANDLE, STEERING
SERIAL #2380028-09999999HANDLE, STEERING
SERIAL #2380028-09999999 -
7B49558 KNUCKLE, STEERING HANDLE
SERIAL #2380028-09999999KNUCKLE, STEERING HANDLE
SERIAL #2380028-09999999 -
7C23-49555 BUSHING, RUBBER - STEERING HANDLE
SERIAL #2380028-09999999BUSHING, RUBBER - STEERING HANDLE
SERIAL #2380028-09999999 -
823-28100 BUSHING, NYLON - STEERING HANDLEBUSHING, NYLON - STEERING HANDLE
-
912-30283 WASHER, STEERING HANDLE SHAFTWASHER, STEERING HANDLE SHAFT
-
1024-26703 SPRING, STEERING HANDLE SHAFTSPRING, STEERING HANDLE SHAFT
-
1139211 RETAINER, YOKE PIN HOLDINGRETAINER, YOKE PIN HOLDING
-
1239208 YOKE, STEERING HANDLE SHAFTYOKE, STEERING HANDLE SHAFT
-
1317-26862 PIN, YOKE TO STEERING HANDLE SHAFTPIN, YOKE TO STEERING HANDLE SHAFT
-
1443-47765 GEAR, BALL - STEERING HANDLE SHAFTGEAR, BALL - STEERING HANDLE SHAFT
-
1517-26862 PIN, BALL GEAR TO STEERING HANDLE SHAFTPIN, BALL GEAR TO STEERING HANDLE SHAFT
-
1653-47821 RING, RETAINING - BALL GEARRING, RETAINING - BALL GEAR
-
1739218 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1815-26707 SHIM, STEERING HANDLE PIVOT TO BRACKETSHIM, STEERING HANDLE PIVOT TO BRACKET
-
1913-39227 WASHER, WAVE - STEERING HANDLE PIVOT TO BRACKETWASHER, WAVE - STEERING HANDLE PIVOT TO BRACKET
-
2013-39228 LOCKWASHER, STEERING HANDLE SCREWLOCKWASHER, STEERING HANDLE SCREW
-
2110-96138 SCREW, STEERING HANDLE TO ARM BRACKET (1/2")SCREW, STEERING HANDLE TO ARM BRACKET (1/2")
-
2239046A1 THROTTLE CONTROL SHAFT ASSEMBLYTHROTTLE CONTROL SHAFT ASSEMBLY
-
1748003 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1815-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
-
2110-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
-
22A47742A1 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
2323-48005 SLEEVE, UNIVERSAL JOINTSLEEVE, UNIVERSAL JOINT
-
2443-47765 GEAR, BALL - UNIVERSAL JOINTGEAR, BALL - UNIVERSAL JOINT
-
2517-26862 PIN, BALL GEAR TO UNIVERSAL JOINTPIN, BALL GEAR TO UNIVERSAL JOINT
-
2653-47821 RING, RETAINING - BALL GEARRING, RETAINING - BALL GEAR
-
2710-96138 SCREW, THROTTLE CONTROL SHAFT TO BRACKETSCREW, THROTTLE CONTROL SHAFT TO BRACKET
-
2839210 PLATE, NYLON - THROTTLE CONTROL SHAFTPLATE, NYLON - THROTTLE CONTROL SHAFT
-
2939185 SHIELD, STEERING HANDLESHIELD, STEERING HANDLE
-
3039056 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
3061629A1 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
3147743 BOOT, UNIVERSAL JOINTBOOT, UNIVERSAL JOINT
-
3223-47818 BUSHING, STEERING ARM BRACKETBUSHING, STEERING ARM BRACKET
-
3324-72847 SPRING, DETENT - STEERING HANDLESPRING, DETENT - STEERING HANDLE
-
3410-37655 SCREW, DETENT SPRING TO STEERING HANDLESCREW, DETENT SPRING TO STEERING HANDLE
-
3539070 BOOT, RUBBER - THROTTLE CONTROL SHAFTBOOT, RUBBER - THROTTLE CONTROL SHAFT
-
3610-30679 SCREW, STEERING ARM BRACKET TO SADDLESCREW, STEERING ARM BRACKET TO SADDLE
-
3711-20184 NUT, STEERING ARM BRACKET FASTENING SCREWNUT, STEERING ARM BRACKET FASTENING SCREW
Все узлы модели:
- BOTTOM COWL AND ADAPTOR PLATE
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE
- FUEL PUMP ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GEAR HOUSING ASSEMBLY, COMPLETE
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STATOR PLATE ASSEMBLY
- • STEERING HANDLE ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
