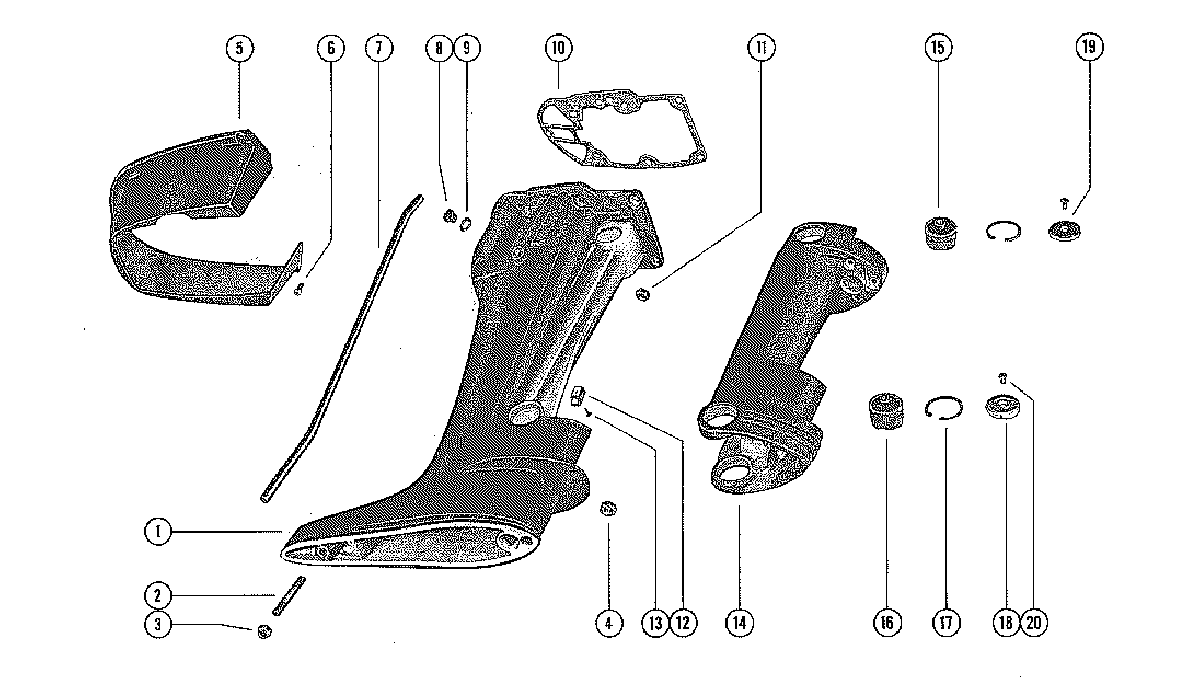

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 60 1916139 THRU 2529894
-
№АртикулНазвание
-
11556-2627A2 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11558-2641A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-34378 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
311-82670911 NUT, DRIVE SHAFT HOUSING STUDNUT, DRIVE SHAFT HOUSING STUD
-
411-8M0042636 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
539025 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
610-25764 SCREW, TRIM COVER TO BOTTOM COWL (7/16")SCREW, TRIM COVER TO BOTTOM COWL (7/16")
-
732-39061 TUBE, WATER OUTLET(SHORT SHAFT)TUBE, WATER OUTLET(SHORT SHAFT)
-
732-39062 TUBE, WATER OUTLET(LONG SHAFT)TUBE, WATER OUTLET(LONG SHAFT)
-
810-79953Q04 SCREW, FLUSH - DRIVE SHAFT HOUSINGSCREW, FLUSH - DRIVE SHAFT HOUSING
-
912-191833 WASHER, SEALING - FLUSH SCREWWASHER, SEALING - FLUSH SCREW
-
1027-39050 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
1111-20184 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1111-20184 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1111-24652 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1247259A1 BLOCK, DRIVE SHAFT(LONG SHAFT)
SERIAL 00000000-#2195578BLOCK, DRIVE SHAFT(LONG SHAFT)
SERIAL 00000000-#2195578 -
1247259A1 BLOCK ASSEMBLY, DRIVE SHAFT(LONG SHAFT)
SERIAL #2195579-09999999BLOCK ASSEMBLY, DRIVE SHAFT(LONG SHAFT)
SERIAL #2195579-09999999 -
1310-47225 SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING(LONG SHAFT) ST
SERIAL #2195579-09999999SCREW, BLOCK ASSEMBLY TO DRIVE SHAFT HOUSING(LONG SHAFT) ST
SERIAL #2195579-09999999 -
141559-8448A2 SADDLESADDLE
-
--32021 BUMPER, THRUST - SADDLE (LONG SHAFT)BUMPER, THRUST - SADDLE (LONG SHAFT)
-
1579985A1 MOUNT ASSEMBLY, UPPER(SEE NOTE BELOW)MOUNT ASSEMBLY, UPPER(SEE NOTE BELOW)
-
1679896A1 MOUNT ASSEMBLY, LOWERMOUNT ASSEMBLY, LOWER
-
1753-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1871490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
1971490 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
1971490 COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
2010-30675 SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT(3/8")SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT(3/8")
-
2010-30675 SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")SCREW, UPPER AND LOWER MOUNT COVER TO MOUNT (3/8")
-
2010-45817 SCREW, LOWER MOUNT COVER TO MOUNT(7/16")SCREW, LOWER MOUNT COVER TO MOUNT(7/16")
