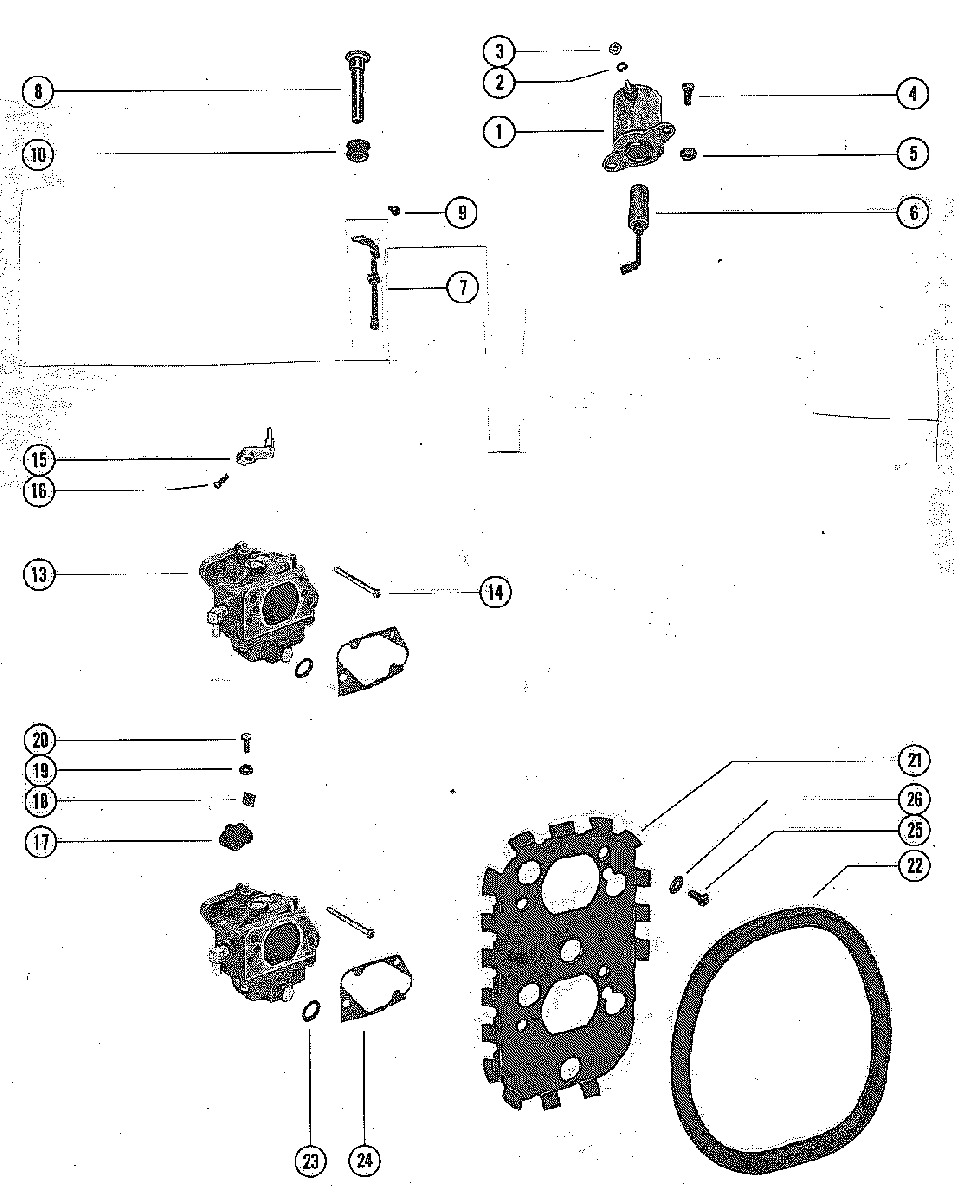

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 650 (3 CYL.) 4382057 THRU 4571651
-
№АртикулНазвание
-
160549A7 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOIDLOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
-
311-68219 NUT, HARNESS LEAD TO SOLENOID ATTACHINGNUT, HARNESS LEAD TO SOLENOID ATTACHING
-
410-33524 SCREW, CHOKE SOLENOID ATTACHING (5/8")SCREW, CHOKE SOLENOID ATTACHING (5/8")
-
511-29250 NUT, CHOKE SOLENOID ATTACHING SCREWSNUT, CHOKE SOLENOID ATTACHING SCREWS
-
689008A2 PLUNGER ASSEMBLY, CHOKE SOLENOIDPLUNGER ASSEMBLY, CHOKE SOLENOID
-
776076A1 CHOKE RODCHOKE ROD
-
890242A1 CHOKE KNOB ASSEMBLYCHOKE KNOB ASSEMBLY
-
910-77137 SCREW, WIRE TO CHOKE KNOBSCREW, WIRE TO CHOKE KNOB
-
1025-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
131379-6071A5 CARBURETOR ASSEMBLY (SHORT SHAFT)CARBURETOR ASSEMBLY (SHORT SHAFT)
-
131379-6071A9 CARBURETOR ASSEMBLY (LONG SHAFT)CARBURETOR ASSEMBLY (LONG SHAFT)
-
1410-52743 SCREW, CARBURETOR TO CRANKCASE (3 3/4")SCREW, CARBURETOR TO CRANKCASE (3 3/4")
-
1560568 LEVER, THROTTLELEVER, THROTTLE
-
1610-60293 SCERW, LEVER TO CARBURETORSCERW, LEVER TO CARBURETOR
-
1760292A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
1828-89694 INSERT, THROTTLE SHAFT COUPLINGINSERT, THROTTLE SHAFT COUPLING
-
1911-92500 WASHER, ROLLED COUPLINGWASHER, ROLLED COUPLING
-
2010-60293 SCREW, ROLLED WASHER TO COUPINGSCREW, ROLLED WASHER TO COUPING
-
2176904A1 PLATE ASSEMBLY, CARBURETORPLATE ASSEMBLY, CARBURETOR
-
2271090 SEAL, CARBURETOR PLATESEAL, CARBURETOR PLATE
-
2327-73398 GASKET, CARBURETOR PLATEGASKET, CARBURETOR PLATE
-
2427-76952 GASKET, CARBURETOR PLATE TO CARBURETORGASKET, CARBURETOR PLATE TO CARBURETOR
-
2510-20367 SCREW, PLATE TO CARBURETOR (7/16")SCREW, PLATE TO CARBURETOR (7/16")
-
2612-29245 WASHER, PLATE SCREWWASHER, PLATE SCREW
