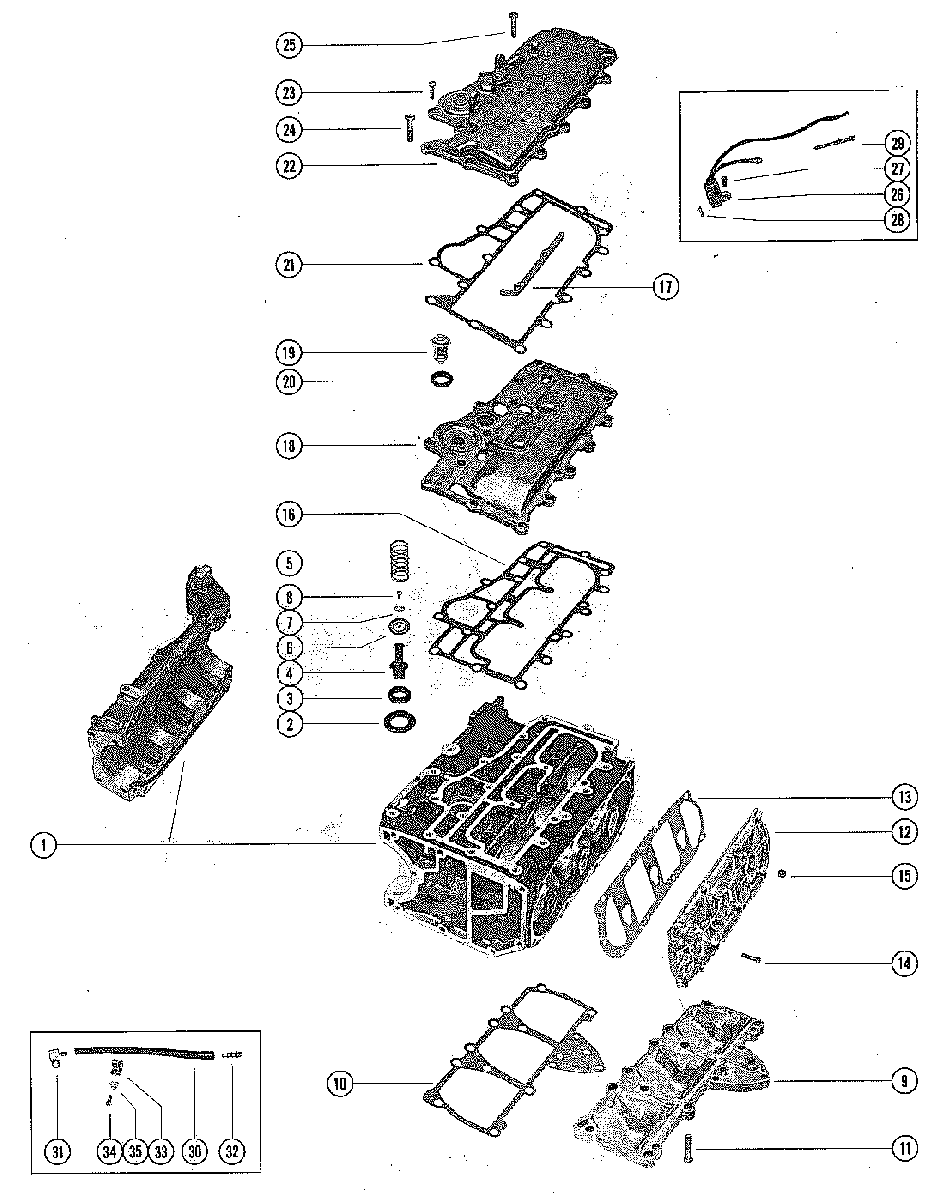

EXHAUST AND MANIFOLD COVERS для Mercury - 650 (3 CYL.) 4382057 THRU 4571651
-
№АртикулНазвание
-
1869-6005A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SHORT SHAFT)CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SHORT SHAFT)
-
1865-5890A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (LONG SHAFT)CYLINDER BLOCK AND CRANKCASE ASSEMBLY (LONG SHAFT)
-
265848 CARRIER, GROMMETCARRIER, GROMMET
-
325-64872 GROMMET, POPPET RELIEF VALVEGROMMET, POPPET RELIEF VALVE
-
486596 POPPET, RELIEF VALVEPOPPET, RELIEF VALVE
-
524-64878 SPRING, COMPRESSION-POPPET RELIEF VALVESPRING, COMPRESSION-POPPET RELIEF VALVE
-
6648771 DIAPHRAGM, POPPET VALVEDIAPHRAGM, POPPET VALVE
-
712-76451 WASHER, DIAPHRAGMWASHER, DIAPHRAGM
-
810-69570 SCREW, WASHER AND DIAPHRAGM TO POPPET VALVESCREW, WASHER AND DIAPHRAGM TO POPPET VALVE
-
973216A1 COVER, TRANSFER PASSAGECOVER, TRANSFER PASSAGE
-
1027-73442 GASKET, TRANSFER PASSAGE COVERGASKET, TRANSFER PASSAGE COVER
-
1110-38837 SCREW, TRANSFER PASSAGE COVER MOUNTING (1 1/8")SCREW, TRANSFER PASSAGE COVER MOUNTING (1 1/8")
-
121025-8116A1 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
1327-88449 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
1410-28667 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")
-
1522-328022 PLUG, CYLINDER BLOCK COVERPLUG, CYLINDER BLOCK COVER
-
1627-695252 GASKET, BAFFLE PLATE TO CYLINDER BLOCKGASKET, BAFFLE PLATE TO CYLINDER BLOCK
-
1727-703351 GASKET, BAFFLE PLATE TO CYLINDER BLOCK COVERGASKET, BAFFLE PLATE TO CYLINDER BLOCK COVER
-
1869579 PLATE, BAFFLE-EXHAUST MANIFOLDPLATE, BAFFLE-EXHAUST MANIFOLD
-
1975692 THERMOSTATTHERMOSTAT
-
2027-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
2127-695242 GASKET, PLATE TO EXHAUST MANIFOLD COVERGASKET, PLATE TO EXHAUST MANIFOLD COVER
-
2274214 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2310-38837 SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/8")SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/8")
-
2410-74824 SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/4")SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/4")
-
2510-70602 SCREW, PLATE/MANIFOLD COVER MOUNTING (2")SCREW, PLATE/MANIFOLD COVER MOUNTING (2")
-
2687-33386A3 SWITCH, MERCURYSWITCH, MERCURY
-
2710-37655 SCREW, MERCURY SWITCH TO CRANKCASE (1/2")SCREW, MERCURY SWITCH TO CRANKCASE (1/2")
-
2817-36242 PIN, ROLL-MERCURY SWITCHPIN, ROLL-MERCURY SWITCH
-
2961990 STA-STRAP, MERCURY SWITCH LEADSTA-STRAP, MERCURY SWITCH LEAD
-
3032-9938779 HOSE, CRANKCASE BLEED (12")HOSE, CRANKCASE BLEED (12")
-
3121-64871A3 FITTING, CRANKCASE BLEEDFITTING, CRANKCASE BLEED
-
3222-56759 FITTING, CRANKCASE BLEED (PRESS IN)FITTING, CRANKCASE BLEED (PRESS IN)
-
3354-648552 CLIP, BLEED HOSECLIP, BLEED HOSE
-
3410-62568 SCREW, BLEED HOSE CLIPSCREW, BLEED HOSE CLIP
-
358M0084613 "C"WASHER, BLEED HOSE CLIP"C"WASHER, BLEED HOSE CLIP
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY (G2)
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY (G4)
- • EXHAUST AND MANIFOLD COVERS
- FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY
- FUEL PUMP, FUEL FILTER AND FUEL LINES
- GEAR HOUSING ASSEMBLY, COMPLETE (G6)
- GEAR HOUSING ASSEMBLY, COMPLETE (G8)
- MISCELLANEOUS PARTS/ACCESORIES
- SHIFT LINKAGE AND EXHAUST PLATE
- STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
