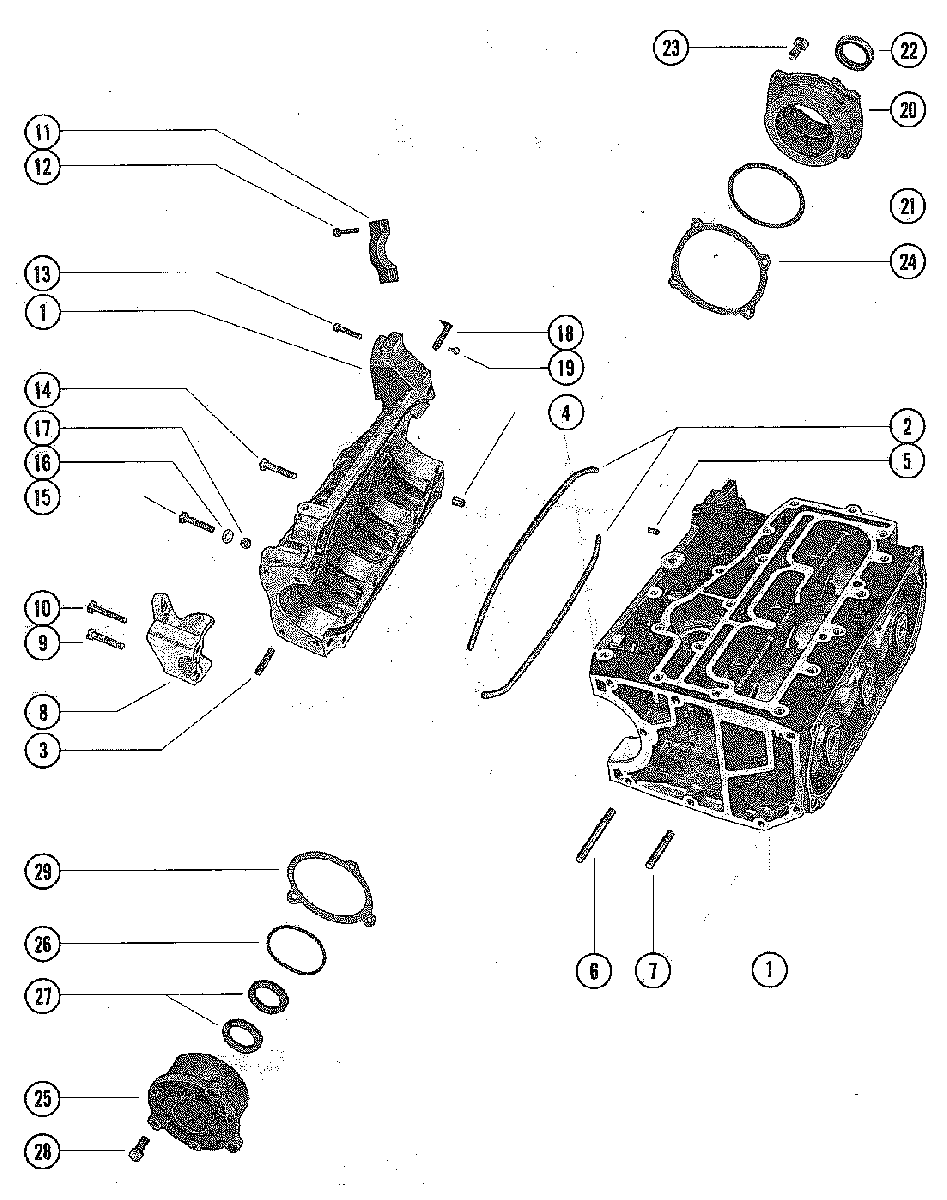

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 650 (3 CYL.) 4382057 THRU 4571651
-
№АртикулНазвание
-
1869-6005A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SHORT SHAFT)CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SHORT SHAFT)
-
1865-5890A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY (LONG SHAFT)CYLINDER BLOCK AND CRANKCASE ASSEMBLY (LONG SHAFT)
-
227-60286 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
316-68201 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")
-
417-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
517-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
-
616-68203 STUD, BLOCK TO DRIVE SHAFT HOUSING (4")STUD, BLOCK TO DRIVE SHAFT HOUSING (4")
-
716-68202 STUD, BLOCK TO DRIVE SHAFT HSG (3")-EXHAUST SIDESTUD, BLOCK TO DRIVE SHAFT HSG (3")-EXHAUST SIDE
-
716-68167 STUD, BLOCK TO DRIVE SHAFT HSG. (2 9/16")-TRANSFER SIDESTUD, BLOCK TO DRIVE SHAFT HSG. (2 9/16")-TRANSFER SIDE
-
876975 COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)
-
910-73657 SCREW, STARTER MOTOR COVER TO CRANKCASE (2")SCREW, STARTER MOTOR COVER TO CRANKCASE (2")
-
1010-22698 SCREW, STARTER MOTOR COVER TO CRANKCASE (1 3/4")SCREW, STARTER MOTOR COVER TO CRANKCASE (1 3/4")
-
1179735A1 COVER, STARTER MOTOR TO CRANKCASE (TOP)COVER, STARTER MOTOR TO CRANKCASE (TOP)
-
1210-815549 SCREW, STARTER MOTOR COVER TO CRANKCASE (2")SCREW, STARTER MOTOR COVER TO CRANKCASE (2")
-
1310-35385 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
-
1410-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1510-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
-
1612-26020 WASHER, CRANKCASE TO CYLINDER BLOCK SCREWWASHER, CRANKCASE TO CYLINDER BLOCK SCREW
-
1711-29250 NUT, CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)NUT, CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)
-
1873217 INDICATOR, TIMINGINDICATOR, TIMING
-
1910-69022 SCREW, INDICATOR TO STARTER COVERSCREW, INDICATOR TO STARTER COVER
-
201161-6357A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
2125-64966 "O"RING, END CAP"O"RING, END CAP
-
2226-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
2310-812618 SCREW, UPPER END CAP MOUNTING (1")SCREW, UPPER END CAP MOUNTING (1")
-
2415-73644A1 SHIM, UPPER END CAP (.006-8-10)SHIM, UPPER END CAP (.006-8-10)
-
251144-6691A1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2625-32546 "O"RING, END CAP"O"RING, END CAP
-
2726-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
2810-30225 SCREW, LOWER END CAP MOUNTING (1")SCREW, LOWER END CAP MOUNTING (1")
-
2915-20085A1 SHIM, LOWER END CAP (.002-3-5-10)SHIM, LOWER END CAP (.002-3-5-10)
