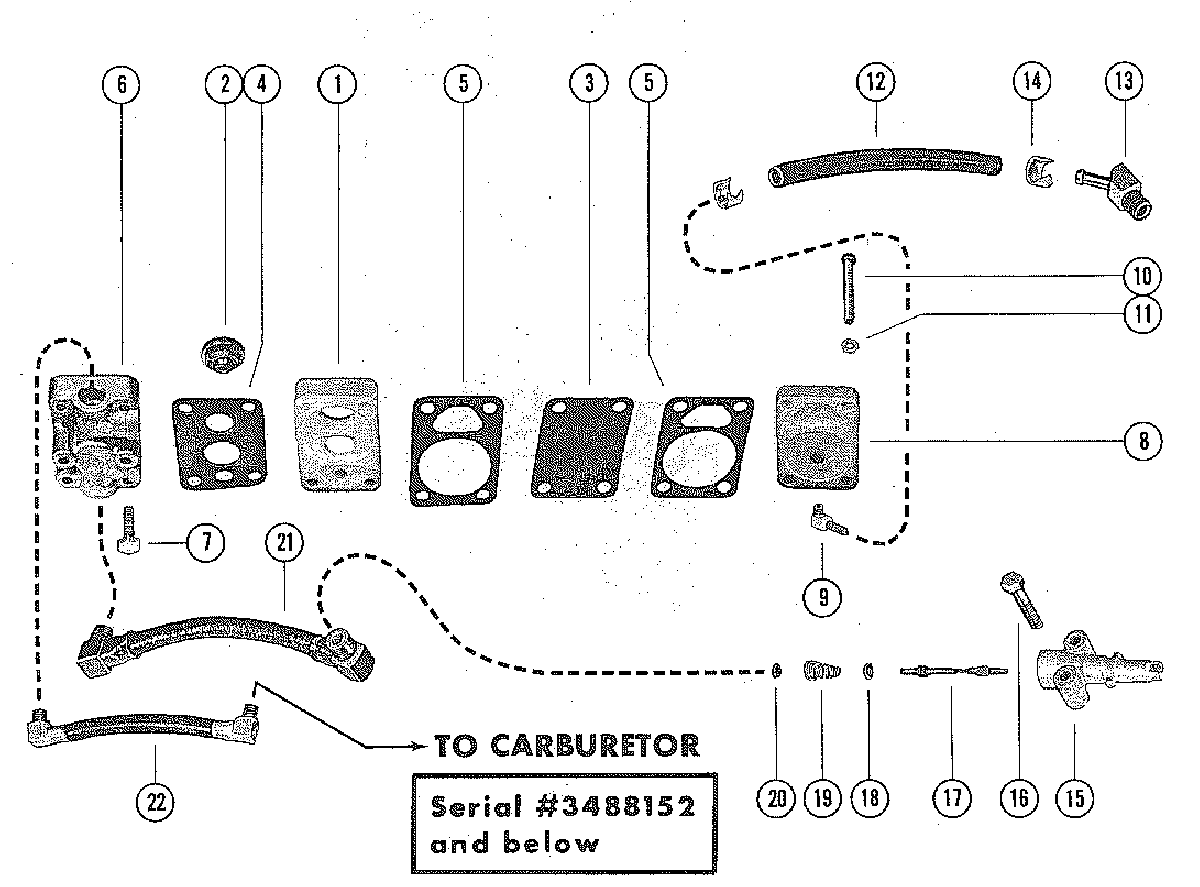

FUEL PUMP ASSEMBLY для Mercury - 75 3274633 THRU 3801457
-
№АртикулНазвание
-
189977A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-30430A2 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
353245A1 DIAPHRAGM KIT, FUEL PUMPDIAPHRAGM KIT, FUEL PUMP
-
490-8M0143356 GASKET, FUEL PUMP TO BASEGASKET, FUEL PUMP TO BASE
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
653241 BASE, FUEL PUMPBASE, FUEL PUMP
-
710-29200 SCREW, FUEL PUMP TO ANCHOR (5/8")SCREW, FUEL PUMP TO ANCHOR (5/8")
-
861541 COVER, FUEL PUMPCOVER, FUEL PUMP
-
922-61544 ELBOW, PUMP OUTLETELBOW, PUMP OUTLET
-
1010-32627 SCREW, FUEL PUMP TO BASE (1 1/2")SCREW, FUEL PUMP TO BASE (1 1/2")
-
1112-847883 WASHER, FUEL PUMP SCREWWASHER, FUEL PUMP SCREW
-
1232-9912688 HOSE, PRESSURE - CYLINDER BLOCK TO FUEL PUMP (7 1/2")HOSE, PRESSURE - CYLINDER BLOCK TO FUEL PUMP (7 1/2")
-
1322-53553 ELBOW, PRESSURE HOSE TO CYL. BLOCK (45)ELBOW, PRESSURE HOSE TO CYL. BLOCK (45)
-
1454-20387 CLAMP, PRESSURE HOSE TO ELBOWSCLAMP, PRESSURE HOSE TO ELBOWS
-
1522833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
1610-22968 SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
-
1723069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
1825-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
1924-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2030188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2132-61618 FUEL LINE, ADAPTRO FUEL PUMPFUEL LINE, ADAPTRO FUEL PUMP
-
2232-64055 FUEL LINE, FUEL PUMP TO CARBURETOR (5 3/4")FUEL LINE, FUEL PUMP TO CARBURETOR (5 3/4")
