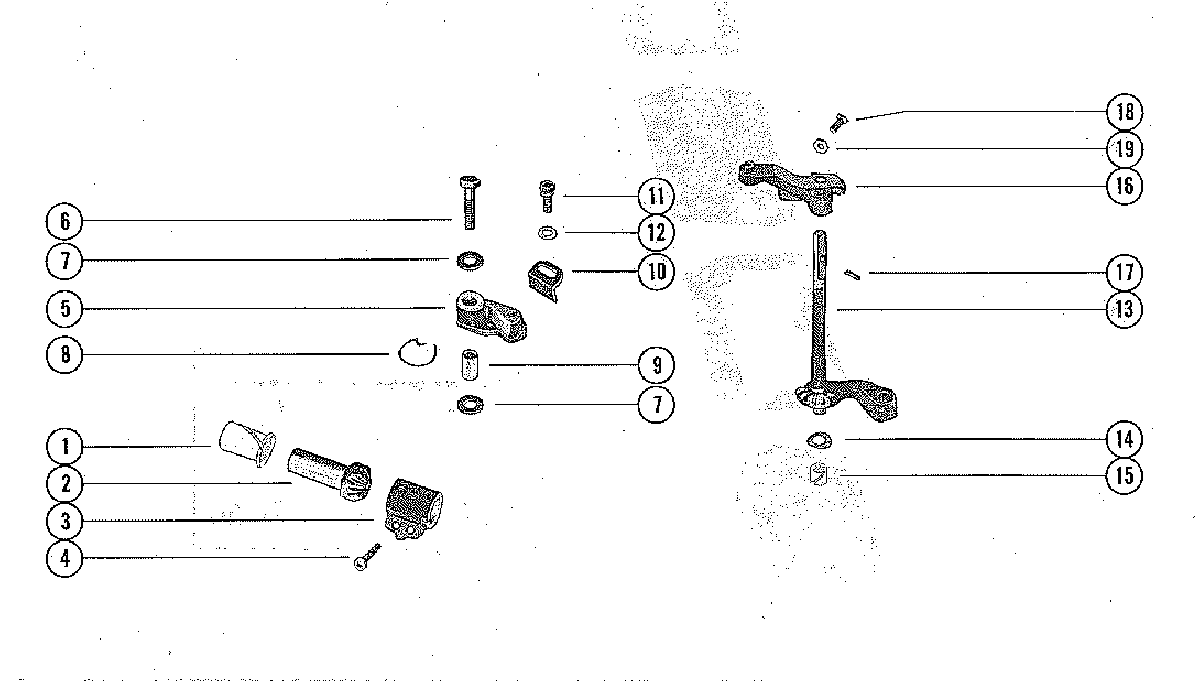

THROTTLE CONTROL LINKAGE для Mercury - 75 3274633 THRU 3801457
-
№АртикулНазвание
-
123-31011 BUSHING, NYLON - THROTTLE CONTROL SOCKET
SERIAL 00000000-#3488152BUSHING, NYLON - THROTTLE CONTROL SOCKET
SERIAL 00000000-#3488152 -
243-60856 GEAR, HORIZONTAL - THROTTLE CONTROL SOCKETGEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
-
360885T HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
410-96138 SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (5/8")
-
563308A1 FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITERFOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER
-
610-21091 SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
SERIAL 00000000-#3488152SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
SERIAL 00000000-#3488152 -
610-20653 SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
SERIAL #3488153-09999999SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8")
SERIAL #3488153-09999999 -
712-30971 WASHER, SPEED LIMITER FOLLOWER SCREWWASHER, SPEED LIMITER FOLLOWER SCREW
-
824-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWERSPRING, NEUTRAL SPEED LIMITER FOLLOWER
-
923-30972 BUSHING, SPEED LIMITER FOLLOWER SCREW
SERIAL 00000000-#3488152BUSHING, SPEED LIMITER FOLLOWER SCREW
SERIAL 00000000-#3488152 -
923-63320 BUSHING, SPEED LIMITER FOLLOWER SCREW
SERIAL #3488153-09999999BUSHING, SPEED LIMITER FOLLOWER SCREW
SERIAL #3488153-09999999 -
1036017 STOP, NEUTRAL SPEED LIMITERSTOP, NEUTRAL SPEED LIMITER
-
1110-28710 SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8")
-
1212-24676 WASHER, NEUTRAL SPEED LIMITER SPEED LIMITER STOP SCREWWASHER, NEUTRAL SPEED LIMITER SPEED LIMITER STOP SCREW
-
1363697A1 GEAR AND SHAFT, THROTTLE CONTROL
SERIAL 00000000-#3488152GEAR AND SHAFT, THROTTLE CONTROL
SERIAL 00000000-#3488152 -
13 & 163697A1 GEAR AND SHAFT, THROTTLE CONTROL
SERIAL 0#388153-0Z999999GEAR AND SHAFT, THROTTLE CONTROL
SERIAL 0#388153-0Z999999 -
1415-64653A1 SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)
-
1523-61615 BUSHING, NYLON - GEAR AND SHAFT TO BOTTOM COWL
SERIAL 00000000-#3488152BUSHING, NYLON - GEAR AND SHAFT TO BOTTOM COWL
SERIAL 00000000-#3488152 -
1663697A1 LEVER, THROTTLE CONTROL
SERIAL 00000000-#3488152LEVER, THROTTLE CONTROL
SERIAL 00000000-#3488152 -
1717-27088 PIN, ROLL - THROTTLE CONTROL LEVER TO THROTTLE CONTROL SHAFTPIN, ROLL - THROTTLE CONTROL LEVER TO THROTTLE CONTROL SHAFT
-
1810-23015 SCREW, ADJUSTING - THROTTLE ADVANCE (1")SCREW, ADJUSTING - THROTTLE ADVANCE (1")
-
1911-68219 NUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREWNUT, LOCK - THROTTLE ADVANCE ADJUSTING SCREW
