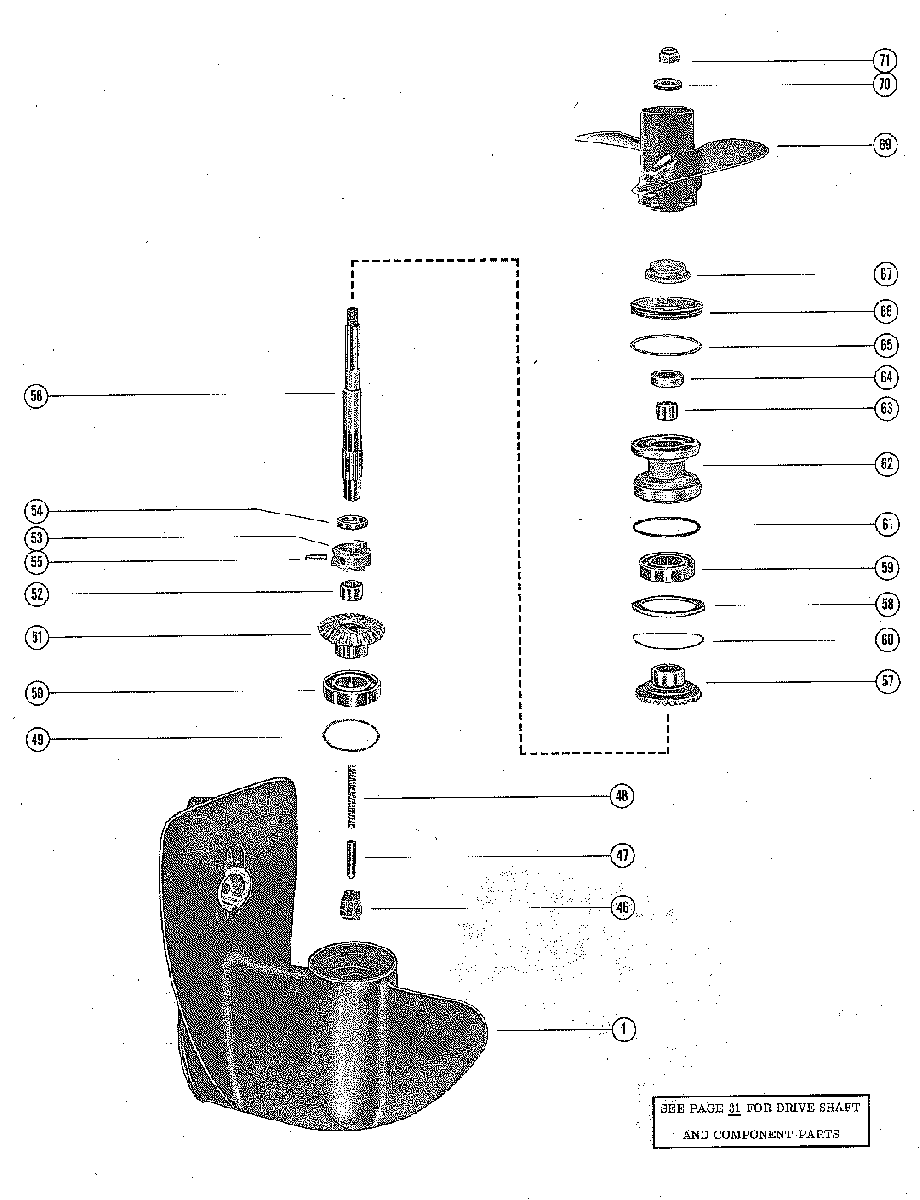

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 75 3274633 THRU 3801457
-
№АртикулНазвание
-
-1630-4407A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BEOW SERIAL 00000000-#3488152GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BEOW SERIAL 00000000-#3488152 -
-1630-4407A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BEOW SERIAL 00000000-#3488152GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BEOW SERIAL 00000000-#3488152 -
-1630-7360A12 GEAR HOUSING ASSEMBLY, COMPLTE (SHORT SHAFT)
SEE NOTE BEOW SERIAL #3488153-09999999GEAR HOUSING ASSEMBLY, COMPLTE (SHORT SHAFT)
SEE NOTE BEOW SERIAL #3488153-09999999 -
-1630-7360A13 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BEOW SERIAL #3488153-09999999GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BEOW SERIAL #3488153-09999999 -
11630-4407A1 GEAR HOUSING ASSEMBLY
SEE PAGE 31 FOR BREAKDOWN SERIAL 00000000-#3488152GEAR HOUSING ASSEMBLY
SEE PAGE 31 FOR BREAKDOWN SERIAL 00000000-#3488152 -
11630-4921A1 GEAR HOUSING ASSEMBLY
SEE PAGE 31 FOR BREAKDOWN SERIAL #3488153-09999999GEAR HOUSING ASSEMBLY
SEE PAGE 31 FOR BREAKDOWN SERIAL #3488153-09999999 -
4644434 CAM, SHIFTCAM, SHIFT
-
4731334 FOLLOWER, SHIFT CAMFOLLOWER, SHIFT CAM
-
4824-31333 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
4915-30522A1 SHIM ASSEMBLY, BALL BEARING TO HOUSING (.002-3-5-10)SHIM ASSEMBLY, BALL BEARING TO HOUSING (.002-3-5-10)
-
5030-21889 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5143-48577A3 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5231-22458 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5352-47581 RATCHET, SLIDING CLUTCH (SERIAL #3488152 AND BELOW)RATCHET, SLIDING CLUTCH (SERIAL #3488152 AND BELOW)
-
5352-63314 RATCHET, SLIDING CLUTCH (SERIAL #3488153 AND UP)RATCHET, SLIDING CLUTCH (SERIAL #3488153 AND UP)
-
5453-32449 RING, RETAINING - CROSS PINRING, RETAINING - CROSS PIN
-
5517-30535 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5644-47851 SHAFT, PROPELLER (SERIAL #3488152 AND BELOW)SHAFT, PROPELLER (SERIAL #3488152 AND BELOW)
-
5644-75667A2 SHAFT, PROPELLER (SERIAL #3488153 AND UP)SHAFT, PROPELLER (SERIAL #3488153 AND UP)
-
5743-48578 REVERSE GEAR ASSEMBLY (SERIAL #3488152 AND BELOW)REVERSE GEAR ASSEMBLY (SERIAL #3488152 AND BELOW)
-
5743-63316 REVERSE GEAR ASSEMBLY (SERIAL #3488153 AND UP)REVERSE GEAR ASSEMBLY (SERIAL #3488153 AND UP)
-
5812-30531 WASHER, THRUST - REVERSE GEARWASHER, THRUST - REVERSE GEAR
-
5930-21889 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6015-30532A1 SHIM ASSEMBLY, THRUST WASHER TO HOUSING (.002-3-5-10)SHIM ASSEMBLY, THRUST WASHER TO HOUSING (.002-3-5-10)
-
6125-30529 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6230541T1 BEARING CARRIER ASSEMBLY
SERIAL 00000000-#3488152BEARING CARRIER ASSEMBLY
SERIAL 00000000-#3488152 -
6263317T3 BEARING CARRIER ASSEMBLY
SERIAL #3488153-09999999BEARING CARRIER ASSEMBLY
SERIAL #3488153-09999999 -
6331-22458 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6426-30530 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6512-30528 WASHER, GEAR HOUSING COVERWASHER, GEAR HOUSING COVER
-
6630537 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6786665A1 COLLAR, PROPELLER GUIDECOLLAR, PROPELLER GUIDE
-
6948-47670A10 PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FROM FACTORY)PROPELLER ASSEMBLY (SHIPPED WITH ENGINE FROM FACTORY)
-
6948-47922A10 PROPELLER ASSEMBLYPROPELLER ASSEMBLY
-
7011-64075A1 SPACER, SPLINED - PROPELLER SHAFTSPACER, SPLINED - PROPELLER SHAFT
-
7111-34933 NUT, PROPELLER
SERIAL 00000000-#3488152NUT, PROPELLER
SERIAL 00000000-#3488152 -
7111-64075A1 NUT, PROPELLER
SERIAL #3488153-09999999NUT, PROPELLER
SERIAL #3488153-09999999
