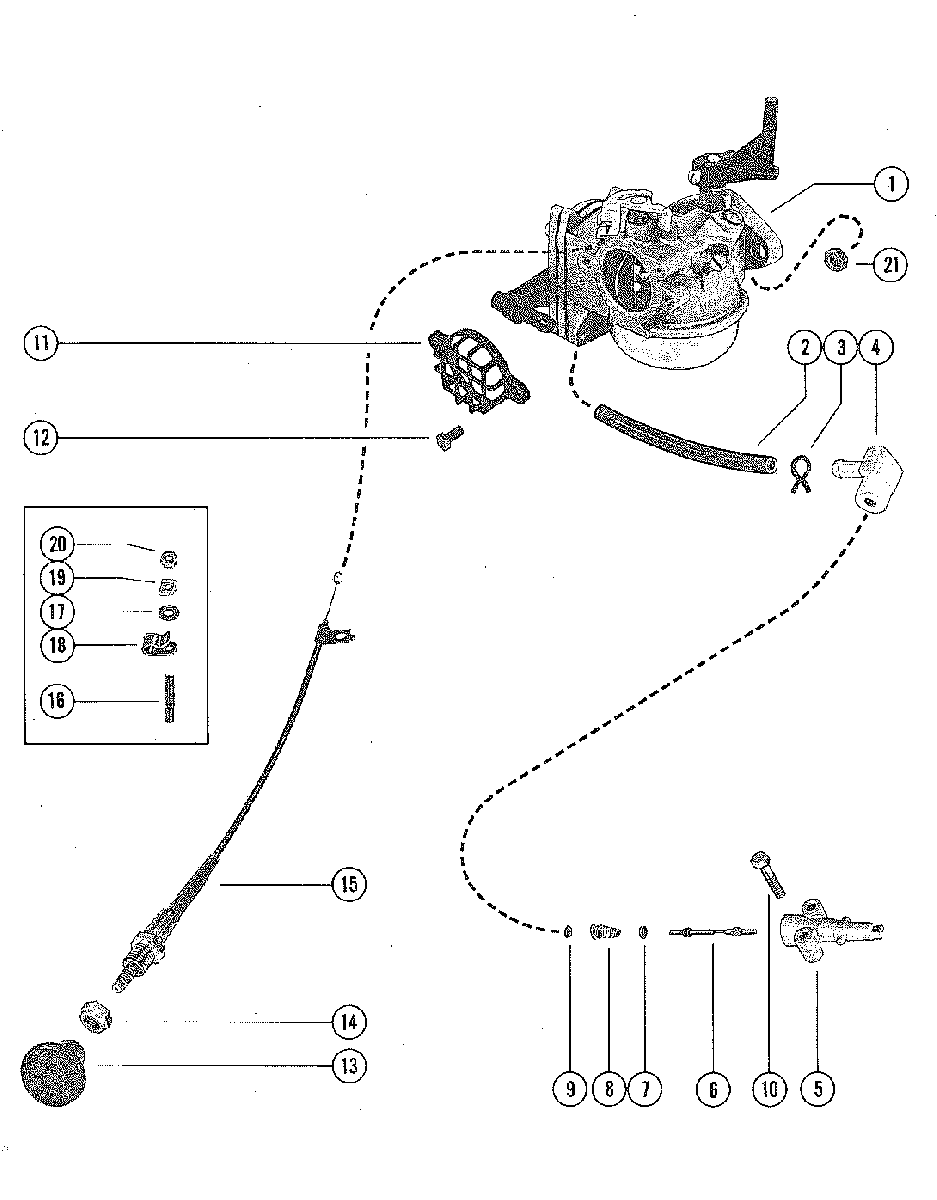

CARBURETOR AND CHOKE ASSEMBLY для Mercury - 75 8051350 THRU 8058019
-
№АртикулНазвание
-
11364-8783A14 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
232-8M0108355 FUEL LINE, ADAPTOR TO CARBURETORFUEL LINE, ADAPTOR TO CARBURETOR
-
354-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
422-98750 FITTING, FUEL LINE TO ADAPTORFITTING, FUEL LINE TO ADAPTOR
-
522833 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
623069 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
725-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
824-23067T SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
930188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
1010-37923 SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")SCREW, ADAPTOR TO BOTTOM COWL (1 1/4")
-
1165552 SCREEN, CARBURETORSCREEN, CARBURETOR
-
1210-69022 SCREW, SCREEN TO CARBURETORSCREW, SCREEN TO CARBURETOR
-
1386381 KNOB, CHOKEKNOB, CHOKE
-
1411-73710 NUT, CHOKE CABLE TO BOTTOM COWLNUT, CHOKE CABLE TO BOTTOM COWL
-
1572465 CABLE, CHOKECABLE, CHOKE
-
1616-69036 STUD, CHOKE CABLE TO CARBURETORSTUD, CHOKE CABLE TO CARBURETOR
-
1712-56681 WASHER, CHOKE CABLE STUDWASHER, CHOKE CABLE STUD
-
1854-24836 CLIP, TRIGGER LEADSCLIP, TRIGGER LEADS
-
198M0084613 "D" WASHER, TRIGGER LEAD CLIP"D" WASHER, TRIGGER LEAD CLIP
-
2011-45076 NUT, CHOKE CABLE STUDNUT, CHOKE CABLE STUD
-
2111-20184 NUT, CARBURETOR ATTACHINGNUT, CARBURETOR ATTACHING
