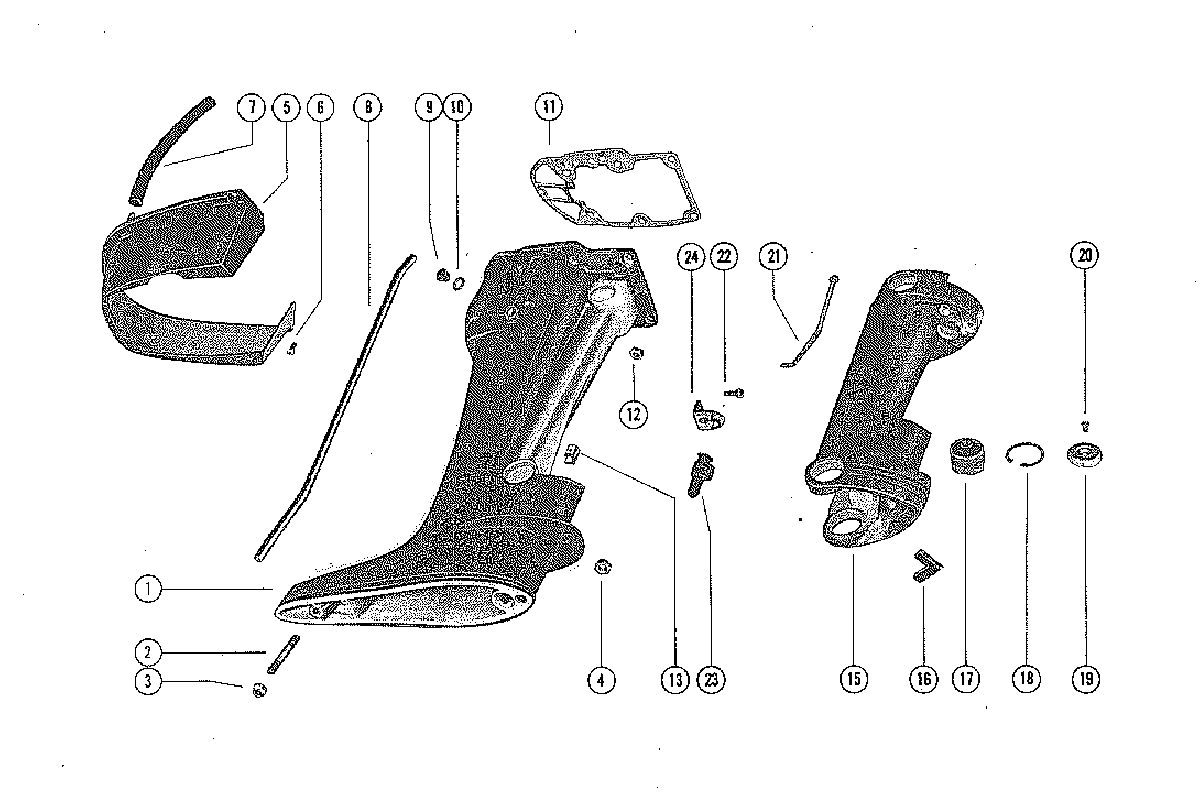

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 75 8051350 THRU 8058019
-
№АртикулНазвание
-
11556-8451A1 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11558-8453A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
(2 5/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
(2 5/16") -
311-8M0042636 NUT, DRIVE SHAFT HOUSING STUD
(3/8 - 24)NUT, DRIVE SHAFT HOUSING STUD
(3/8 - 24) -
411-82670911 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
(5/16 - 24)NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
(5/16 - 24) -
572471 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
610-64652 SCREW, TRIM COVER TO BOTTOM COWL (1/2")SCREW, TRIM COVER TO BOTTOM COWL (1/2")
-
732-8M0108355 HOSE, TELL TALE (9 1/2")HOSE, TELL TALE (9 1/2")
-
832-39061 TUBE, WATER OUTLET
SHORT SHAFTTUBE, WATER OUTLET
SHORT SHAFT -
832-39062 TUBE, WATER OUTLET
LONG SHAFTTUBE, WATER OUTLET
LONG SHAFT -
910-79953Q04 SCREW, FLUSH - DDRIVE SHAFT HOUSINGSCREW, FLUSH - DDRIVE SHAFT HOUSING
-
1012-191833 WASHER, SEALING - FLUSH SCREWWASHER, SEALING - FLUSH SCREW
-
1127-39050 GASKET
ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET
ADAPTOR PLATE TO DRIVE SHAFT HOUSING -
1211-24652 NUT
DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT
DRIVE SHAFT HOUSING TO POWERHEAD STUDS -
1211-24652 NUT
DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT
DRIVE SHAFT HOUSING TO POWERHEAD STUDS -
1355435 BLOCK, DRIVE SHAFT
LONG SHAFTBLOCK, DRIVE SHAFT
LONG SHAFT -
151559-8448A2 SADDLE ASSEMBLYSADDLE ASSEMBLY
-
1664076 BUMPER, THRUST - SADDLEBUMPER, THRUST - SADDLE
-
1779896A1 MOUNT, LOWER AND UPPER
.MOUNT, LOWER AND UPPER
. -
1853-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1971490 COVER, LOWER MOUNTCOVER, LOWER MOUNT
-
2010-72169 SCREW, LOWER MOUNT COVER TO MOUNT (7/16")SCREW, LOWER MOUNT COVER TO MOUNT (7/16")
-
2171057 LINK ROD, REVERSE LOCKLINK ROD, REVERSE LOCK
-
2210-65414 SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING
(3/4")SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING
(3/4") -
2365216 CAM, REVERSE LOCKCAM, REVERSE LOCK
-
2472007 RETAINER, REVERSE LOCK CAMRETAINER, REVERSE LOCK CAM
