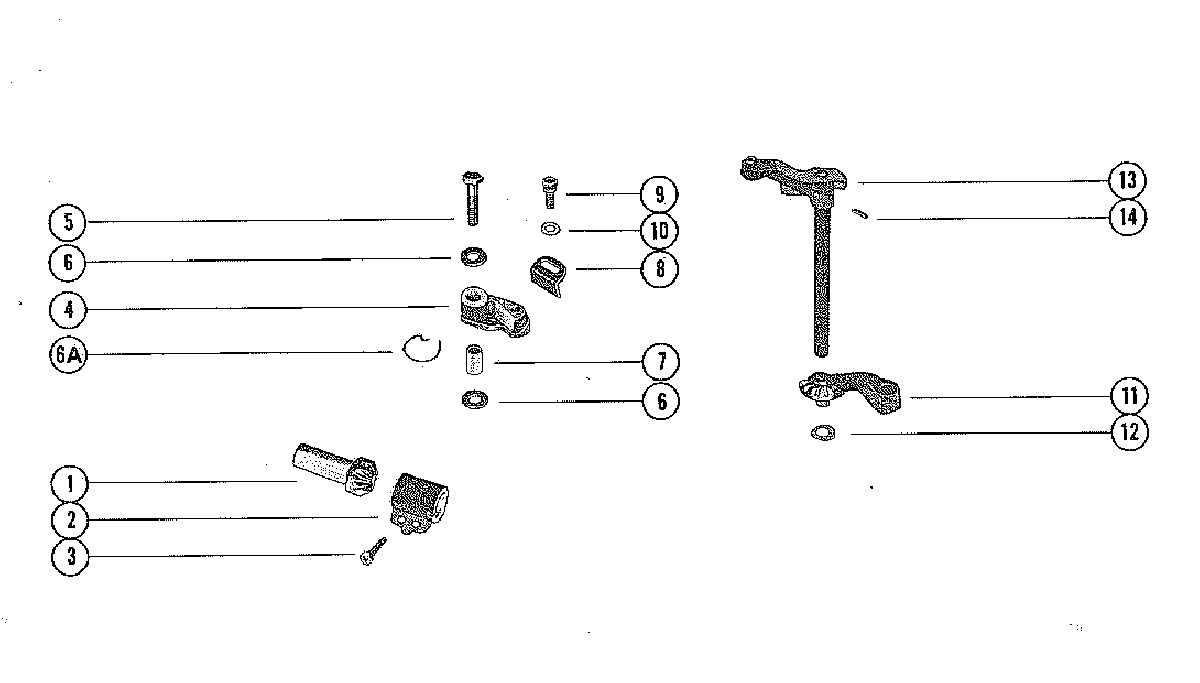

THROTTLE CONTROL LINKAGE для Mercury - 75 8051350 THRU 8058019
-
№АртикулНазвание
-
143-60856 GEAR, HORIZONTAL - THROTTLE CONTROL SOCKETGEAR, HORIZONTAL - THROTTLE CONTROL SOCKET
-
260885T HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
310-69069 SCREW
THROTTLE CONTROL HOUSING TO BOTTOM COWL (3/4")SCREW
THROTTLE CONTROL HOUSING TO BOTTOM COWL (3/4") -
463308A1 FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITERFOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER
-
510-20653 SCREW, LIMITER FOLLOWER TO BOTTOM COWL
(1 1/8")SCREW, LIMITER FOLLOWER TO BOTTOM COWL
(1 1/8") -
612-29245 WASHER, SPEED LIMITER FOLLOWER SCREWWASHER, SPEED LIMITER FOLLOWER SCREW
-
6A24-39042 SPRING, NEUTRAL SPEED LIMITER FOLLOWERSPRING, NEUTRAL SPEED LIMITER FOLLOWER
-
723-63320 BUSHING, SPEED LIMITER FOLLOWER SCREWBUSHING, SPEED LIMITER FOLLOWER SCREW
-
836017 STOP, NEUTRAL SPEED LIMITERSTOP, NEUTRAL SPEED LIMITER
-
910-28710 SCREW
NEUTRAL SPEED LIMITER SOTP TO FOLLOWER (5/8")SCREW
NEUTRAL SPEED LIMITER SOTP TO FOLLOWER (5/8") -
1012-24676 WASHER, NEUTRAL SPEED LIMITER STOP SCREWWASHER, NEUTRAL SPEED LIMITER STOP SCREW
-
1143-60858 GEAR, THROTTLE CONTROLGEAR, THROTTLE CONTROL
-
1215-64653A1 SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)SHIM ASSEMBLY, GEAR AND SHAFT (LOWER)
-
1366374A2 LEVER ASSEMBLY, THROTTLE CONTROLLEVER ASSEMBLY, THROTTLE CONTROL
-
1417-76207 PIN, ROLL
THROTTLE CONTROL LEVER TO CONTROL SHAFTPIN, ROLL
THROTTLE CONTROL LEVER TO CONTROL SHAFT
