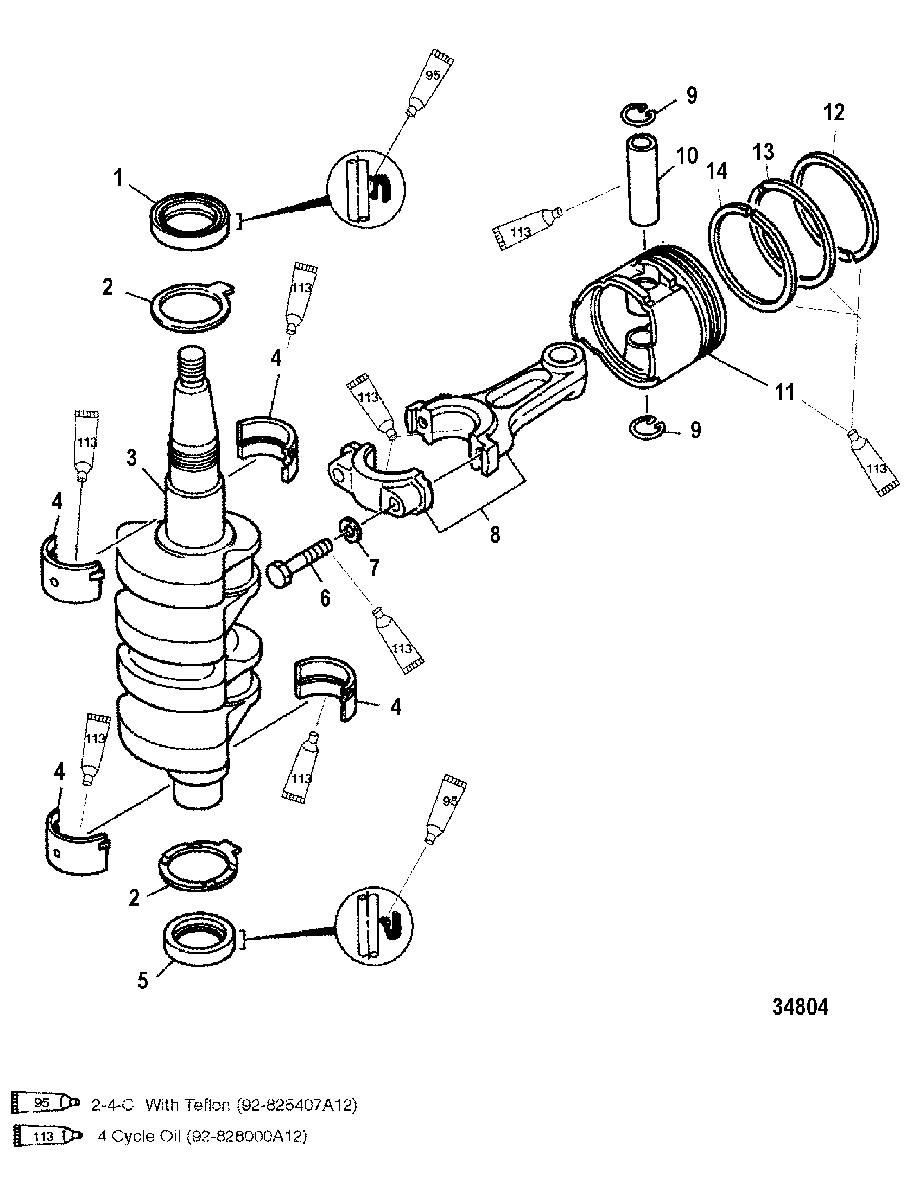

Crankshaft, Pistons and Connecting Rods для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265
-
№АртикулНазвание
-
126-825704 SEAL, OilSEAL, Oil
-
231-825710 BEARING, ThrustBEARING, Thrust
-
3400-825703 CRANKSHAFTCRANKSHAFT
-
431-825706T BEARING, Main (Brown)BEARING, Main (Brown)
-
431-825706T10 BEARING, Main (Black)BEARING, Main (Black)
-
431-825706T20 BEARING, Main (Blue)BEARING, Main (Blue)
-
526-825705 SEAL, OilSEAL, Oil
-
610-825708 BOLTBOLT
-
712-825709 WASHERWASHER
-
8600-825707A2 CONNECTING RODCONNECTING ROD
-
953-82343M CLIPCLIP
-
1041-825713 PIN, PistonPIN, Piston
-
11700-825711T PISTON
Standard - Bare PistonPISTON
Standard - Bare Piston -
11700-8257112 PISTON
.010 Oversize - Bare PistonPISTON
.010 Oversize - Bare Piston -
11700-825711T1 PISTON
.020 Oversize - Bare PistonPISTON
.020 Oversize - Bare Piston -
1239-825712T1 RING, Piston
StandardRING, Piston
Standard -
1239-8257123 RING, Piston
.010 OversizeRING, Piston
.010 Oversize -
1239-825712T2 RING, Piston
.020 OversizeRING, Piston
.020 Oversize -
13NSS NOT SOLD SEPARATE, Piston RingNOT SOLD SEPARATE, Piston Ring
-
14NSS NOT SOLD SEPARATE, Oil RingNOT SOLD SEPARATE, Oil Ring
-
-61-822775T7 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-825847A95 GASKET SETGASKET SET
