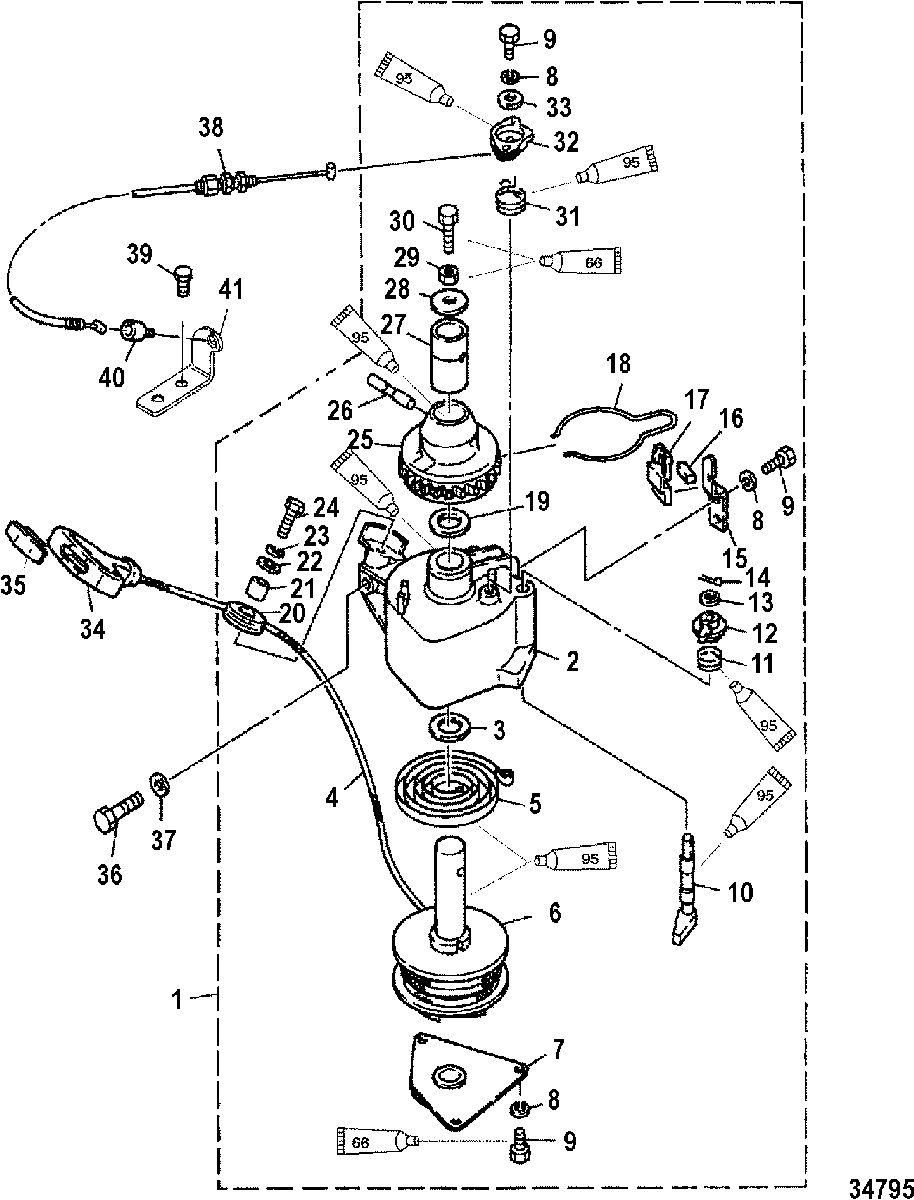

Starter Assembly, Manual для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265
-
№АртикулНазвание
-
1825635T1 STARTER ASSEMBLYSTARTER ASSEMBLY
-
2827444M HOUSINGHOUSING
-
312-827451M THRUST WASHERTHRUST WASHER
-
450-12066Q10 ROPEROPE
-
524-827446M SPRING, StarterSPRING, Starter
-
6827445M DRUM, SheaveDRUM, Sheave
-
7827459M COVER, Starter HousingCOVER, Starter Housing
-
813-82186M WASHERWASHER
-
910-82417M BOLTBOLT
-
10827453M STOPPERSTOPPER
-
1124-827456M SPRINGSPRING
-
12827457M LINKLINK
-
1312-82213M WASHERWASHER
-
1418-43089M COTTER PINCOTTER PIN
-
15827458M PLATE, DrivePLATE, Drive
-
16827461M DAMPERDAMPER
-
17827460M COVERCOVER
-
1824-827449M SPRING, Drive PlateSPRING, Drive Plate
-
1912-827447M THRUST WASHERTHRUST WASHER
-
2011704A1 PULLEY KITPULLEY KIT
-
2123-11705M BUSHINGBUSHING
-
2213-11706M LOCKWASHERLOCKWASHER
-
2313-82212M LOCKWASHERLOCKWASHER
-
2410-82405M BOLTBOLT
-
25827448M PULLEYPULLEY
-
2617-825527 PINPIN
-
2723-827450M BUSHINGBUSHING
-
2812-827462M WASHER, Drive PawlWASHER, Drive Pawl
-
2911-82383M NUTNUT
-
3010-825528 BOLTBOLT
-
3124-827455M SPRING, ReturnSPRING, Return
-
32827454M ARMARM
-
3312-827452M WASHERWASHER
-
3485174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
35NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
3610-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
3712-4002317 WASHERWASHER
-
38825650 CABLE, SteeringCABLE, Steering
-
3910-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
40825651 STAYSTAY
-
41825801 STAYSTAY
