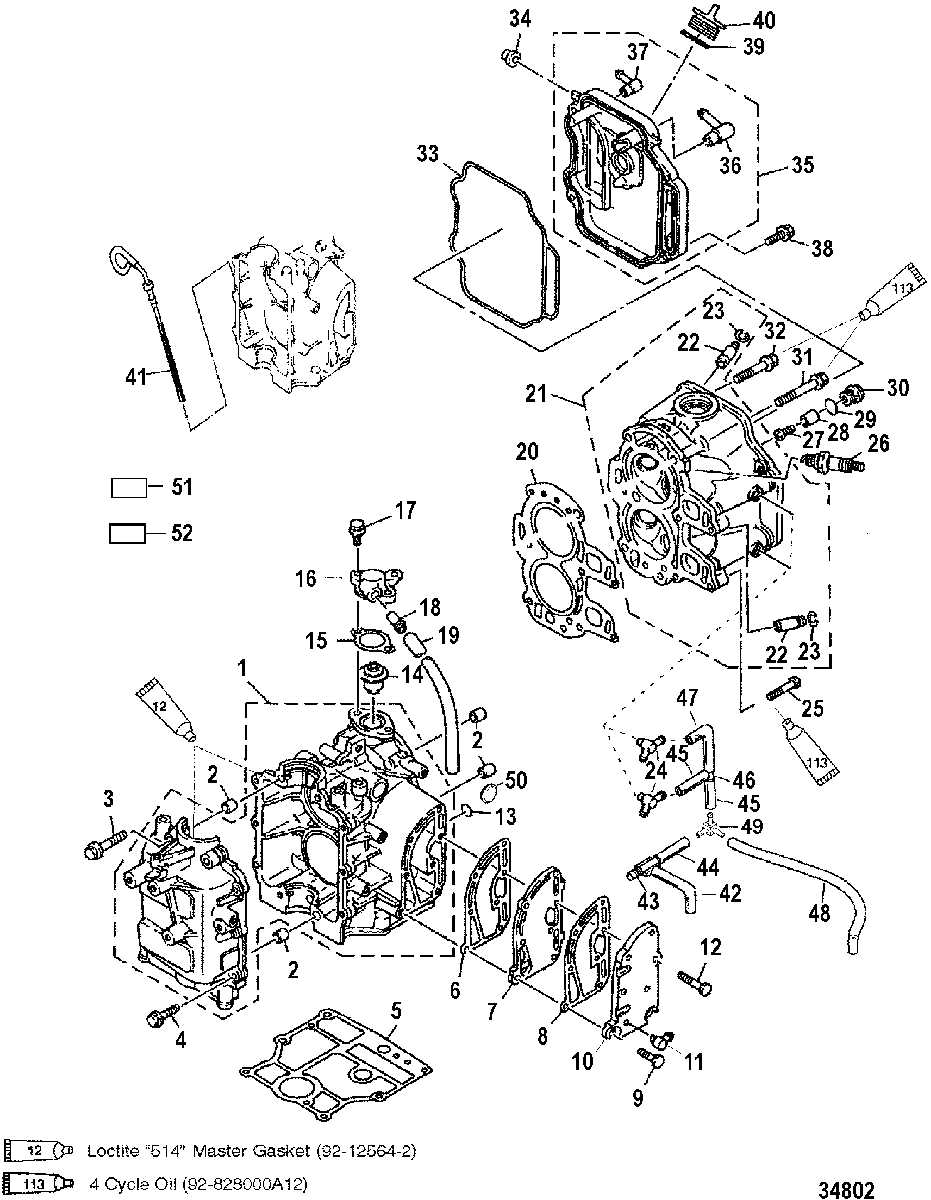

Cylinder Block and Crankcase для Mercury - 8 (BODENSEE) 4-STROKE (International) 0H017100 THRU 0H017265
-
№АртикулНазвание
-
1900-825688A1 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
217-825689 PIN, DowelPIN, Dowel
-
310-41885M BOLTBOLT
-
410-41837M BOLTBOLT
-
527-825847 GASKET, Cylinder BlockGASKET, Cylinder Block
-
627-825693 GASKET, Inner Exhaust CoverGASKET, Inner Exhaust Cover
-
7825692 COVER, Inner ExhaustCOVER, Inner Exhaust
-
827-825694 GASKET, Outer Exhaust CoverGASKET, Outer Exhaust Cover
-
910-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
10827736A1 COVER ASSEMBLY, Outer ExhaustCOVER ASSEMBLY, Outer Exhaust
-
1122-83326M FITTINGFITTING
-
1210-82500930 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
1325-825483 O-RINGO-RING
-
14825212A1 THERMOSTATTHERMOSTAT
-
1527-825701 GASKET, CoverGASKET, Cover
-
16825700 COVER, ThermostatCOVER, Thermostat
-
1710-8257021 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1822-8830591 PIPE JOINTPIPE JOINT
-
1932-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 16 InchesHOSE, (57.00 Inches Bulk), Cut to 16 Inches
-
2027-8254821 GASKET, Cylinder HeadGASKET, Cylinder Head
-
21900-825720A1 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
22825721 GUIDEGUIDE
-
2353-825038 CIRCLIPCIRCLIP
-
2422-83326M FITTINGFITTING
-
2510-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2633-827859 SPARK PLUGSPARK PLUG
-
27825437 PLUGPLUG
-
2825-825438 O-RINGO-RING
-
29825435 ANODEANODE
-
3010-825436 SCREWSCREW
-
3110-825480 BOLTBOLT
-
3210-825479 BOLTBOLT
-
33825488 SEALSEAL
-
3425-825485 GROMMETGROMMET
-
35825484 COVER, Cylinder HeadCOVER, Cylinder Head
-
36825486 PIPE, BreatherPIPE, Breather
-
3722-83326M FITTINGFITTING
-
3810-8257021 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3925-8M0052669 O-RINGO-RING
-
40859578A1 PLUGPLUG
-
4119-825795 DIPSTICKDIPSTICK
-
4232-826864 HOSEHOSE
-
4322-818993 CONNECTOR, TeeCONNECTOR, Tee
-
4432-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 2 InchesTUBING, (.312) (70.00 Inches Bulk), Cut to 2 Inches
-
4532-9912878 HOSE, (.187) (26.00 Inches Bulk), Cut to 1-1/2 InchesHOSE, (.187) (26.00 Inches Bulk), Cut to 1-1/2 Inches
-
4622-733181 TEETEE
-
4732-825434 HOSEHOSE
-
4832-826863 HOSEHOSE
-
49826861 FITTINGFITTING
-
50NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
51NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve ClearanceNOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
-
52NSS NOT SOLD SEPARATE, Decal-Bodensee CertificationNOT SOLD SEPARATE, Decal-Bodensee Certification
-
-61-822775T7 POWERHEAD ASSEMBLY
DOES NOT INCLUDE THE 8 BODENSEE OUTER EXHAUST COVERPOWERHEAD ASSEMBLY
DOES NOT INCLUDE THE 8 BODENSEE OUTER EXHAUST COVER -
-27-825847A95 GASKET SETGASKET SET
