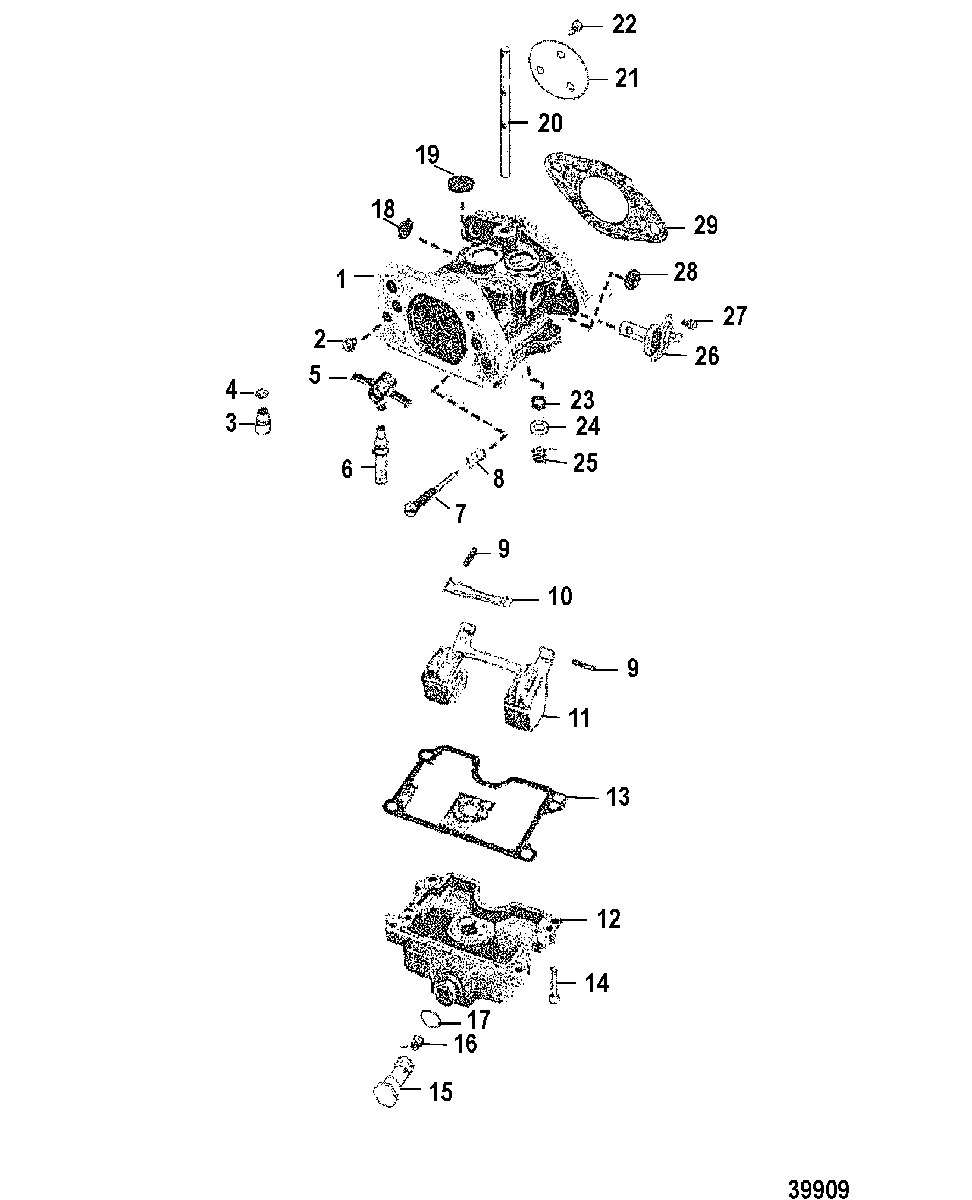

CARBURETOR ASSEMBLY для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 7146213 THRU 7208572
-
№АртикулНазвание
-
11379-6071A57 CARBURETOR ASSEMBLY (TOP)
STAMPED WM-12CARBURETOR ASSEMBLY (TOP)
STAMPED WM-12 -
11379-6071A58 CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-12CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-12 -
11379-6071A57 CARBURETOR ASSEMBLY (TOP)
STAMPED WM-14CARBURETOR ASSEMBLY (TOP)
STAMPED WM-14 -
11379-6071A58 CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-14CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-14 -
21395-6207 JET, (.072), VENT BOWL
(WM-10)JET, (.072), VENT BOWL
(WM-10) -
21395-5733 JET, Main (.092), VENT BOWL
(WM-12) (WM-14)JET, Main (.092), VENT BOWL
(WM-12) (WM-14) -
31395-83181 NEEDLE, InletNEEDLE, Inlet
-
4NSS NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEATNOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT
-
51395-6685 VENTURI ASSEMBLY
(WM-10)VENTURI ASSEMBLY
(WM-10) -
552106A1 VENTURI, Plastic
(WM-12) (WM-14)VENTURI, Plastic
(WM-12) (WM-14) -
6NSS NOT SOLD SEPARATE, NOZZLENOT SOLD SEPARATE, NOZZLE
-
7NSS NOT SOLD SEPARATE, IDLE NEEDLENOT SOLD SEPARATE, IDLE NEEDLE
-
8NSS NOT SOLD SEPARATE, SPRING, IDLE MIXTURENOT SOLD SEPARATE, SPRING, IDLE MIXTURE
-
9NSS NOT SOLD SEPARATE, FLOAT PINNOT SOLD SEPARATE, FLOAT PIN
-
10NSS NOT SOLD SEPARATE, FLOAT LEVERNOT SOLD SEPARATE, FLOAT LEVER
-
1119273 FLOATFLOAT
-
121395-6488 BOWL, FuelBOWL, Fuel
-
13NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
14NSS NOT SOLD SEPARATE, SCREW, FUEL BOWLNOT SOLD SEPARATE, SCREW, FUEL BOWL
-
151395-6199 PLUG, MAIN JETPLUG, MAIN JET
-
161395-6247 JET, Main (.090)
(WM-10)JET, Main (.090)
(WM-10) -
161399-3518 JET, (.082), MAIN
(WM-12) (WM-14)JET, (.082), MAIN
(WM-12) (WM-14) -
17NSS NOT SOLD SEPARATE, GASKET, MAIN JET PLUGNOT SOLD SEPARATE, GASKET, MAIN JET PLUG
-
18NSS NOT SOLD SEPARATE, SCREEN, FUEL INLETNOT SOLD SEPARATE, SCREEN, FUEL INLET
-
19NSS NOT SOLD SEPARATE, WELCH PLUG (9/16")NOT SOLD SEPARATE, WELCH PLUG (9/16")
-
201395-4807 SHAFT, Throttle (TOP)SHAFT, Throttle (TOP)
-
201395-7942 SHAFT, THROTTLE (BOTTOM)SHAFT, THROTTLE (BOTTOM)
-
211395-6196 VALVE, THROTTLE
(WM-10)VALVE, THROTTLE
(WM-10) -
211395-7639 VALVE, THROTTLE
(WM-12) (WM-14)VALVE, THROTTLE
(WM-12) (WM-14) -
22NSS NOT SOLD SEPARATE, SCREW, VALVE TO THROTTLE SHAFTNOT SOLD SEPARATE, SCREW, VALVE TO THROTTLE SHAFT
-
231395-6204 SEAL, THROTTLE SHAFTSEAL, THROTTLE SHAFT
-
241395-6203 WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
25NSS NOT SOLD SEPARATE, SPRING, THROTTLE RETURNNOT SOLD SEPARATE, SPRING, THROTTLE RETURN
-
261395-6198 VALVE ASSEMBLY, ENRICHMENTVALVE ASSEMBLY, ENRICHMENT
-
27NSS NOT SOLD SEPARATE, SCREW, ENRICHMENT BRACKETNOT SOLD SEPARATE, SCREW, ENRICHMENT BRACKET
-
28NSS NOT SOLD SEPARATE, WELCH PLUG (7/16")NOT SOLD SEPARATE, WELCH PLUG (7/16")
-
2927-733771 GASKET, CARBURETORGASKET, CARBURETOR
-
-1395-6200 GASKET KITGASKET KIT
-
-812953 REPAIR PARTS KIT
(WM-10)REPAIR PARTS KIT
(WM-10) -
-812953 REPAIR PARTS KIT
(WM-12)REPAIR PARTS KIT
(WM-12) -
-812953 REPAIR PARTS KIT
(WM-14)REPAIR PARTS KIT
(WM-14) -
-27-73645A87 GASKET SETGASKET SET
