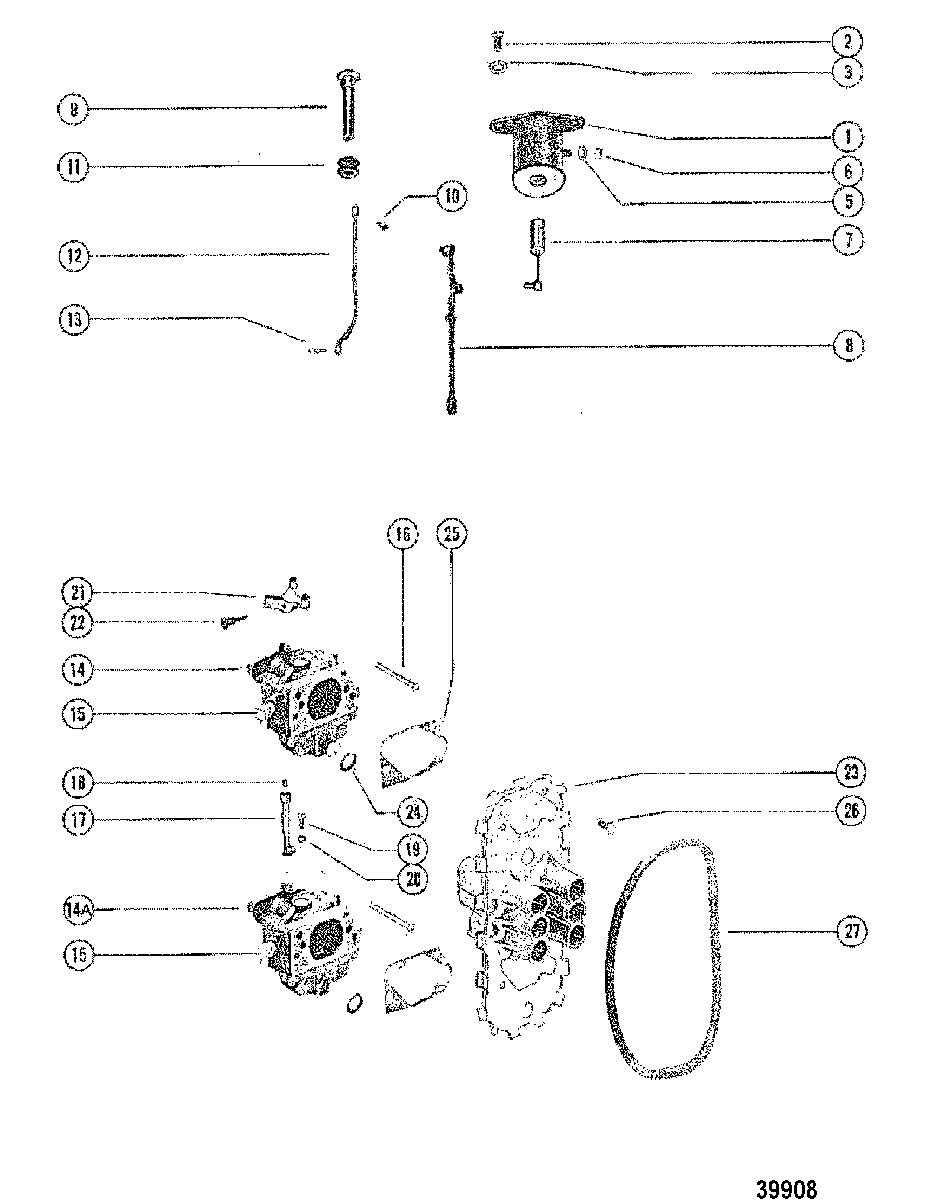

CARBURETOR LINKAGE для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 7146213 THRU 7208572
-
№АртикулНазвание
-
154293A10 SOLENOID ASSEMBLY, ChokeSOLENOID ASSEMBLY, Choke
-
210-824941 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
313-26993 LOCKWASHER, (.312), CHOKE SOLENOID SCREWLOCKWASHER, (.312), CHOKE SOLENOID SCREW
-
513-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINALLOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
-
611-68219 NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINALNUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
-
789008A2 PLUNGER ASSEMBLYPLUNGER ASSEMBLY
-
873400 ROD, ChokeROD, Choke
-
990242A1 KNOB ASSEMBLYKNOB ASSEMBLY
-
1010-77137 SCREW, (.190-16 x .620), WIRE TO CHOKE KNOBSCREW, (.190-16 x .620), WIRE TO CHOKE KNOB
-
1125-20116 GROMMET, CHOKE KNOBGROMMET, CHOKE KNOB
-
1284-74263 WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)
-
1310-62568 SCREW, (#10-16 x .375), WIRE TO CHOKE RODSCREW, (#10-16 x .375), WIRE TO CHOKE ROD
-
141379-6071A57 CARBURETOR ASSEMBLY (TOP)
STAMPED WM-12CARBURETOR ASSEMBLY (TOP)
STAMPED WM-12 -
141379-6071A57 CARBURETOR ASSEMBLY (TOP)
STAMPED WM-14CARBURETOR ASSEMBLY (TOP)
STAMPED WM-14 -
14A1379-6071A58 CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-12CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-12 -
14A1379-6071A58 CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-14CARBURETOR ASSEMBLY (BOTTOM)
STAMPED WM-14 -
1522-19688 FITTING, CARBURETORFITTING, CARBURETOR
-
1610-52743 SCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASESCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASE
-
1753720A2 COUPLING ASSEMBLY, LOWER CARBURETORCOUPLING ASSEMBLY, LOWER CARBURETOR
-
1828-89694 KEY, COUPLINGKEY, COUPLING
-
1910-66104 SCREW, (#8-32 x .790), COUPLING TO CARBURETORSCREW, (#8-32 x .790), COUPLING TO CARBURETOR
-
2012-74726 WASHER, COUPLING SCREWWASHER, COUPLING SCREW
-
2173847 ACTUATOR, THROTTLE (UPPER CARBURETOR)ACTUATOR, THROTTLE (UPPER CARBURETOR)
-
2210-60293 SCREW, (#5-40 x .500), ACTUATOR TO UPPER CARBURETORSCREW, (#5-40 x .500), ACTUATOR TO UPPER CARBURETOR
-
2373408 PLATE, CARBURETORPLATE, CARBURETOR
-
2427-73398 GASKET, CARBURETOR PLATEGASKET, CARBURETOR PLATE
-
2527-76952 GASKET, CARBURETOR PLATE TO CARBURETORGASKET, CARBURETOR PLATE TO CARBURETOR
-
2610-28635 SCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETORSCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETOR
-
2773647 SEAL, CARBURETOR PLATESEAL, CARBURETOR PLATE
-
-27-73645A87 GASKET SETGASKET SET
