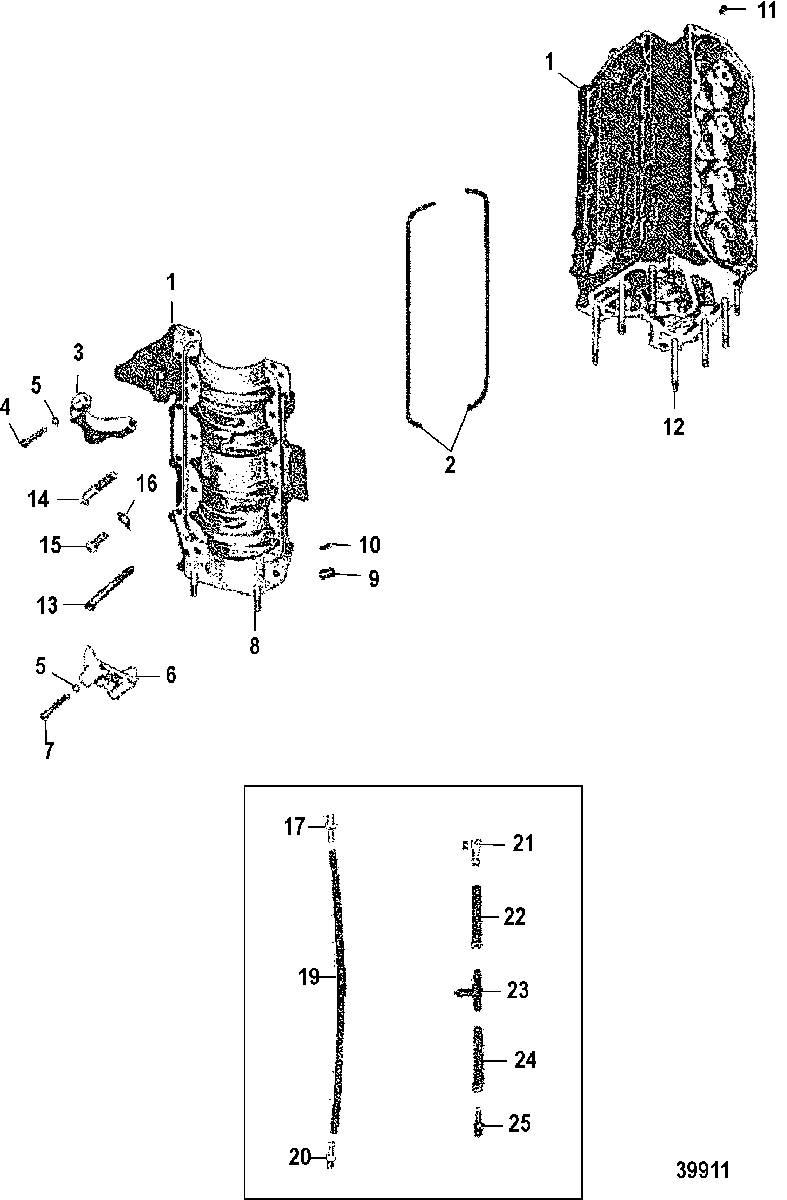

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 7146213 THRU 7208572
-
№АртикулНазвание
-
1871-8338A3 CYLINDER BLOCK ASSEMBLY
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & BelowCYLINDER BLOCK ASSEMBLY
SN# USA-6030903/Australia-8074612/Belgium-9345615/Canada-7189007 & Below -
1871-8338A3 CYLINDER BLOCK ASSEMBLY
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & UpCYLINDER BLOCK ASSEMBLY
SN# USA-6030904/Australia-8074613/Belgium-9345616/Canada-7189008 & Up -
227-53650 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
356029T COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
410-31984 SCREW, (.312-18 x 1.375), COVER TO CRANKCASESCREW, (.312-18 x 1.375), COVER TO CRANKCASE
-
410-35385 SCREW, (.312-18 x 1-3/4), COVER TO CRANKCASESCREW, (.312-18 x 1-3/4), COVER TO CRANKCASE
-
513-26993 LOCKWASHER, (.312), COVER SCREWLOCKWASHER, (.312), COVER SCREW
-
676867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
710-73279 SCREW, COVER TO CRANKCASE (1-7/8")SCREW, COVER TO CRANKCASE (1-7/8")
-
710-73658 SCREW, COVER TO CRANKCASE (5-1/2")SCREW, COVER TO CRANKCASE (5-1/2")
-
816-64281 STUD, (.375-16/.375-24 x 1.880)STUD, (.375-16/.375-24 x 1.880)
-
917-43044 PIN, Dowel, CRANKCASE TO CYLINDER BLOCKPIN, Dowel, CRANKCASE TO CYLINDER BLOCK
-
1017-63779 PIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARINGPIN, Dowel (.250 x .625), CYLINDER BLOCK TO MAIN BEARING
-
1166517 RESTRICTOR, CRANKCASE BLEEDRESTRICTOR, CRANKCASE BLEED
-
1216-64282 STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")STUD, (4 In.), CYLINDER BLOCK TO EXHAUST PLATE (4")
-
1310-57841 SCREW, (.312-18 x 2.750), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 2.750), CRANKCASE TO CYLINDER BLOCK
-
1310-74824 SCREW, (1.25), CRANKCASE TO CYLINDER BLOCK (1-1/4")SCREW, (1.25), CRANKCASE TO CYLINDER BLOCK (1-1/4")
-
1410-73657 SCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.50), CRANKCASE TO CYLINDER BLOCK
-
1510-20359 SCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKINGSCREW, (.375-16 x 1.00), CENTER MAIN BEARING LOCKING
-
1614-20091 TAB WASHER, BEARING LOCKING SCREWTAB WASHER, BEARING LOCKING SCREW
-
1721-42866 CHECK VALVE, BLEED HOSE - TOPCHECK VALVE, BLEED HOSE - TOP
-
1932-9938779 HOSE, CYLINDER BLEED (15-1/2")HOSE, CYLINDER BLEED (15-1/2")
-
2021-428671 FITTING ASSEMBLY, BLEED HOSE - BOTTOMFITTING ASSEMBLY, BLEED HOSE - BOTTOM
-
2122-996642 ELBOWELBOW
-
2232-8M0108355 HOSE, BALANCE (6-1/4")HOSE, BALANCE (6-1/4")
-
2322-130342 FITTING, BALANCE HOSE TO CYLINDER BLOCK - LOWERFITTING, BALANCE HOSE TO CYLINDER BLOCK - LOWER
-
2432-9938779 HOSE, BALANCE (5")HOSE, BALANCE (5")
-
2522-56759 CONNECTOR, AIR INLET COVERCONNECTOR, AIR INLET COVER
-
-27-73645A87 GASKET SETGASKET SET
-
-97471T87 POWERHEADPOWERHEAD
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE
- CLAMP BRACKET AND REVERSE LOCK(SHORT SHAFT)
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD
- • CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- END CAPS, MANIFOLD AND EXHAUST COVER
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE)
- POWER TRIM COMPONENTS(WITHOUT CIRCUIT BREAKER AND FUSE)
- POWER TRIM CYLINDER REPAIR KITS(USE WITH 76509A3)
- POWER TRIM CYLINDER REPAIR KITS, Use with 92194A14
- PROPELLERS(RIGHT HAND ROTATION)
- STARTER MOTOR AND WIRING HARNESS
- STARTER MOTOR ASSEMBLY(BOSCH)
- STARTER MOTOR ASSEMBLY(PRESTOLITE)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND SPARK ADVANCE LEVER
- TOP COWL AND SUPPORT BRACKETS
- TRANSOM BRACKET(LONG SHAFT)
- TRIM CYLINDERS AND HYDRAULIC HOSES
