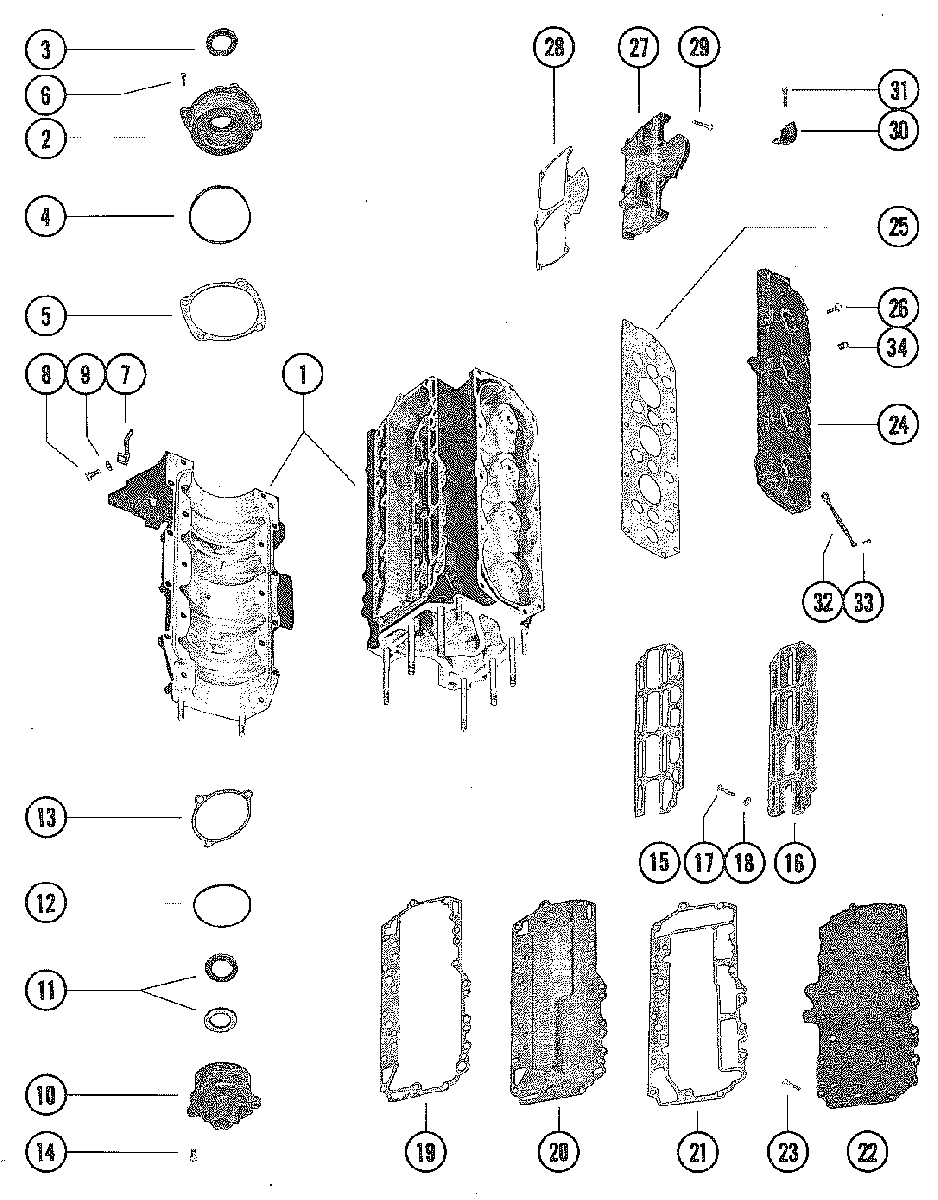

END CAPS, MANIFOLD AND EXHAUST COVER для Mercury - 800 (4 CYL.), 80 (4 CYL.) 7110998 THRU 7146212
-
№АртикулНазвание
-
1871-8338A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
21161-5940A2 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
326-41953 OIL SEALOIL SEAL
-
425-47254 "O" RING"O" RING
-
515-73644A1 SHIM ASSEMBLY
END CAP TO CRANKCASE (.006-8-10)SHIM ASSEMBLY
END CAP TO CRANKCASE (.006-8-10) -
610-812618 SCREW, END CAP MOUNTING (1")SCREW, END CAP MOUNTING (1")
-
743352 POINTER, TIMINGPOINTER, TIMING
-
810-65746 SCREW, TIMING POINTER ATTACHING (3/4")SCREW, TIMING POINTER ATTACHING (3/4")
-
912-20533 WASHER, TIMING POINTER SCREWWASHER, TIMING POINTER SCREW
-
101148-5410T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
1126-41953 OIL SEALOIL SEAL
-
1225-32546 "O" RING"O" RING
-
1315-20085A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)SHIM, END CAP TO CRANKCASE (.002-3-5-10)
-
1410-30225 SCREW, END CAP MOUNTING (1")SCREW, END CAP MOUNTING (1")
-
1527-73665 GASKET, WATER JACKET COVERGASKET, WATER JACKET COVER
-
1676198 COVER, WATER JACKET - CYLINDER BLOCKCOVER, WATER JACKET - CYLINDER BLOCK
-
1710-53167T SCREW
WATER JACKET COVER TO CYLINDER BLOCK (7/8')SCREW
WATER JACKET COVER TO CYLINDER BLOCK (7/8') -
1812-8M0042642 WASHER
WATER JACKET COVER FASTENING SCREWWASHER
WATER JACKET COVER FASTENING SCREW -
1927-854981 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2073436 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
2127-854961 GASKET
BAFFLE PLATE TO EXHAUST MANIFOLD COVERGASKET
BAFFLE PLATE TO EXHAUST MANIFOLD COVER -
2278277A1 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2310-53576 SCREW, MANIFOLD COVER MOUNTING (1 1/8")SCREW, MANIFOLD COVER MOUNTING (1 1/8")
-
241021-7699 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
2527-85493 GASKET, CYLNDER BLOCK COVERGASKET, CYLNDER BLOCK COVER
-
2610-76630 SCREW, CYLINDER BLOCK COVER MOUNTING (1")SCREW, CYLINDER BLOCK COVER MOUNTING (1")
-
27733201 COVER, TRANSFER PORT - TOPCOVER, TRANSFER PORT - TOP
-
2787872 COVER, TRANSFER PORT - BOTTOMCOVER, TRANSFER PORT - BOTTOM
-
2827-73645 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
2910-49668 SCREW, TRANSFER PORT COVER MOUNTING (3/4")SCREW, TRANSFER PORT COVER MOUNTING (3/4")
-
3037440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCKBRACKET, MOUNT SUPPORT - CYLINDER BLOCK
-
3110-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")SCREW, BRACKET TO CYLINDER BLOCK (1")
-
3246933A3 GROUND STRAP ASSEMBLY
EXHAUST COVER SCREWGROUND STRAP ASSEMBLY
EXHAUST COVER SCREW -
3310-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
3422-68307 PLUG, PIPE - CYLINDER BLOCK COVERPLUG, PIPE - CYLINDER BLOCK COVER
-
--27-73645A87 GASKET SETGASKET SET
