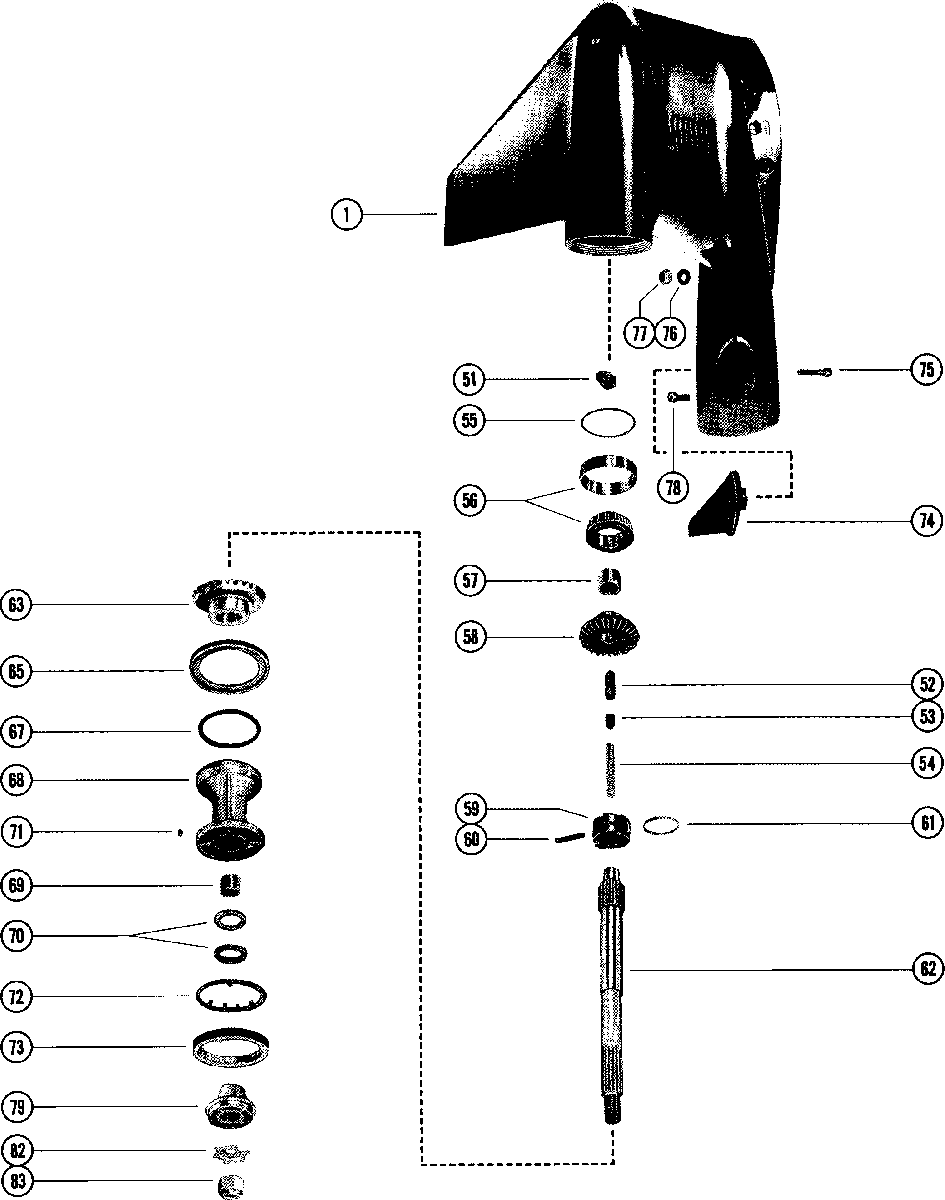

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 800 (4 CYL.), 80 (4 CYL.) 7110998 THRU 7146212
-
№АртикулНазвание
-
-1655-7333A27 GEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141096 AND BELOW AUSTRALIA 8056519 AND BELOW
BELGIUM 9207925 AND BELOW
CANADA 7122587 AND BELOWGEAR HOUSING ASS'Y, COMP.(SHORT SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141096 AND BELOW AUSTRALIA 8056519 AND BELOW
BELGIUM 9207925 AND BELOW
CANADA 7122587 AND BELOW -
-1655-7333A25 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141096 AND BELOW
AUSTRALIA 8056519 AND BELOW
BELGIUM 9207925 AND BELOW
CANADA 7122587 AND BELOWGEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141096 AND BELOW
AUSTRALIA 8056519 AND BELOW
BELGIUM 9207925 AND BELOW
CANADA 7122587 AND BELOW -
-1655-7333A27 GEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141097 AND UP
AUSTRALIA 8056520 AND UP
BELGIUM 9207928 AND UP
CANADA 7122588 ANDUPGEAR HOUSING ASS'Y, COMP. (SHORT SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141097 AND UP
AUSTRALIA 8056520 AND UP
BELGIUM 9207928 AND UP
CANADA 7122588 ANDUP -
-1655-7333A25 GEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141097 AND UP
AUSTRALIA 8056520 AND UP
BELGIUM 9207928 AND UP
CANADA 7122588 ANDUPGEAR HOUSING ASS'Y, COMP. (LONG SHAFT)
THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #75 AS LISTED ON C10 AND C12
UNITED STATES 5141097 AND UP
AUSTRALIA 8056520 AND UP
BELGIUM 9207928 AND UP
CANADA 7122588 ANDUP -
11655-7333T23 GEAR HOUSING ASS'Y
UNITED STATES 5141096 AND BELOW
AUSTRALIA 8056519 AND BELOW
BELGIUM 9207925 AND BELOW
CANADA 7122587 AND BELOWGEAR HOUSING ASS'Y
UNITED STATES 5141096 AND BELOW
AUSTRALIA 8056519 AND BELOW
BELGIUM 9207925 AND BELOW
CANADA 7122587 AND BELOW -
11655-7333T23 GEAR HOUSING ASS'Y
UNITED STATES 5141097 AND UP
AUSTRALIA 8056520 AND UP
BELGIUM 9207928 AND UP
CANADA 7122588 ANDUPGEAR HOUSING ASS'Y
UNITED STATES 5141097 AND UP
AUSTRALIA 8056520 AND UP
BELGIUM 9207928 AND UP
CANADA 7122588 ANDUP -
51760394 CAM, SHIFTCAM, SHIFT
-
5230625 FOLLOWER, CAMFOLLOWER, CAM
-
5330624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5424-30622 SPRING, COMPRESSION-CAM FOLLOWERSPRING, COMPRESSION-CAM FOLLOWER
-
5515-30923A1 SHIM
BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)SHIM
BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10) -
5631-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5731-30895T BEARING, ROLLER-FORWARD GEARBEARING, ROLLER-FORWARD GEAR
-
5843-75314T2 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5952-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6017-8M0100263 PIN, CROSS-RATCHET TO PROPELLER SHAFTPIN, CROSS-RATCHET TO PROPELLER SHAFT
-
6124-30893 SPRING, RETAINING-CROSS PINSPRING, RETAINING-CROSS PIN
-
6244-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6343-77562T REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6512-76358 WASHER
THRUST-BEARING CARRIER TO GEAR HOUSINGWASHER
THRUST-BEARING CARRIER TO GEAR HOUSING -
6725-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6841529T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6931-30956T BEARING, ROLLER-BEARING CARRIERBEARING, ROLLER-BEARING CARRIER
-
7026-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7128-30281 KEY,LOCATING-BEARING CARRIERKEY,LOCATING-BEARING CARRIER
-
7214-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7352699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7497-31640Q4 TROM TAB, GEAR HOUSINGTROM TAB, GEAR HOUSING
-
7510-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7612-45176 WASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7711-34933 NUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7810-65210 SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1") -
7913191Q01 THRUST HUBTHRUST HUB
-
8214-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8311-52707Q1 NUT, PROPELLERNUT, PROPELLER
-
--27-73645A87 GASKET SETGASKET SET
