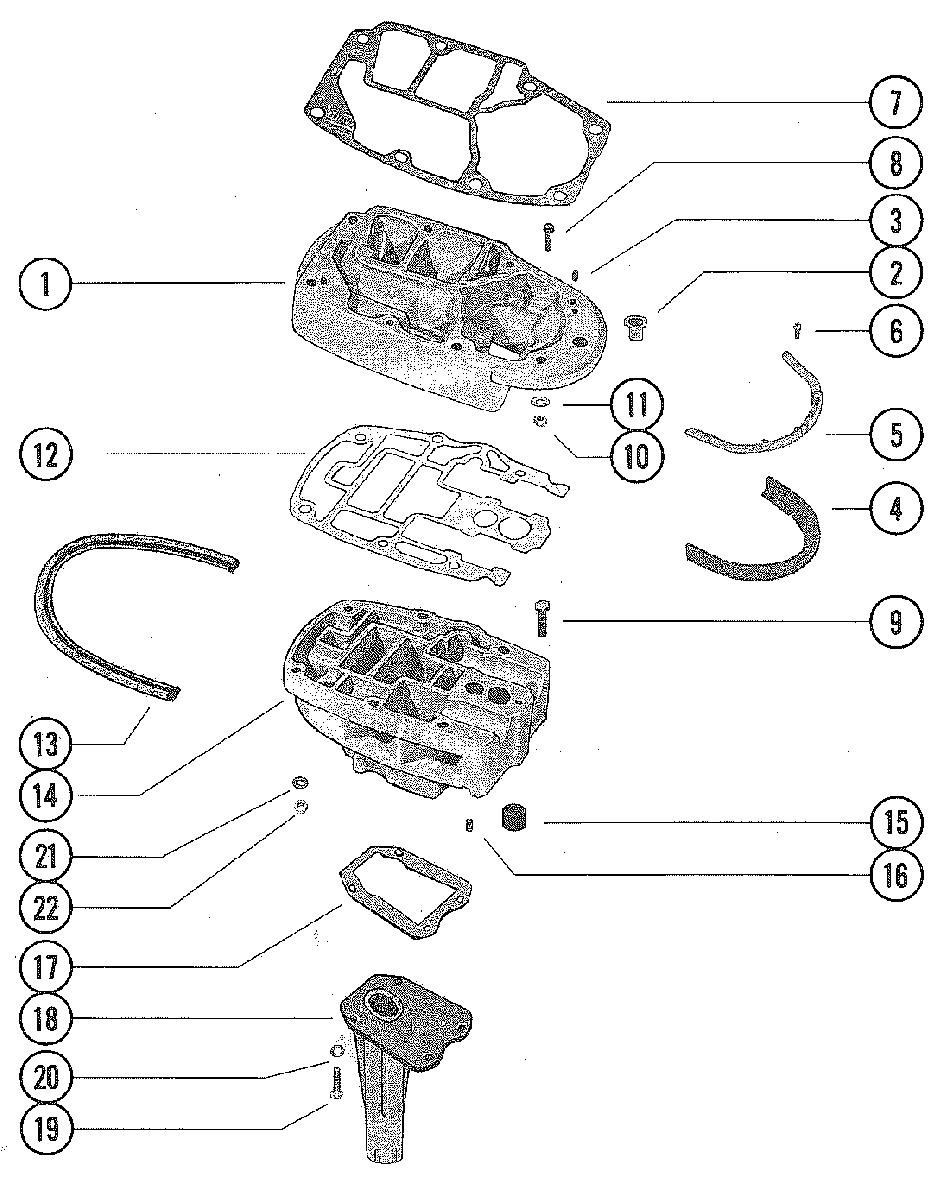

EXHAUST EXTENSION PLATE для Mercury - 800 (4 CYL.), 80 (4 CYL.) 7110998 THRU 7146212
-
№АртикулНазвание
-
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSIONPLATE ASSEMBLY, EXHAUST EXTENSION
-
223-27132 BUSHING, NYLONG - EXHAUSST EXTENSION PLATEBUSHING, NYLONG - EXHAUSST EXTENSION PLATE
-
317-23784 DOWEL PIN, EXHAUST EXTENSION PLATEDOWEL PIN, EXHAUST EXTENSION PLATE
-
437918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
599358 STRIP, RETAINING - EXHAUST EXTENSION PLATESTRIP, RETAINING - EXHAUST EXTENSION PLATE
-
610-37571 SCREW
SEAL AND RETAINING STRIP TO EXH. PLATE (1/2")SCREW
SEAL AND RETAINING STRIP TO EXH. PLATE (1/2") -
727-692381 GASKET
POWERHEAD TO EXHAUST EXTENSION PLATEGASKET
POWERHEAD TO EXHAUST EXTENSION PLATE -
810-66023 SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
-
910-66023 SCREW
HOUSING PLATE TO DRIVE SHAFT HOUSING (2")SCREW
HOUSING PLATE TO DRIVE SHAFT HOUSING (2") -
1011-69254 NUT
CRANKCASE STUDS TO EXHAUST EXTENSION PLATENUT
CRANKCASE STUDS TO EXHAUST EXTENSION PLATE -
1112-20553 WASHER
CRANKCASE STUDS TO EXHAUST EXTENSION PLATEWASHER
CRANKCASE STUDS TO EXHAUST EXTENSION PLATE -
1227-661021 GASKET, PLATE TO DRIVE SHAFT H SG. PLATEGASKET, PLATE TO DRIVE SHAFT H SG. PLATE
-
1326-60898 SEAL, DRIVE SHAFT HOUSING PLATESEAL, DRIVE SHAFT HOUSING PLATE
-
1443290A4 PLATE ASSEMBLY, DRIVE SHAFT HOUSINGPLATE ASSEMBLY, DRIVE SHAFT HOUSING
-
1526-38970 SEAL, RUBBER
WATER INLET TUBE (DRIVE SHAFT HSG. PLATE)SEAL, RUBBER
WATER INLET TUBE (DRIVE SHAFT HSG. PLATE) -
1617-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATEDOWEL PIN, DRIVE SHAFT HOUSING PLATE
-
1727-69860 GASKET
DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBEGASKET
DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBE -
1899698 EXHAUST TUBEEXHAUST TUBE
-
1910-65414 SCREW
EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")SCREW
EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4") -
2013-26992 LOCKWASHER, EXHAUST TUBE SCREWLOCKWASHER, EXHAUST TUBE SCREW
-
2112-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2211-82671013 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
--27-73645A87 GASKET SETGASKET SET
