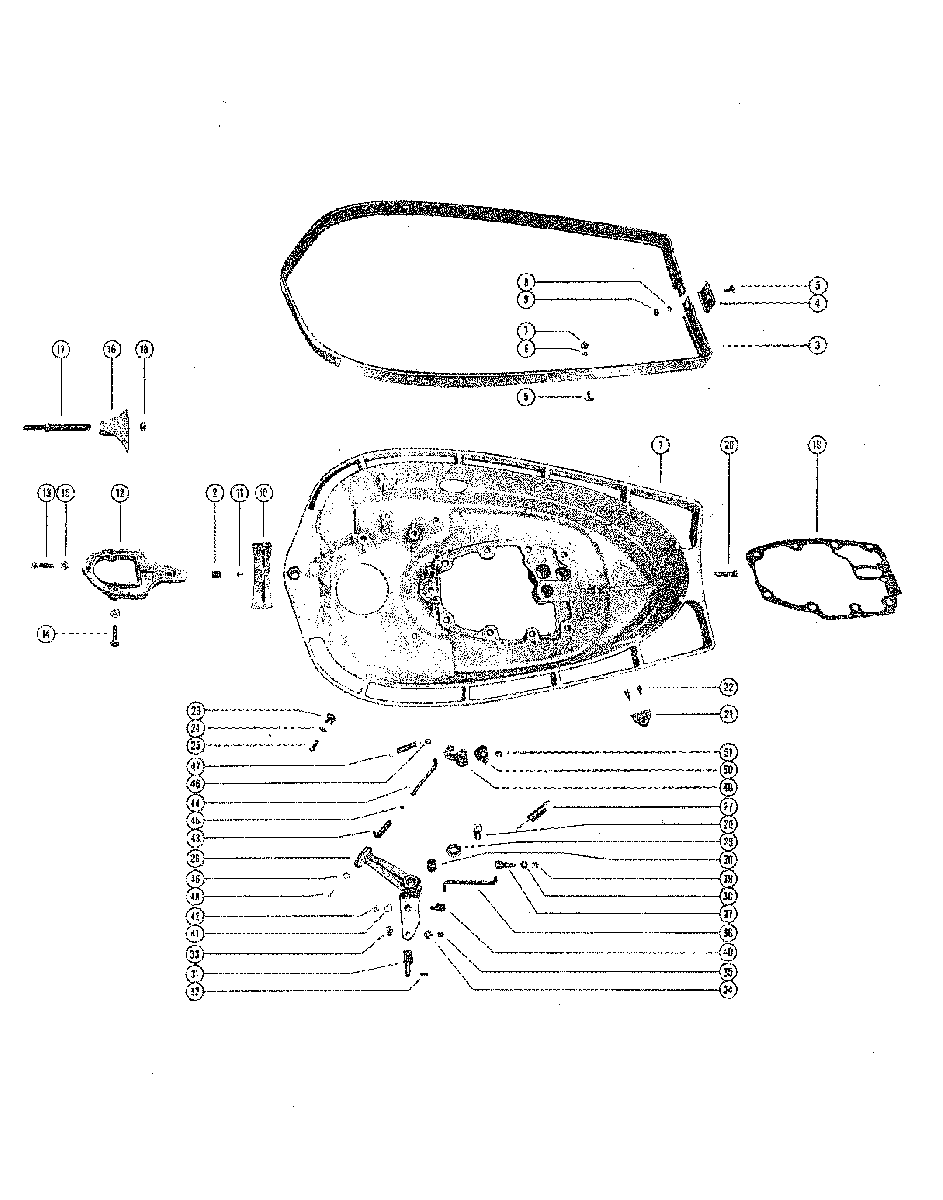

BOTTOM COWL ASSEMBLY для Mercury - 800 (6 CYL.) 1335465 THRU 1398629
-
№АртикулНазвание
-
1183-1681A2 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
221041 INSERT, TAP-LOCKINSERT, TAP-LOCK
-
329997A1 TRIM MOULDING ASSEMBLYTRIM MOULDING ASSEMBLY
-
429998 SPLICER, TRIM MOULDING - REARSPLICER, TRIM MOULDING - REAR
-
510-29226 SCREW, DECORATIVE - MOULDING TO BOTTOM COWLSCREW, DECORATIVE - MOULDING TO BOTTOM COWL
-
612-24671 WASHER, FIBRE - MOULDING FASTENING SCREWWASHER, FIBRE - MOULDING FASTENING SCREW
-
711-29225 NUT, NYLON CAP - MOULDING FASTENING SCREWNUT, NYLON CAP - MOULDING FASTENING SCREW
-
813-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
911-26419 NUT, BRASS - MOULDING FASTENING SCREWNUT, BRASS - MOULDING FASTENING SCREW
-
1030005 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
1110-21106 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
1227971 BRACKET, RECTIFIER MOUNTINGBRACKET, RECTIFIER MOUNTING
-
1310-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")SCREW, BRACKET TO BOTTOM COWL (1 1/8")
-
1410-56500 SCREW, BRACKET TO BOTTOM COWL (1 1/4")SCREW, BRACKET TO BOTTOM COWL (1 1/4")
-
1511-20184 NUT, RECTIFIER BRACKET MOUNTING SCREWNUT, RECTIFIER BRACKET MOUNTING SCREW
-
1630003 BRACKET, PIVOT PIN TO BOTTOM COWLBRACKET, PIVOT PIN TO BOTTOM COWL
-
1717-30004 PIN, PIVOT - BOTTOM COWLPIN, PIVOT - BOTTOM COWL
-
1811-20696 NUT, PIVOT PIN FASTENINGNUT, PIVOT PIN FASTENING
-
1927-29914 GASKET, POWERHEAD TO BOTTOM COWLGASKET, POWERHEAD TO BOTTOM COWL
-
2010-21504 SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSINGSCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
2120557 BRACKET, CABLE END ANCHORBRACKET, CABLE END ANCHOR
-
2210-29200 SCREW, ANCHOR BRACKET TO BOTTOM COWLSCREW, ANCHOR BRACKET TO BOTTOM COWL
-
2321968 STOP BLOCK, THROTTLE ADJUSTINGSTOP BLOCK, THROTTLE ADJUSTING
-
2412-21967 WASHER, STOP BLOCK SCREWWASHER, STOP BLOCK SCREW
-
2510-28636 SCREW, STOP BLOCK HOLDINGSCREW, STOP BLOCK HOLDING
-
2629890 LEVER, CONTROLLEVER, CONTROL
-
2724-29109 SPRING, TENSION - CONTROL LEVER TO VERTICAL SHAFTSPRING, TENSION - CONTROL LEVER TO VERTICAL SHAFT
-
2810-37612 SCREW, CONTROL LEVER TO BOTTOM COWLSCREW, CONTROL LEVER TO BOTTOM COWL
-
2912-8M0042641 WASHER, CONTROL LEVER SCREWWASHER, CONTROL LEVER SCREW
-
3023-29529 BUSHING, STEEL - CONTROL LEVERBUSHING, STEEL - CONTROL LEVER
-
3117-30978A1 PIN ASSEMBLY - CLEVIS YOKEPIN ASSEMBLY - CLEVIS YOKE
-
3217-239281 PIN, ROLL - CLEVIS YOKE PINPIN, ROLL - CLEVIS YOKE PIN
-
3310-20584 SCREW, CLEVIS PIN TO CONTROL LEVFERSCREW, CLEVIS PIN TO CONTROL LEVFER
-
3413-29402 WASHER, WAVE - CLEVIS PIN SCREWWASHER, WAVE - CLEVIS PIN SCREW
-
3511-826709106 NUT, CLEVIS PIN SCREWNUT, CLEVIS PIN SCREW
-
3626591 LINK, CONTROL LEVER TO VERTICAL LEVERLINK, CONTROL LEVER TO VERTICAL LEVER
-
3726590 SWIVEL, VERTICAL LEVERSWIVEL, VERTICAL LEVER
-
3813-21067 WASHER, WAVE - VERTICAL LEVER SWIVELWASHER, WAVE - VERTICAL LEVER SWIVEL
-
3911-20110 NUT, SWIVEL TO VERTICAL LEVERNUT, SWIVEL TO VERTICAL LEVER
-
4027948 SWIVEL, CONTROL LEVERSWIVEL, CONTROL LEVER
-
4112-29245 WASHER, CONTROL LEVER SWIVELWASHER, CONTROL LEVER SWIVEL
-
4211-8267089 NUT, SWIVEL TO CONTROL LEVERNUT, SWIVEL TO CONTROL LEVER
-
4326589A1 LINK ROD ASSEMBLY - CONTROL LEVER ENDLINK ROD ASSEMBLY - CONTROL LEVER END
-
4426588 ROD, LINK - DRIVE CAMROD, LINK - DRIVE CAM
-
4511-25168 NUT, LINK ROD ADJUSTINGNUT, LINK ROD ADJUSTING
-
4612-20533 WASHER, LINK ROD ENDWASHER, LINK ROD END
-
4724-24826 SPRING, TENSION - LINK ROD TO BOTTOM COWLSPRING, TENSION - LINK ROD TO BOTTOM COWL
-
4818-210711 COTTER PIN, LINK ROD TO CONTROL LEVERCOTTER PIN, LINK ROD TO CONTROL LEVER
-
4929481 CAM, DRIVE - TILTLOCKCAM, DRIVE - TILTLOCK
-
5029482 CAM, TOP - TILTLOCKCAM, TOP - TILTLOCK
-
5111-862902 NUT, CAM FASTENING - PUSH RODNUT, CAM FASTENING - PUSH ROD
