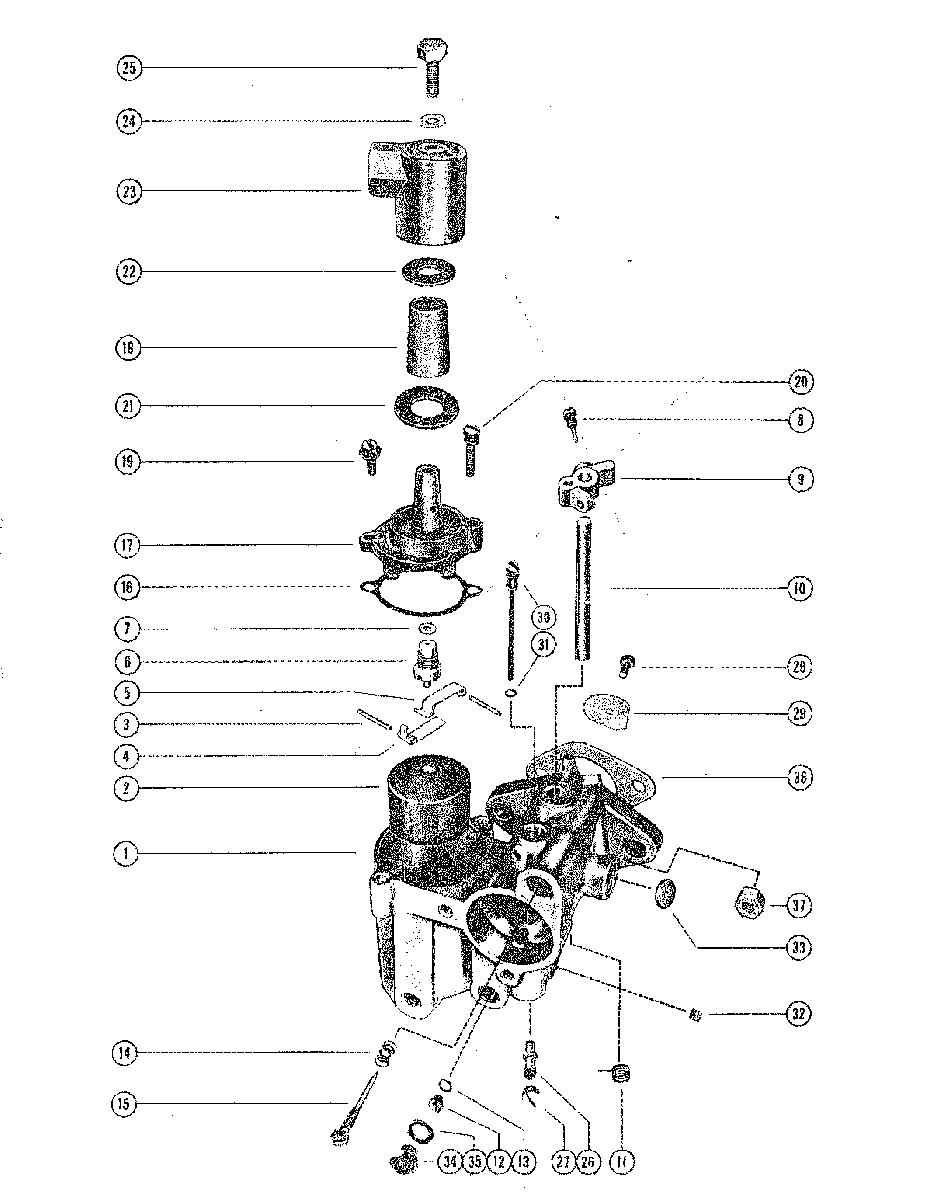

CARBURETOR ASSEMBLY для Mercury - 800 (6 CYL.) 1335465 THRU 1398629
-
№АртикулНазвание
-
11333-1707 CARBURETOR ASSEMLBY, COMPLETE (KA-10A)CARBURETOR ASSEMLBY, COMPLETE (KA-10A)
-
21395-8673 FLOAT ASSEMLBYFLOAT ASSEMLBY
-
317-20853 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
41399-102 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
51399-101 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-92581 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
727-25033 GASKET, INLET SEATGASKET, INLET SEAT
-
81395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
98146791 LEVER, THROTTLE STOP (SEE NOTE BELOW)LEVER, THROTTLE STOP (SEE NOTE BELOW)
-
101399-2012 SHAFT, THROTTLESHAFT, THROTTLE
-
1124-26890 SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (CENTER AND LOWER CARBURETOR)
-
1124-20869 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
121399-1465 JET, MAIN FUEL (.065) - STANDARDJET, MAIN FUEL (.065) - STANDARD
-
121399-1463 JET, MAIN FUEL (.063)JET, MAIN FUEL (.063)
-
121399-1461 JET, MAIN FUEL (.061)JET, MAIN FUEL (.061)
-
121399-1459 JET, MAIN FUEL (.059)JET, MAIN FUEL (.059)
-
1327-28409 GASKET, MAIN FUEL JETGASKET, MAIN FUEL JET
-
1424-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
151399-1713 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
161399-99 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
171399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
181399-3938 SCREEN, FILTER - NOT AS SHWONSCREEN, FILTER - NOT AS SHWON
-
1910-22625 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
2010-25850 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
2127-25851 GASKET, STRAINER COVER (LARGE)GASKET, STRAINER COVER (LARGE)
-
2227-25849 GASKET, STRAINER COVER (SMALL)GASKET, STRAINER COVER (SMALL)
-
231399-1135 COVER, STRAINERCOVER, STRAINER
-
2427-25848 GASKET, STRAINER COVER SCREWGASKET, STRAINER COVER SCREW
-
2510-25822 SCREW, STRAINER COVER FASTENINGSCREW, STRAINER COVER FASTENING
-
261399-1739 NOZZLE, MAINNOZZLE, MAIN
-
2710-23178 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
2810-23035 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
291399-1740 SHUTTER, THROTTLESHUTTER, THROTTLE
-
301399-1702 TUBE, IDLETUBE, IDLE
-
3127-23180 GASKET, IDLE TUBEGASKET, IDLE TUBE
-
3210-28845 SCREW, PLUG - BODY CHANNELSCREW, PLUG - BODY CHANNEL
-
3319-20011 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
3410-28405 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
3527-28406 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
--1399-2015 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1399-1741 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3627-757911 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3711-29250 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
