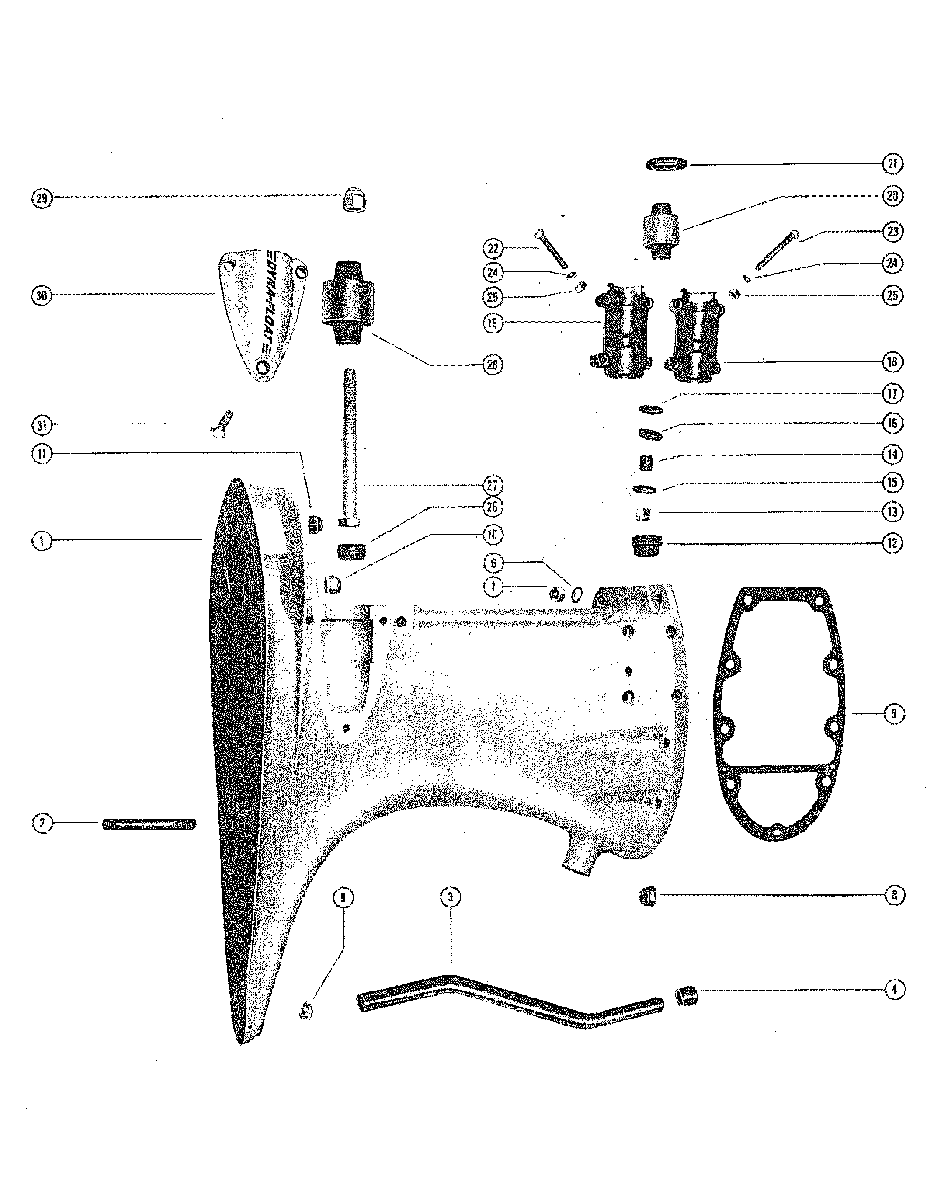

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 800 (6 CYL.) 1335465 THRU 1398629
-
№АртикулНазвание
-
11529-1745A2 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
11533-1749A1 DRIVE SHAFT HOUSING ASSEMLBYDRIVE SHAFT HOUSING ASSEMLBY
-
216-46911 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
332-29678 TUBE, WATER INLETTUBE, WATER INLET
-
332-29679 TUBE, WATER INLETTUBE, WATER INLET
-
426-26207 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
527-26198 GASKET, DRIVE SHAFT HOUSING TO BOTTOM COWLGASKET, DRIVE SHAFT HOUSING TO BOTTOM COWL
-
612-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
711-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
811-23161 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
919-29850 PLUG, PLASTIC - WATER PICK-UP SCREW HOLEPLUG, PLASTIC - WATER PICK-UP SCREW HOLE
-
1011-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
1111-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
1225305 CAP, RUBBER - UPPER MOUNT BOLT NUTCAP, RUBBER - UPPER MOUNT BOLT NUT
-
1311-34933 NUT, UPPERMOUNT BOLTNUT, UPPERMOUNT BOLT
-
1423-27725 SPACER, UPPER MOUNT BOLTSPACER, UPPER MOUNT BOLT
-
1423-30465 SPACER, UPPER MOUNT BOLT (NOT REQUIRED WITH 30513 MOUNT)SPACER, UPPER MOUNT BOLT (NOT REQUIRED WITH 30513 MOUNT)
-
1523-27725 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1512-30475 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1512-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1612-27726 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
1612-30516 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
1712-27727 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1712-30515 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1826218 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
1926217 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2030464 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2030513 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2124929 PACKING, "U" CUPPACKING, "U" CUP
-
2210-20012 SCREW, UPPER MOUNT COVER (1 5/8")SCREW, UPPER MOUNT COVER (1 5/8")
-
2310-28775 SCREW, UPPER MOUNT COVER (2 1/4")SCREW, UPPER MOUNT COVER (2 1/4")
-
2310-29389 SCREW, UPPER MOUNT COVER (1 7/8")SCREW, UPPER MOUNT COVER (1 7/8")
-
2412-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
2511-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
2625067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
2710-24874 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2710-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2830134 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2830512 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
2911-25096 NUT, MOUNTING SCREWNUT, MOUNTING SCREW
-
3026336 COVER, LOWER MOUNT - PORT SIDECOVER, LOWER MOUNT - PORT SIDE
-
3026337 COVER, LOWER MOUNT - STARBOARD SIDECOVER, LOWER MOUNT - STARBOARD SIDE
-
3110-29256 SCREW, LOWER MOUNT COVER FASTENINGSCREW, LOWER MOUNT COVER FASTENING
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY
- DISTRIBUTOR ASSEMBLY, COMPLETE
- DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS
- • DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL ASSEMBLY AND STATOR
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
- GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES
- TOP COWL ASSEMBLY
