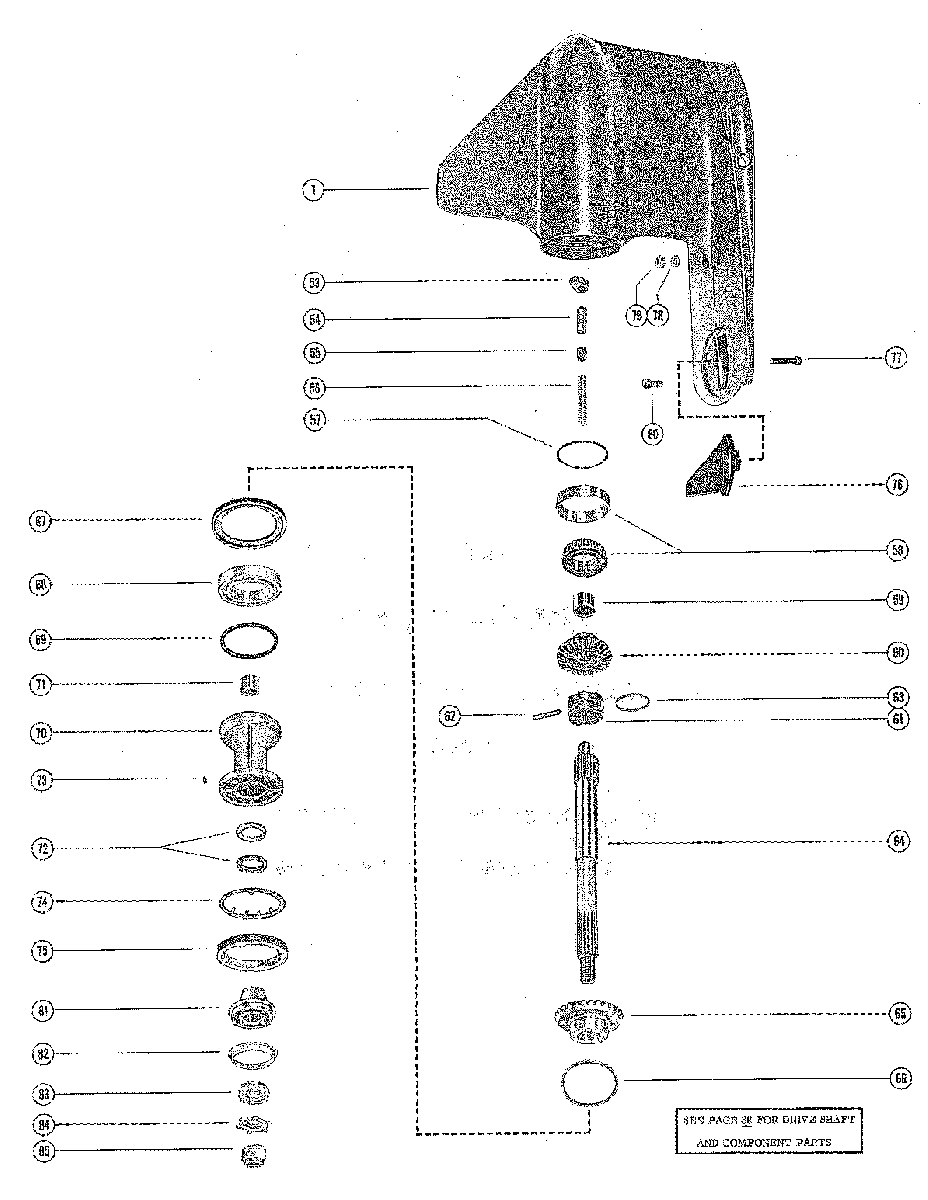

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 850 (4 CYL.) 7010108 THRU 7071372

  • №
    Артикул
    Название
  • 1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
    AUSTRALIA 8017140 THRU 8030639
    BELGIUM 9053364 THRU 9086163
    CANADA 7033028 THRU 7054482
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
    AUSTRALIA 8017140 THRU 8030639
    BELGIUM 9053364 THRU 9086163
    CANADA 7033028 THRU 7054482
    0 ₽
  • 1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
    AUSTRALIA 8017140 THRU 8030639
    BELGIUM 9053364 THRU 9086163
    CANADA 7033028 THRU 7054482
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 3865695 THRU 4153349
    AUSTRALIA 8017140 THRU 8030639
    BELGIUM 9053364 THRU 9086163
    CANADA 7033028 THRU 7054482
    0 ₽
  • 1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    SEE NOTE BELOW UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    0 ₽
  • 1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    SEE NOTE BELOW UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    0 ₽
  • 1
    1623-6052A4 GEAR HOUSING ASSEMBLY
    SEE PAGE 38 FOR BREAKDOWN UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    GEAR HOUSING ASSEMBLY
    SEE PAGE 38 FOR BREAKDOWN UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 1
    1623-6052A4 GEAR HOUSING ASSEMBLY
    SEE PAGE 38 FOR BREAKDOWN UNITED STATES 3865695 THRU 4153349
    AUSTRALIA 8017140 THRU 8030639
    BELGIUM 9053364 THRU 9086163
    CANADA 7033028 THRU 7054482
    GEAR HOUSING ASSEMBLY
    SEE PAGE 38 FOR BREAKDOWN UNITED STATES 3865695 THRU 4153349
    AUSTRALIA 8017140 THRU 8030639
    BELGIUM 9053364 THRU 9086163
    CANADA 7033028 THRU 7054482
    0 ₽
  • 1
    1623-6052A4 GEAR HOUSING ASSEMBLY
    SEE PAGE 38 FOR BREAKDOWN UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    GEAR HOUSING ASSEMBLY
    SEE PAGE 38 FOR BREAKDOWN UNITED STATES 4153350 AND UP
    AUSTRALIA 8030640 AND UP
    BELGIUM 9086164 AND UP
    CANADA 7054483 AND UP
    0 ₽
  • 53
    760394 CAM, SHIFT
    CAM, SHIFT
    2 570 ₽
  • 54
    30625 FOLLOWER, CAM
    FOLLOWER, CAM
    4 130 ₽
  • 55
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
    0 ₽
  • 56
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
    490 ₽
  • 57
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
    SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
    0 ₽
  • 58
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
    8 380 ₽
  • 59
    31-30895T BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
    1 550 ₽
  • 60
    43-56517T3 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
    50 860 ₽
  • 61
    52-822539T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
    23 870 ₽
  • 62
    17-8M0100263 PIN, CROSS - RATCHET TO0 PROPELLER SHAFT
    PIN, CROSS - RATCHET TO0 PROPELLER SHAFT
    330 ₽
  • 63
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
    220 ₽
  • 64
    44-93003 SHAFT, PROPELLER
    SHAFT, PROPELLER
    41 390 ₽
  • 65
    43-56516T REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
    49 020 ₽
  • 66
    15-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    2 520 ₽
  • 67
    12-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    WASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
    0 ₽
  • 68
    30-31265 BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
    9 350 ₽
  • 69
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
    480 ₽
  • 70
    52132T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
    25 340 ₽
  • 71
    31-30956T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
    1 350 ₽
  • 72
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
    950 ₽
  • 73
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
    220 ₽
  • 74
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
    2 040 ₽
  • 75
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
    2 900 ₽
  • 76
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
    1 530 ₽
  • 77
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    630 ₽
  • 78
    12-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    130 ₽
  • 79
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    440 ₽
  • 80
    10-65210 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    210 ₽
  • 81
    65091Q01 THRUST HUB AND WASHER ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    THRUST HUB AND WASHER ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    3 940 ₽
  • 82
    12-29590 WASHER, CUPPED - THRUST HUB
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    WASHER, CUPPED - THRUST HUB
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    0 ₽
  • 81
    65091Q01 THRUST HUB
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    THRUST HUB
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    3 940 ₽
  • 83
    12-31211Q03 WASHER, SPLINED - PROPELLER NUT
    WASHER, SPLINED - PROPELLER NUT
    1 520 ₽
  • 84
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
    460 ₽
  • 85
    11-52707Q1 NUT, PROPELLER
    NUT, PROPELLER
    1 530 ₽
