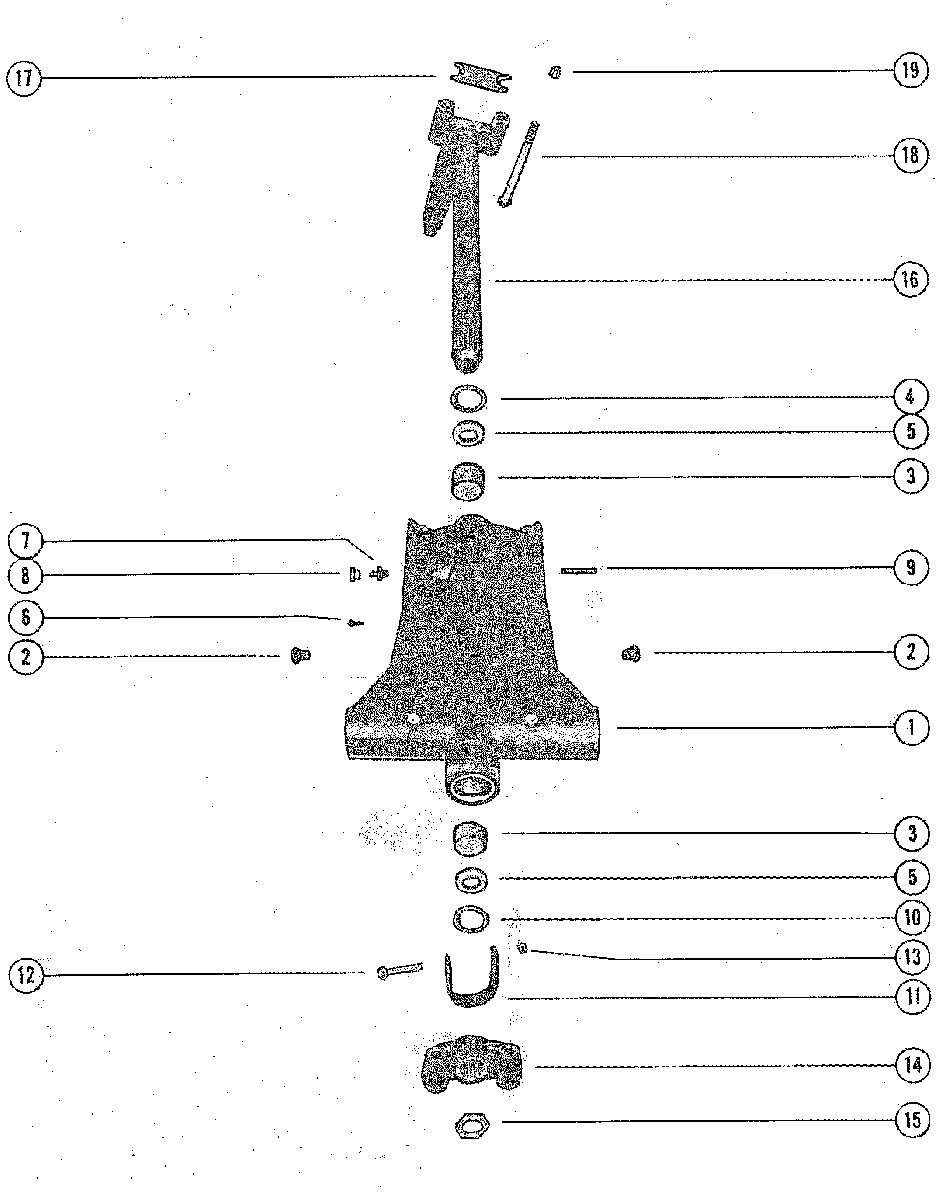

SWIVEL BRACKET ASSEMBLY для Mercury - 850 (4 CYL.) 7010108 THRU 7071372
-
№АртикулНазвание
-
11490-7256A2 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
-
11482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
223-69132 BUSHING, REVERSE LOCK PIVOT SHAFT
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPBUSHING, REVERSE LOCK PIVOT SHAFT
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
323-69341 BUSHING , SWIVEL BRACKET
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPBUSHING , SWIVEL BRACKET
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
412-69342 WASHER, SWIVEL PIN - UPPER
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UPWASHER, SWIVEL PIN - UPPER
UNITED STATES 4092965 AND UP
AUSTRALIA 8025615 AND UP
BELGIUM 9069879 AND UP
CANADA 7044108 AND UP -
526-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
610-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
722-69059 FITTING, GREASEFITTING, GREASE
-
819-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
917-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
1012-37429 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
1128205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
1210-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (2 7/8")
-
1311-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
1473984T YOKE, BOTTOMYOKE, BOTTOM
-
1511-37424 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
1617-49841A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
-
1617-49840A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
-
1728203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1810-49554 BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")BOLT, STEERING ARM TO UPPER MOUNT (5 7/8")
-
1911-34933 NUT, STEERING ARM BOLT FASTENINGNUT, STEERING ARM BOLT FASTENING
