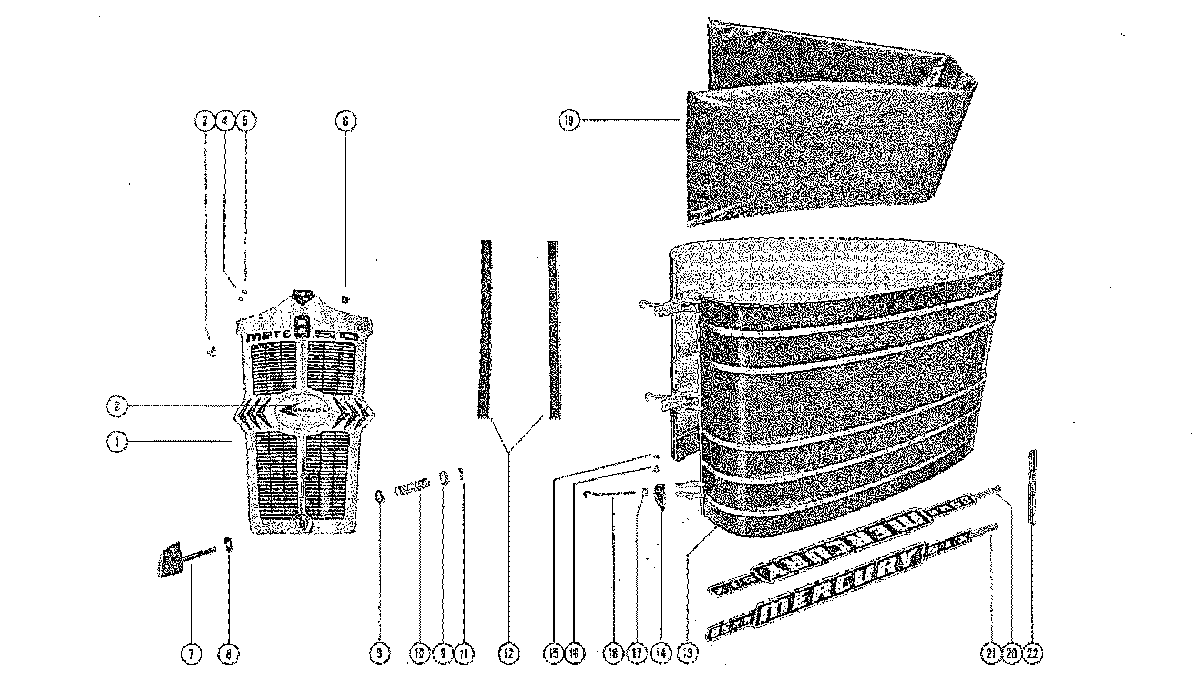

COWLING AND FRONT COVER (ENGINES, SERIAL #162019 AND BELOW) для Mercury - 850 (6 CYL.) 1460999 THRU 1766823
-
№АртикулНазвание
-
1184-2043A3 COWL FRONT COVER ASSEMBLYCOWL FRONT COVER ASSEMBLY
-
226183A5 EMBLEM, FRONT COVEREMBLEM, FRONT COVER
-
310-29226 SCREW, BRACKET TO FRONT COVERSCREW, BRACKET TO FRONT COVER
-
413-26995 LOCKWASHER, BRACKET FASTENING SCREWLOCKWASHER, BRACKET FASTENING SCREW
-
511-26419 NUT BRACKET FASTENING SCREWNUT BRACKET FASTENING SCREW
-
629345 BUMPER, RUBBER-FRONT COVER BRACKETBUMPER, RUBBER-FRONT COVER BRACKET
-
756849 KNOB, COWL FRONT COVER FASTENINGKNOB, COWL FRONT COVER FASTENING
-
812-30771 WASHER, COVER FASTENING KNOB (RUBBER)WASHER, COVER FASTENING KNOB (RUBBER)
-
912-26825 WASHER, COVER FASTENING KNOB (STEEL)WASHER, COVER FASTENING KNOB (STEEL)
-
1024-30772 SPRING, TENSION-FASTENING KNOBSPRING, TENSION-FASTENING KNOB
-
1117-29077 ROLL PIN, TENSION SPRING TO KNOBROLL PIN, TENSION SPRING TO KNOB
-
1231089 STRIP, SOUND ABSORBINGSTRIP, SOUND ABSORBING
-
132120-2509A5 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
132120-2509A5 WRAP AROUND COWL ASSEMBLYWRAP AROUND COWL ASSEMBLY
-
1446785A1 HANDLE, COWL LATCHHANDLE, COWL LATCH
-
1553-21058 "E" RING, COWL LATCH HINGE PIN"E" RING, COWL LATCH HINGE PIN
-
1617-21057 PIN, HINGE-COWL LATCH HANDLEPIN, HINGE-COWL LATCH HANDLE
-
1746785A1 SWIVEL, COWL LATCHSWIVEL, COWL LATCH
-
1830413 HOOK, COWL LATCH FASTENINGHOOK, COWL LATCH FASTENING
-
1930021 BLANKET, SOUND ABSORBING-SRAP AROUND COWLBLANKET, SOUND ABSORBING-SRAP AROUND COWL
-
2037-31885 DECAL, WRAP AROUND COWL-PORTDECAL, WRAP AROUND COWL-PORT
-
2137-31884 DECAL, WRAP AROUND COWL-STARBOARDDECAL, WRAP AROUND COWL-STARBOARD
-
2237-31883 DECAL, WRAP AROUND COWL-REARDECAL, WRAP AROUND COWL-REAR
-
2037-33679 DECAL, WRAP AROUND COWL-PORTDECAL, WRAP AROUND COWL-PORT
-
2137-33678 DECAL, WRAP AROUND COWL-STARBOARDDECAL, WRAP AROUND COWL-STARBOARD
-
2192-86166Q1 GLU,ADHESIVE-BLANKET FASTENINGGLU,ADHESIVE-BLANKET FASTENING
-
2192-271091 ADHESIVE COMPOUND ( 3 1/2 OUNCE KIT) EMBLEM FASTENINGADHESIVE COMPOUND ( 3 1/2 OUNCE KIT) EMBLEM FASTENING
