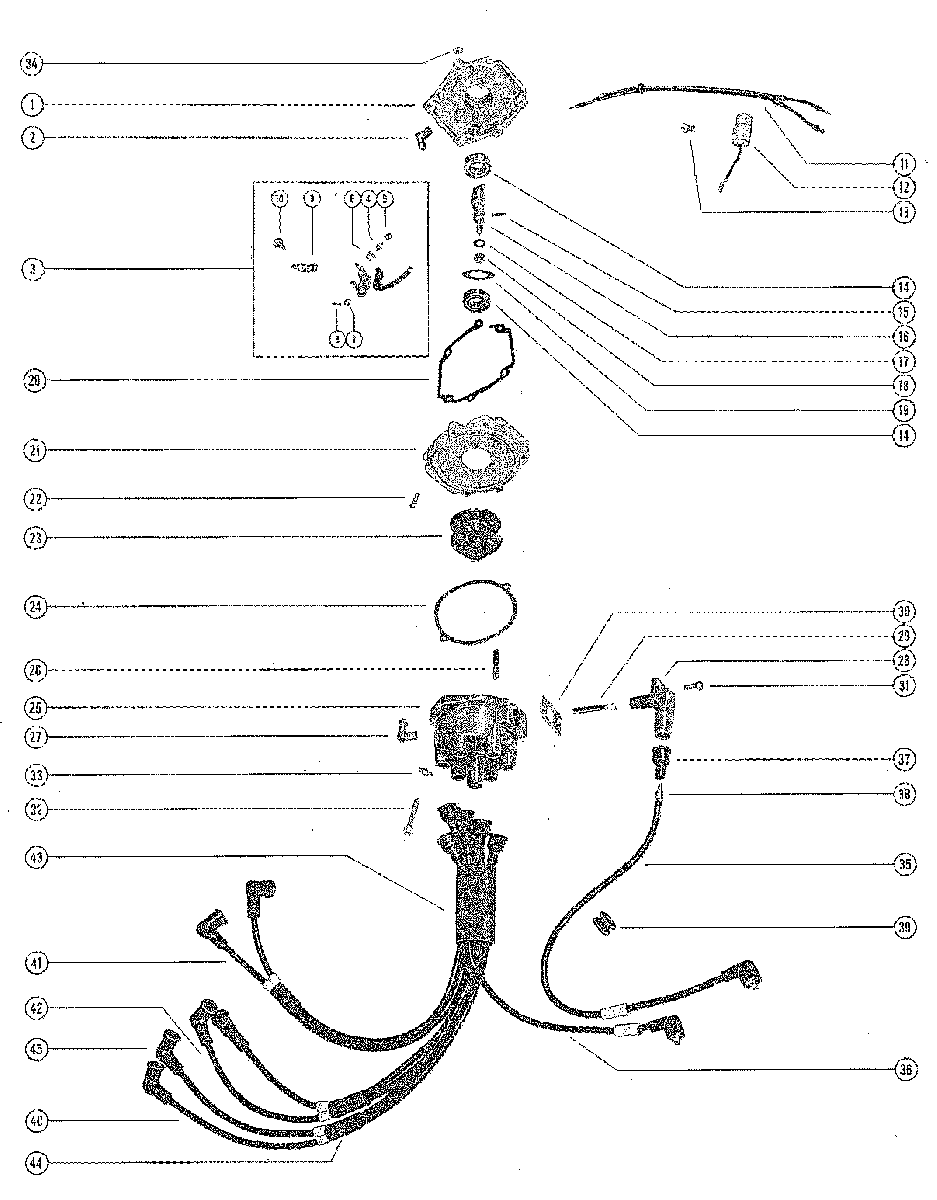

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercury - 850 (6 CYL.) 1460999 THRU 1766823
-
№АртикулНазвание
-
393-1282A17 DISTRIBUTOR ASSEMBLY, COMPLETEDISTRIBUTOR ASSEMBLY, COMPLETE
-
1393-1282 HOUSING, PRIMARYHOUSING, PRIMARY
-
222-25885A1 ELBOW ASSEMBLY, VENT HOSE-PRIMARY HOUSINGELBOW ASSEMBLY, VENT HOSE-PRIMARY HOUSING
-
3393-1504A11 BREAKER ASSEMBLY, COMPLETEBREAKER ASSEMBLY, COMPLETE
-
416-29230 STUD, PRIMARY LEAD AND TENSION SPRINGSTUD, PRIMARY LEAD AND TENSION SPRING
-
511-29236 NUT, PRIMARY LEAD FASTENINGNUT, PRIMARY LEAD FASTENING
-
6393-1586 GROMMET, PLASTIC-BREAKER ASSEMBLYGROMMET, PLASTIC-BREAKER ASSEMBLY
-
712-26439 WASHER, BREAKER PIVOT PINWASHER, BREAKER PIVOT PIN
-
818-26953 COTTER PIN, BREAKER TO PIVOT PINCOTTER PIN, BREAKER TO PIVOT PIN
-
9393-1287A2 CAM WICK AND HOLDER ASESMBLYCAM WICK AND HOLDER ASESMBLY
-
1010-20597 SCREW, BREAKER HOLDER TO HOUSINGSCREW, BREAKER HOLDER TO HOUSING
-
11393-1656 WIRE, PRIMARY GROUNDWIRE, PRIMARY GROUND
-
12393-1283A1 CONDENSERCONDENSER
-
1310-29434 SCREW, CONDENSER TO HOUSINGSCREW, CONDENSER TO HOUSING
-
1430-26379 BEARING, BALL-CAM SHAFTBEARING, BALL-CAM SHAFT
-
1517-25319 PIN, ROLL-CAM SHAFTPIN, ROLL-CAM SHAFT
-
16393-1779A2 SHAFT ASSEMBLY-DISTRIBUTOR CAMSHAFT ASSEMBLY-DISTRIBUTOR CAM
-
1725-26543 "O" RING, CAM SHAFT"O" RING, CAM SHAFT
-
1823-28933 BUSHING, DISTRIBUTOR CAM SHAFTBUSHING, DISTRIBUTOR CAM SHAFT
-
1913-26917 WASHER, WAVE-BALL BEARING TENSIONWASHER, WAVE-BALL BEARING TENSION
-
2027-26412 GASKET, HOUSING TO ADAPTORGASKET, HOUSING TO ADAPTOR
-
21393-1278 ADAPTOR, HOUSING TO DISTRIBUTOR CAPADAPTOR, HOUSING TO DISTRIBUTOR CAP
-
2210-32651 SCREW, ADAPTOR TO HOUSINGSCREW, ADAPTOR TO HOUSING
-
23393-1280A1 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
2427-36268 GASKET, DISTRIBUTOR CAP TO ADAPTOR SEE NOTE BELOWGASKET, DISTRIBUTOR CAP TO ADAPTOR SEE NOTE BELOW
-
25393-1927A9 DISTRIBUTOR CAP ASSEMBLY SEE NOTE BELOWDISTRIBUTOR CAP ASSEMBLY SEE NOTE BELOW
-
26393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2722-31521 ELBOW, VENT HOSE-DISTRIBUTOR CAPELBOW, VENT HOSE-DISTRIBUTOR CAP
-
28F1277 SIDE INLET ASSEMBLYSIDE INLET ASSEMBLY
-
29393-1292A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
3027-26447 GASKET, SIDE INLET TO DISTRIBUTOR CAPGASKET, SIDE INLET TO DISTRIBUTOR CAP
-
3110-29167 SCREW, SIDE INLET TO DISTRIBUTOR CAPSCREW, SIDE INLET TO DISTRIBUTOR CAP
-
3210-29158 SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING SEE NOTE BELOSCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING SEE NOTE BELO
-
3314-29157 TAB WASHER, DISTRIBUTOR CAP FASTENING SCREWSEE NOTE BELOWTAB WASHER, DISTRIBUTOR CAP FASTENING SCREWSEE NOTE BELOW
-
3411-21806 NUT, DISTRIBUTOR CAP FASTENING SCREWNUT, DISTRIBUTOR CAP FASTENING SCREW
-
3584-821945A37 HIGH TENSION CABLE ASSEMBLY (COIL#2)HIGH TENSION CABLE ASSEMBLY (COIL#2)
-
3684-821945A27 HIGH TENSION CABLE ASSEMBLY (COIL #1)HIGH TENSION CABLE ASSEMBLY (COIL #1)
-
3785-94589 SLEEVE, TERMINAL END COVERSLEEVE, TERMINAL END COVER
-
388M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)CONNECTOR, HIGH TENSION CABLE (CAP END)
-
3925-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
4084-813715A1 SPARK PLUG LEAD ASSEMBLY (#3,4 AND 5)
ORDER 36549 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (#3,4 AND 5)
ORDER 36549 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
4184-813715A1 SPARK PLUG LEAD ASSEMBLY (#2 AND 6)
ORDER 36549 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (#2 AND 6)
ORDER 36549 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
4284-813715A1 SPARK PLUG LEAD ASSEMBLY (#1)
ORDER 36549 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (#1)
ORDER 36549 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
388M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
3785-94589 SLEEVE, TERMINAL END COVERSLEEVE, TERMINAL END COVER
-
4332-30574 SLEEVE, SPARK PLUG LEADSLEEVE, SPARK PLUG LEAD
-
4332-30574 SLEEVE, SPARK PLUG LEADSLEEVE, SPARK PLUG LEAD
-
4432-46768 SLEEVE, SPARK PLUG LEADSLEEVE, SPARK PLUG LEAD
-
4585-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
