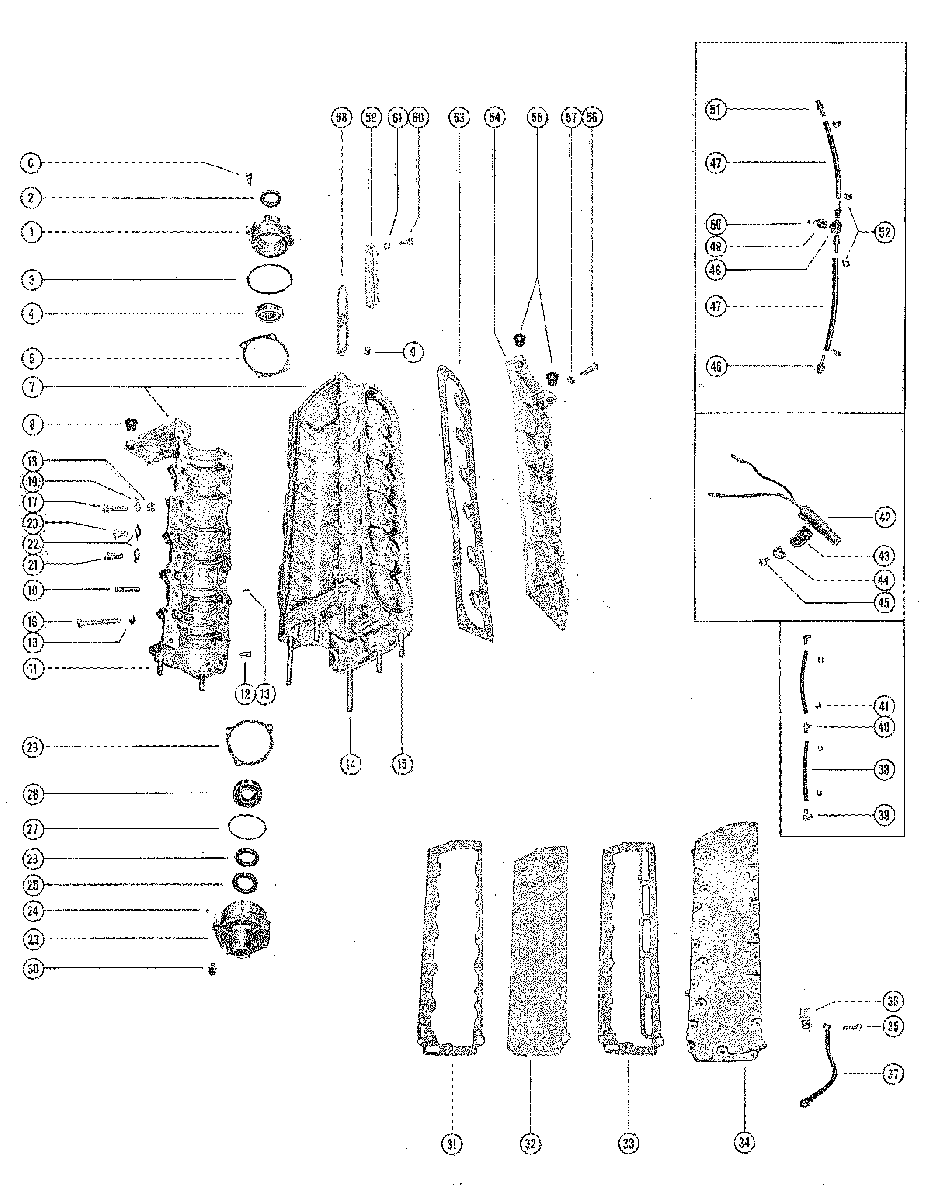

CYLINDER BLOCK AND CRANKCASE ASSEMBLY (MERC 850E-1) для Mercury - 850 (6 CYL.) 1460999 THRU 1766823

№

Артикул

Название
1

1128-1890A1 END CAP ASSEMBLY, UPPER

END CAP ASSEMBLY, UPPER

0 ₽
2

26-41953 OIL SEAL

OIL SEAL

1 140 ₽
3

25-31305 "O" RING

"O" RING

290 ₽
4

30-62567T BEARING, BALL

BEARING, BALL

13 940 ₽
5

15-31283A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)

SHIM, END CAP TO CRANKCASE (.002-3-5-10)

0 ₽
6

10-30225 SCREW, END CAP MOUNTING

SCREW, END CAP MOUNTING

70 ₽
7

836-1852A1 CYLINDER BLOCK AND CRANKCASE ASSEMBLY

CYLINDER BLOCK AND CRANKCASE ASSEMBLY

0 ₽
8

23-26348 BUSHING, CRANKCASE-COWL MOUNTING STUD

BUSHING, CRANKCASE-COWL MOUNTING STUD

0 ₽
9

22-328022 PLUG, PIPE-WATER PRESSURE HOLE

PLUG, PIPE-WATER PRESSURE HOLE

600 ₽
10

16-21831 STUD, CARBURETOR MOUNTING

STUD, CARBURETOR MOUNTING

0 ₽
11

16-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING

STUD, CRANKCASE TO DRIVE SHAFT HOUSING

0 ₽
12

17-43044 PIN, DOWEL-CRANKCASE TO CYLINDER BLOCK

PIN, DOWEL-CRANKCASE TO CYLINDER BLOCK

200 ₽
13

17-20032 PIN, DOWEL-CYLINDER BLOCK TO MAIN BEARING

PIN, DOWEL-CYLINDER BLOCK TO MAIN BEARING

250 ₽
14

16-26134 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING

STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING

0 ₽
15

16-26135 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING

STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING

0 ₽
16

10-29877 SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/4")

SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/4")

0 ₽
16

10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK F(2 1/2")

SCREW, CRANKCASE TO CYLINDER BLOCK F(2 1/2")

0 ₽
17

10-69091 SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")

SCREW, CRANKCASE TO CYLINDER BLOCK (1 5/8")

0 ₽
17

10-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")

SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")

180 ₽
17

10-78841 SCREW, CRANKCASE TO CYLINDER BLOCK F(F1 1/2")

SCREW, CRANKCASE TO CYLINDER BLOCK F(F1 1/2")

0 ₽
18

11-29250 NUT, CRANKCASE FASTENING SCREW

NUT, CRANKCASE FASTENING SCREW

180 ₽
19

53-78201 BRACKET, CLAMP EXTENSION

BRACKET, CLAMP EXTENSION

830 ₽
20

10-36351 SCREW, MAIN BEARING LOCKING

SCREW, MAIN BEARING LOCKING

0 ₽
21

10-20359 SCREW, CENTER MAIN BEARING LOCKING

SCREW, CENTER MAIN BEARING LOCKING

140 ₽
22

14-20091 TAB WASHER,BEARING LOCKING SCREW

TAB WASHER,BEARING LOCKING SCREW

140 ₽
23

1126-1751A1 END CAP ASSEMBLY, LOWER

END CAP ASSEMBLY, LOWER

0 ₽
24

21-28481A1 CHECK VALVE ASSEMBLY, END CAP

CHECK VALVE ASSEMBLY, END CAP

0 ₽
25

26-41953 OIL SEAL UPPER

OIL SEAL UPPER

1 140 ₽
26

26-29478 OIL SEAL, LOWER

OIL SEAL, LOWER

3 200 ₽
27

25-20081 "O" RING

"O" RING

220 ₽
28

30-63742T BEARING BALL

BEARING BALL

3 440 ₽
29

15-20085A1 SHIM, END CAP TO CRANKCASE(.002-3-5-10)

SHIM, END CAP TO CRANKCASE(.002-3-5-10)

6 050 ₽
30

10-30225 SCREW, END CAP MOUNTING

SCREW, END CAP MOUNTING

70 ₽
31

27-31302 GASKET, CYLINDER BLOCK TO MANIFOLD PLATE

GASKET, CYLINDER BLOCK TO MANIFOLD PLATE

1 430 ₽
32

30011 PLATE EXHAUST MANIFOLD

PLATE EXHAUST MANIFOLD

0 ₽
33

27-38271 GASKET, MANIFOLD PLATE TO COVER

GASKET, MANIFOLD PLATE TO COVER

0 ₽
34

31303 COVER, EXHAUST MANIFOLD

COVER, EXHAUST MANIFOLD

0 ₽
35

10-28668 SCREW, MANIFOLD COVER MOUNTING

SCREW, MANIFOLD COVER MOUNTING

140 ₽
36

54-26519 CLAMP, SPARK PLUG LEADS TO COVER

CLAMP, SPARK PLUG LEADS TO COVER

0 ₽
37

30109 GROUND STRAP ASSEMBLY, CYLINDER BLOCK TO BOTTOM COWL

GROUND STRAP ASSEMBLY, CYLINDER BLOCK TO BOTTOM COWL

0 ₽
38

32-8M0108355 TUBE, BALANCE-MAIN BEARING

TUBE, BALANCE-MAIN BEARING

5 260 ₽
39

22-20781 ELBOW, BALANCE TUBE TO MAIN BEARING SCREW

ELBOW, BALANCE TUBE TO MAIN BEARING SCREW

0 ₽
40

22-8585531 TEE, BALANCE TUBE TO MAIN BEARING SCREW

TEE, BALANCE TUBE TO MAIN BEARING SCREW

790 ₽
41

54-20386 CLAMP, BALANCE TUBE TO ELBOW AND TEE

CLAMP, BALANCE TUBE TO ELBOW AND TEE

350 ₽
42

58124A1 SWITCH,MERCURY (M.L.A.-ORDER 33385A)MERCURY SWITCH AND (1)10

SWITCH,MERCURY (M.L.A.-ORDER 33385A)MERCURY SWITCH AND (1)10

0 ₽
43

54-22875 CLAMP, MERCURY SWITCH HOLDING

CLAMP, MERCURY SWITCH HOLDING

300 ₽
44

8M0084613 "D" WASHER, CLAMP FASTENING SCREW

"D" WASHER, CLAMP FASTENING SCREW

100 ₽
45

10-20401 SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER

SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER

0 ₽
46

22-67902 CONNECTOR, CYLINDER BLEED HOSE-LOWER AND CENTER

CONNECTOR, CYLINDER BLEED HOSE-LOWER AND CENTER

1 060 ₽
47

32-9912688 HOSE, UPPER AND LOWER CYLINDER BLEED

HOSE, UPPER AND LOWER CYLINDER BLEED

2 630 ₽
48

22-25956 TEE, CHECK VALVE AND ADAPTOR

TEE, CHECK VALVE AND ADAPTOR

0 ₽
49

22-28586A1 ADAPTOR AND CHECK VALVE ASSEMBLY

ADAPTOR AND CHECK VALVE ASSEMBLY

0 ₽
50

21-28481A1 CHECK VALVE ASSEMBLY-ADAPTOR

CHECK VALVE ASSEMBLY-ADAPTOR

0 ₽
51

22-62365A1 CHECK VALVE ASSEMBLY, UPPER-BLEED HOSE

CHECK VALVE ASSEMBLY, UPPER-BLEED HOSE

0 ₽
50

21-28481A1 CHECK VALVE ASSEMBLY

CHECK VALVE ASSEMBLY

0 ₽
52

54-20387 CLAMP, BLEED HOSE TO CONNECTOR

CLAMP, BLEED HOSE TO CONNECTOR

2 050 ₽
53

27-31798 GASKET, CYLINDER BLOCK COVER

GASKET, CYLINDER BLOCK COVER

1 650 ₽
54

1011-1946A1 CYLINDER BLOCK COVER ASSEMBLY

CYLINDER BLOCK COVER ASSEMBLY

0 ₽
55

23-26348 BUSHING, COVER-COWL MOUNTING STUD

BUSHING, COVER-COWL MOUNTING STUD

0 ₽
56

10-20653 SCREW, CYLINDER BLOCK COVER MOUNTING (1")

SCREW, CYLINDER BLOCK COVER MOUNTING (1")

150 ₽
56

10-56500 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")

SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")

210 ₽
57

11-20184 NUT, COVER MOUNTING SCREW

NUT, COVER MOUNTING SCREW

120 ₽
58

27-31304 GASKET, TRANSFER PORT COVER

GASKET, TRANSFER PORT COVER

500 ₽
59

31288 COVER, TRANSFER PORT

COVER, TRANSFER PORT

0 ₽
33

10-20540 SCREW, TRANSFER PORT COVER MOUNTING (5/8")

SCREW, TRANSFER PORT COVER MOUNTING (5/8")

0 ₽
60

10-28666 SCREW,TRANSFER PORT COVER AND BALLAST MOUNTING (1")

SCREW,TRANSFER PORT COVER AND BALLAST MOUNTING (1")

0 ₽
61

13-26992 LOCKWASHER, TRANSFER PORT COVER AND BALLAST MOUNTING SCREW

LOCKWASHER, TRANSFER PORT COVER AND BALLAST MOUNTING SCREW

70 ₽
