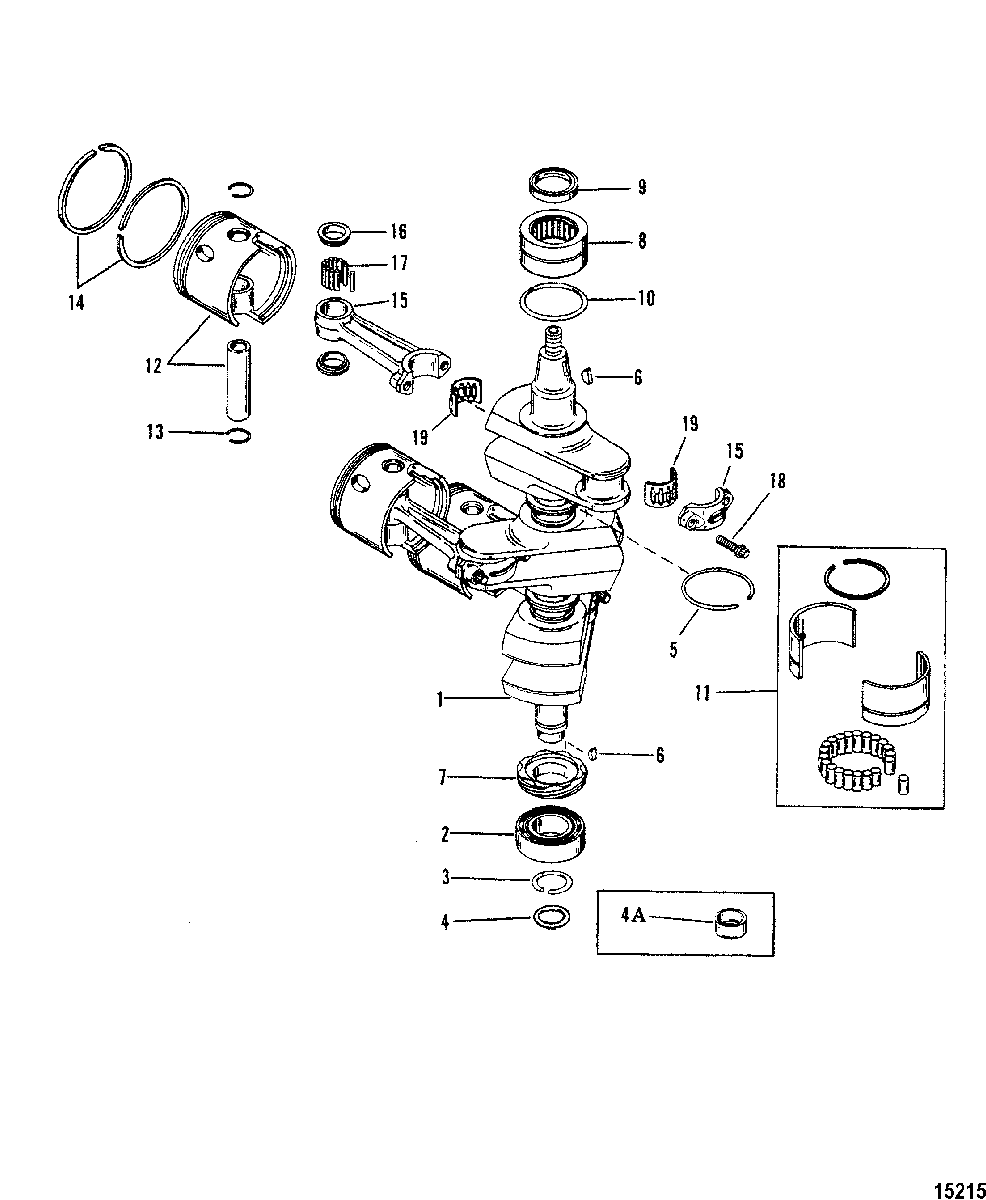

Crankshaft, Pistons And Connecting Rods (#638-8532-1) для Mercury - 90 (3 CYL.) 9589039 THRU 9793576
-
№АртикулНазвание
-
1472-9001T3 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-43011T BALL BEARING, LowerBALL BEARING, Lower
-
353-93412 RETAINING RING, Old DesignRETAINING RING, Old Design
-
425-35126 O-RINGO-RING
-
4A786611 WEAR SLEEVEWEAR SLEEVE
-
539-42079A4 RING ASSEMBLYRING ASSEMBLY
-
628-91800 KEY, WoodruffKEY, Woodruff
-
743-43019A1 DRIVER GEARDRIVER GEAR
-
831-43013T3 ROLLER BEARING ASSEMBLY, UpperROLLER BEARING ASSEMBLY, Upper
-
926-43993 SEAL, OilSEAL, Oil
-
1025-823683 O-RINGO-RING
-
1142943A1 ROLLER BEARING ASSEMBLYROLLER BEARING ASSEMBLY
-
12777-9009T13 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
12777-9009A6 PISTON ASSEMBLY
(.015 Oversize)PISTON ASSEMBLY
(.015 Oversize) -
12777-9009A7 PISTON ASSEMBLY
(.030 Oversize)PISTON ASSEMBLY
(.030 Oversize) -
1353-857196 RINGRING
-
1439-96170A12 PISTON RING ASSEBMLY
(Standard)PISTON RING ASSEBMLY
(Standard) -
1439-96170A3 PISTON RING ASSEMBLY
(.015 Oversize)PISTON RING ASSEMBLY
(.015 Oversize) -
1439-96170A4 PISTON RING ASSEMBLY
(.030 Oversize)PISTON RING ASSEMBLY
(.030 Oversize) -
15638-9002A6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1612-8M0032839 WASHERWASHER
-
1729-88258001 NEEDLE, Roller BearingNEEDLE, Roller Bearing
-
1810-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1931-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
-13589T93 POWERHEAD ASSEMBLY COMPLETE, 75POWERHEAD ASSEMBLY COMPLETE, 75
-
-13600T93 POWERHEAD ASSEMBLY COMPLETE, 75 CommercialPOWERHEAD ASSEMBLY COMPLETE, 75 Commercial
-
-15081T96 POWERHEAD ASSEMBLY COMPLETE, 90POWERHEAD ASSEMBLY COMPLETE, 90
