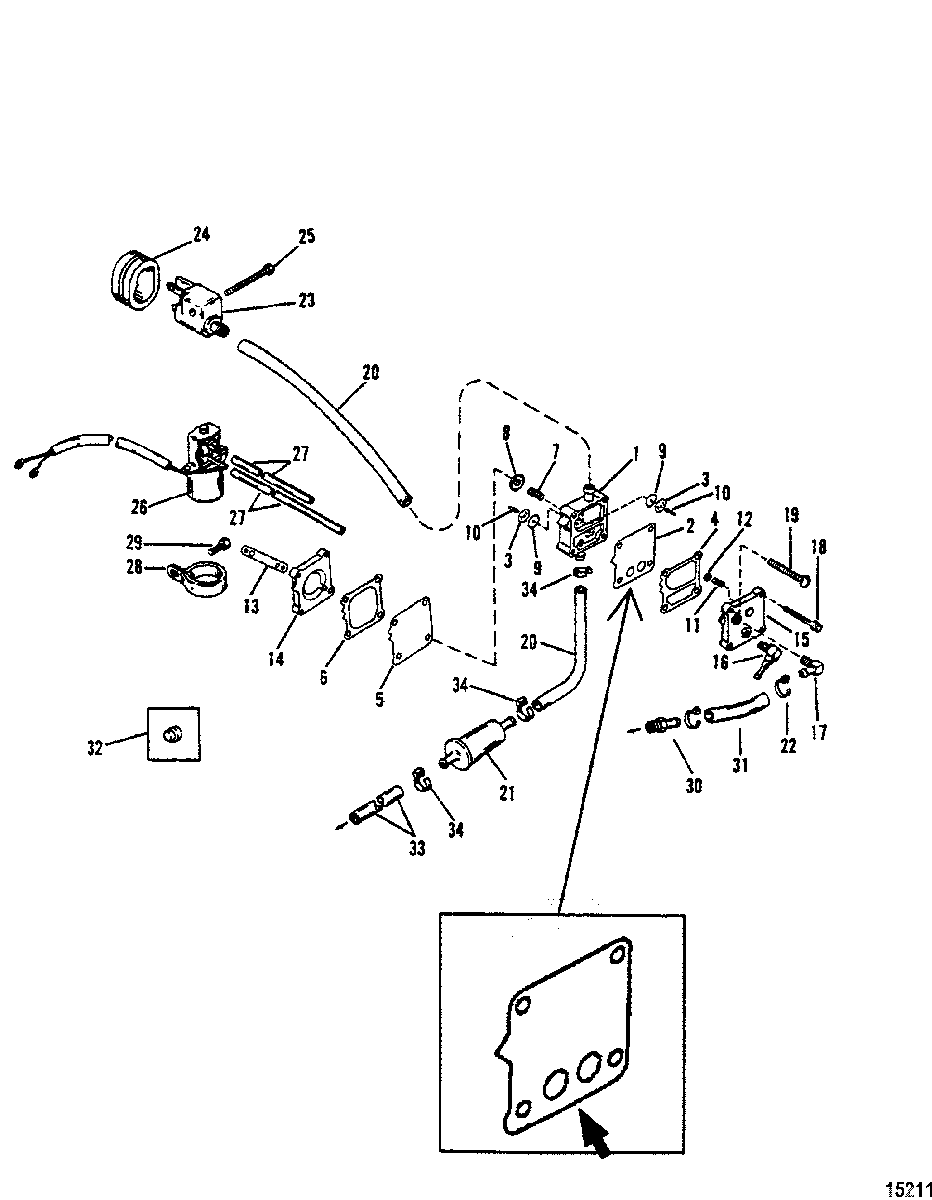

Fuel Pump(Use With 90 Degree Ceck Valve) для Mercury - 90 (3 CYL.) 9589039 THRU 9793576
-
№АртикулНазвание
-
114360A78 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
242909A4 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
4NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
5NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
6NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
10NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1327-987691 GASKETGASKET
-
1498768 BASEBASE
-
1598775A1 PLATEPLATE
-
1621-424811 CHECK VALVE, Oil InjectionCHECK VALVE, Oil Injection
-
1722-19688 FITTINGFITTING
-
1810-82104540 SCREWSCREW
-
1910-40057134 SCREW, (M6 X 50)SCREW, (M6 X 50)
-
2032-8M0108349 TUBINGTUBING
-
2135-816296Q2 FUEL FILTERFUEL FILTER
-
2254-816311T CABLE TIE, (8.00 Inch)CABLE TIE, (8.00 Inch)
-
2322-816856Q3 FUEL CONNECTOR, PlasticFUEL CONNECTOR, Plastic
-
2425-145091 GROMMETGROMMET
-
2510-4010635 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2689-819503A2 ENRICHNER VALVEENRICHNER VALVE
-
2732-1430165 TUBING, (38.00 Inch)TUBING, (38.00 Inch)
-
2854-18887 CLAMPCLAMP
-
2910-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
3022-64705 FITTING
(To Crankcase)FITTING
(To Crankcase) -
3132-8M0108355 FUEL LINE, (57.00 Inches Bulk)FUEL LINE, (57.00 Inches Bulk)
-
3222-56800 PLUG, Pipe (.0625-27), Non Oil InjectionPLUG, Pipe (.0625-27), Non Oil Injection
-
3332-19017A1 FUEL LINE
(To Carburetor)FUEL LINE
(To Carburetor) -
3454-13791 CLAMP, (15.7), Old Design, New Design Use Reference Number 22CLAMP, (15.7), Old Design, New Design Use Reference Number 22
-
-27-43004A99 GASKET SETGASKET SET
-
-42909A4 FUEL PUMP DIAPHRAGM KITFUEL PUMP DIAPHRAGM KIT
