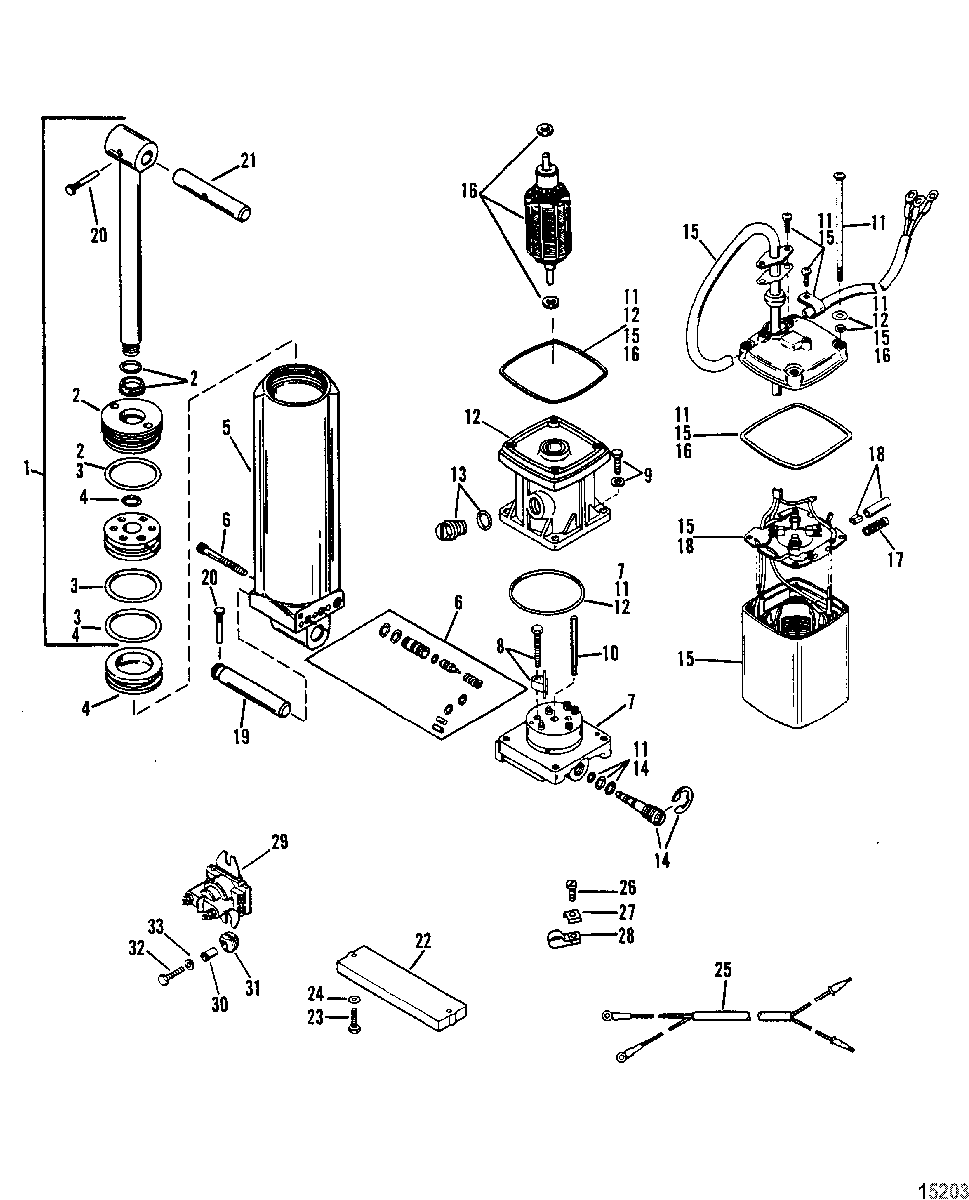

Power Trim Components, Single Ram (0D252461 and Up) для Mercury - 90 (3 CYL.) 9589039 THRU 9793576
-
№АртикулНазвание
-
-8M0090334 POWER TRIM PUMPPOWER TRIM PUMP
-
18M0089942 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
2813428 CYLINDER END CAP ASSEMBLYCYLINDER END CAP ASSEMBLY
-
3813432A1 CYLINDER REBUILD KITCYLINDER REBUILD KIT
-
4810776 MEMORY PISTON KITMEMORY PISTON KIT
-
58M0055015 CYLINDERCYLINDER
-
6811678A6 SCREW AND SEAL KITSCREW AND SEAL KIT
-
7809901A2 PUMP/MANIFOLDPUMP/MANIFOLD
-
8809901A2 ROCKER ARMROCKER ARM
-
910-813436 SCREW KITSCREW KIT
-
108116711 DRIVE SHAFTDRIVE SHAFT
-
11809901A2 SEAL KIT, With Case BoltsSEAL KIT, With Case Bolts
-
12809901A2 RESERVOIRRESERVOIR
-
1322-8134351 PLUG KITPLUG KIT
-
14893929A01 RELIEF VALVE KITRELIEF VALVE KIT
-
15809901A2 FRAME AND FIELD KITFRAME AND FIELD KIT
-
16809901A2 ARMATURE KITARMATURE KIT
-
1712665 BRUSH SPRING KITBRUSH SPRING KIT
-
18811625 BRUSH CARD KITBRUSH CARD KIT
-
1917-818898 PIN, AnchorPIN, Anchor
-
2017-821539 PIN, TrilobePIN, Trilobe
-
2199625002 SHAFTSHAFT
-
2297-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
2310-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2412-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
2584-17201A2 CONTROL HARNESS, (17.00 Inches)CONTROL HARNESS, (17.00 Inches)
-
2610-878607 SCREW, (10-16 X .38)SCREW, (10-16 X .38)
-
278M0084613 C WASHERC WASHER
-
2854-22875 CLIPCLIP
-
2989-818997T1 SOLENOIDSOLENOID
-
3023-818968 BUSHINGBUSHING
-
3125-818967 GROMMETGROMMET
-
3210-40011109 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
3312-4002314 WASHERWASHER
