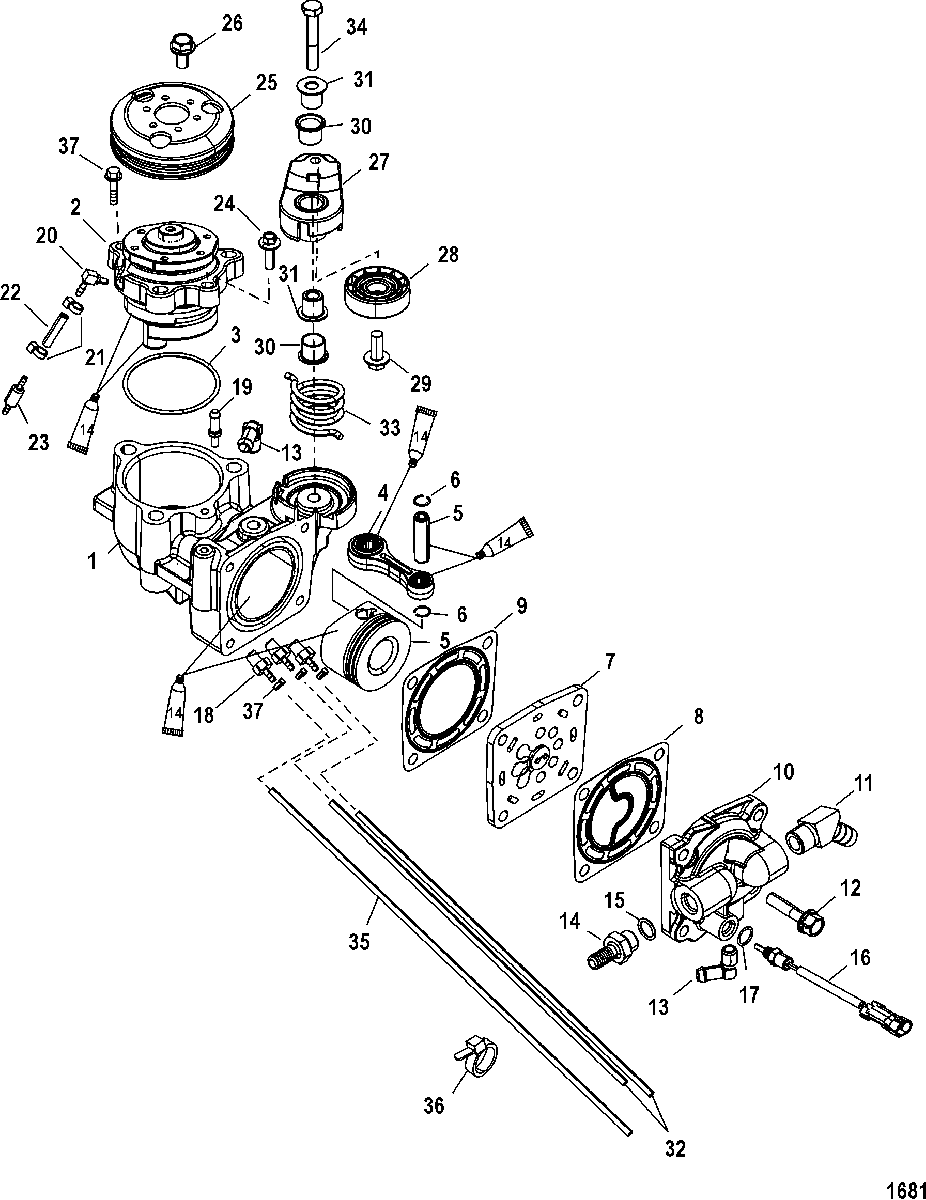

Air Compressor для Mercury - 90 DFI (3 CYL.)(1.5L) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
18M0050654 COMPRESSOR ASSEMBLY, AirCOMPRESSOR ASSEMBLY, Air
-
28M0114192 END CAPEND CAP
-
325-86391 O-RINGO-RING
-
4657-853658T02 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
5NSS NOT SOLD SEPARATE, Piston Assy. (With Rings)NOT SOLD SEPARATE, Piston Assy. (With Rings)
-
653-854638 LOCK RINGLOCK RING
-
7853584A10 REED PLATE ASSEMBLYREED PLATE ASSEMBLY
-
827-854442 GASKETGASKET
-
927-854443 GASKETGASKET
-
10854334T02 HEAD, CompressorHEAD, Compressor
-
1122-38565 FITTING, (.375-18)FITTING, (.375-18)
-
1210-82446035 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1322-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1422-856744 FITTINGFITTING
-
1525-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
16885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1725-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
1821-888421 CHECK VALVECHECK VALVE
-
198215832 PIN, SpecialPIN, Special
-
2022-15133 FITTINGFITTING
-
2169355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
2232-88306955 HOSE, (.125 x 25.00 Inches)HOSE, (.125 x 25.00 Inches)
-
2321-889851 CONNECTORCONNECTOR
-
2410-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
25853944T03 PULLEYPULLEY
-
2610-85593912 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
278M0047394 TENSIONER ARMTENSIONER ARM
-
288547971 PULLEYPULLEY
-
2910-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
3030-8570111 BEARING, FlangedBEARING, Flanged
-
3123-856549001 BUSHINGBUSHING
-
3232-88104441 TUBING, (18.00 Inches Bulk), Cut to 8 InchesTUBING, (18.00 Inches Bulk), Cut to 8 Inches
-
3324-8547953 SPRINGSPRING
-
3410-4000382 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
3532-88104441 TUBING, (18.00 Inches Bulk), Cut to 13 InchesTUBING, (18.00 Inches Bulk), Cut to 13 Inches
-
3654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3710-82446090 SCREW, (M8 x 90)SCREW, (M8 x 90)
