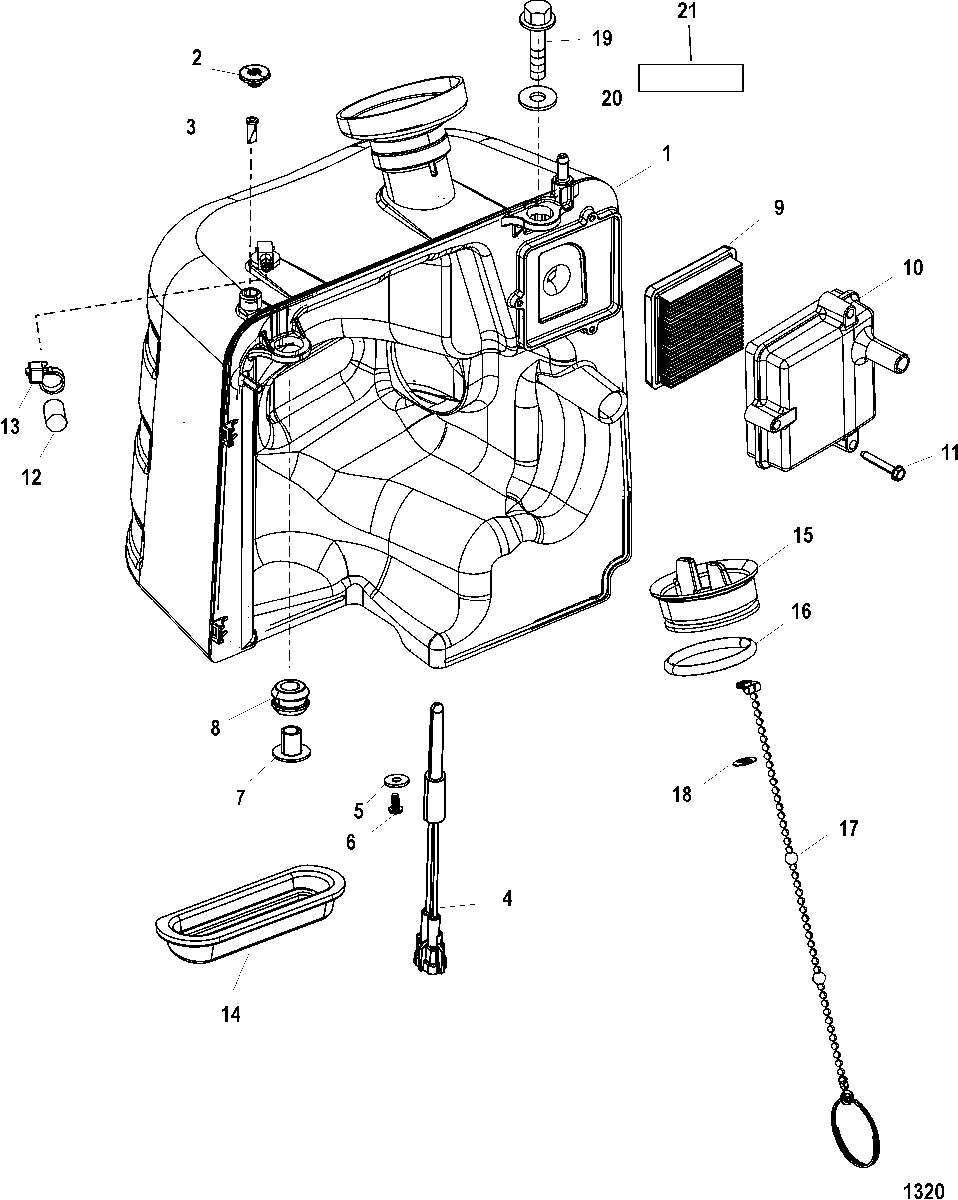

Oil Tank для Mercury - 90 DFI (3 CYL.)(1.5L) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
11200-879844T08 TANK, OilTANK, Oil
-
219299A1 VENT ASSEMBLYVENT ASSEMBLY
-
321-64871 VALVEVALVE
-
487-856156T04 SWITCHSWITCH
-
512-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
610-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
723-883821 BUSHINGBUSHING
-
825-883820001 GROMMET
SN# 0T979999 & BelowGROMMET
SN# 0T979999 & Below -
825-883820001 GROMMET
SN# 0T980000 & UpGROMMET
SN# 0T980000 & Up -
935-883037T FILTERFILTER
-
10883044001 COVER, To Air CompressorCOVER, To Air Compressor
-
1110-883075 SCREW, (#10-16 x 1.25)SCREW, (#10-16 x 1.25)
-
1219-854310 PLUGPLUG
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1425-879857 BOOTBOOT
-
1536-8M0073266 CAPCAP
-
1625-26318T O-RINGO-RING
-
17887776002 CHAINCHAIN
-
1811-113161 NUTNUT
-
1910-82446035 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2012-4002318 WASHERWASHER
-
2137-881865 DECAL, Caution-Start in Gear
(Start In Gear)DECAL, Caution-Start in Gear
(Start In Gear)
