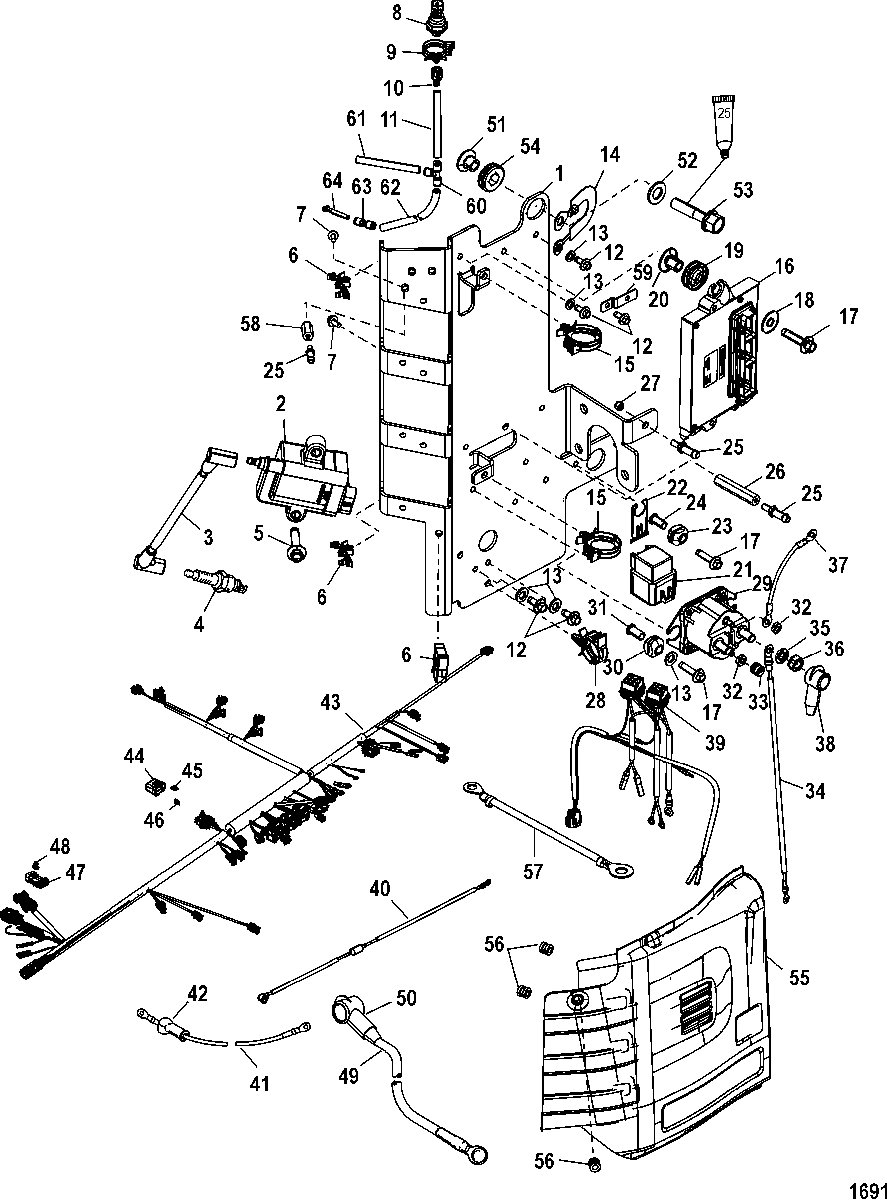

Electrical Components для Mercury - 90 DFI (3 CYL.)(1.5L) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
1880190T03 PLATE, ElectricalPLATE, Electrical
-
2300-8M0077471 COIL, IgnitionCOIL, Ignition
-
384-884442T03 LEAD, Hi TensionLEAD, Hi Tension
-
433-892567Q SPARK PLUG, NGK#IZFR5JSPARK PLUG, NGK#IZFR5J
-
510-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
6828791 CLIPCLIP
-
710-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
8881879A7 SENSOR KIT, (0-50 PSI)SENSOR KIT, (0-50 PSI)
-
954-883066 CLIP, (.865)CLIP, (.865)
-
1022-892403 FITTING
SN# 0T979999 & BelowFITTING
SN# 0T979999 & Below -
1022-892403 FITTING
SN# 0T980000 & UpFITTING
SN# 0T980000 & Up -
1132-85978571 TUBING, (52.00 Inches Bulk), Cut to 6 InchesTUBING, (52.00 Inches Bulk), Cut to 6 Inches
-
1210-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1484-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
1554-858755 CLIP, (1.00)CLIP, (1.00)
-
1689790640T PCM, Propulsion Control Module
(75)PCM, Propulsion Control Module
(75) -
1689790641T PCM, Propulsion Control Module
(90) SN# 0T979999 & BelowPCM, Propulsion Control Module
(90) SN# 0T979999 & Below -
1689790641T PCM, Propulsion Control Module
(90) SN# 0T980000 & UpPCM, Propulsion Control Module
(90) SN# 0T980000 & Up -
1689790642T PCM, Propulsion Control Module
(115) SN# 0T979999 & BelowPCM, Propulsion Control Module
(115) SN# 0T979999 & Below -
1689790642T PCM, Propulsion Control Module
(115) SN# 0T980000 & UpPCM, Propulsion Control Module
(115) SN# 0T980000 & Up -
1710-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1812-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1925-834985 GROMMETGROMMET
-
2023-856954 BUSHINGBUSHING
-
21882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
22828102 BRACKETBRACKET
-
2325-818967 GROMMETGROMMET
-
2423-818968 BUSHINGBUSHING
-
258215832 PIN, SpecialPIN, Special
-
26889600 SPACER
SN# 0T979999 & BelowSPACER
SN# 0T979999 & Below -
26889600 SPACER
SN# 0T980000 & UpSPACER
SN# 0T980000 & Up -
2711-401376 NUT, (M6)NUT, (M6)
-
2854-858954 CLIP, (.625)CLIP, (.625)
-
2989-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
3025-822179 GROMMETGROMMET
-
3123-818968 BUSHINGBUSHING
-
3211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
3311-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
3484-883726A1 CABLE ASSEMBLY, Yellow/RedCABLE ASSEMBLY, Yellow/Red
-
3513-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3611-68292 NUT, (.312-18)NUT, (.312-18)
-
3784-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
3885-8500673 BOOT, Insulator - YellowBOOT, Insulator - Yellow
-
3984-819514T18 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
4084-878231A03 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
4184-882829A03 HARNESS ASSEMBLY, StarterHARNESS ASSEMBLY, Starter
-
4285-830233 BOOT, Insulator - RedBOOT, Insulator - Red
-
4384-880193T03 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
44858754 COVER, FuseCOVER, Fuse
-
4588-832969T05 FUSE, Mini - Tan - 5 AmpereFUSE, Mini - Tan - 5 Ampere
-
4688-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
47877613A1 CONNECTOR ASSEMBLY, 8 PinCONNECTOR ASSEMBLY, 8 Pin
-
4854-879962 CLIPCLIP
-
4984-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
5085-8500671 BOOT, Insulator - RedBOOT, Insulator - Red
-
5123-8502341 BUSHINGBUSHING
-
5212-4002318 WASHERWASHER
-
5310-82446035 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
5425-833155 GROMMETGROMMET
-
55880192T01 COVERCOVER
-
5625-821555001 GROMMET
SN# 0T931540 & BelowGROMMET
SN# 0T931540 & Below -
5625-821555001 GROMMET
SN# 0T931541 & UpGROMMET
SN# 0T931541 & Up -
5784-856583A07 CABLE ASSEMBLY, (12.00 Inches) BlackCABLE ASSEMBLY, (12.00 Inches) Black
-
58889992 SPACERSPACER
-
59858953 BRACKETBRACKET
-
6022-875207 TEE, FittingTEE, Fitting
-
6132-85978571 TUBING, (52.00 Inches Bulk), Cut to 1-1/2 InchesTUBING, (52.00 Inches Bulk), Cut to 1-1/2 Inches
-
6232-85978571 TUBING, (52.00 Inches Bulk), Cut to 52 InchesTUBING, (52.00 Inches Bulk), Cut to 52 Inches
-
6322-859747 COUPLERCOUPLER
-
6422-859732 PLUGPLUG
