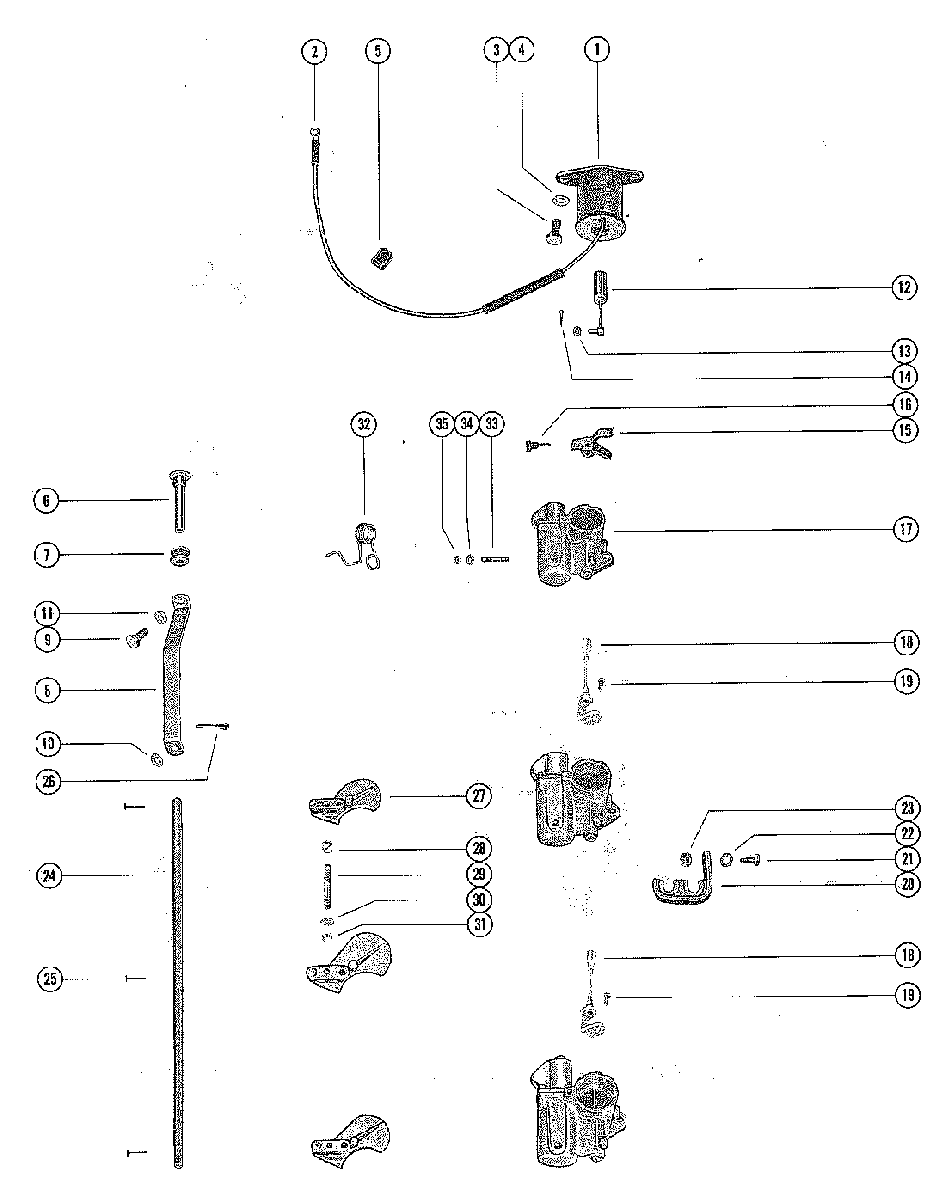

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 950 (6 CYL.) 1869776 THRU 2318585
-
№АртикулНазвание
-
137585 CHOKE SOLENOIDCHOKE SOLENOID
-
230050 TERMINAL, CHOKE SOLENOID LEADTERMINAL, CHOKE SOLENOID LEAD
-
145068 CHOKE SOLENOIDCHOKE SOLENOID
-
-13-26996 LOCKWASHER, SOLENOID TERMINALLOCKWASHER, SOLENOID TERMINAL
-
-11-68219 NUT, SOLENOID TERMINALNUT, SOLENOID TERMINAL
-
310-25299 SCREW, CHOKE SOLENOIDSCREW, CHOKE SOLENOID
-
413-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
554-33361 CLIP, CHOKE SOLENOID WIRECLIP, CHOKE SOLENOID WIRE
-
690242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
725-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
839469 "U" LINK, CHOKE KNOB TO CHOKE ROD
SERIAL 00000000-02019667"U" LINK, CHOKE KNOB TO CHOKE ROD
SERIAL 00000000-02019667 -
845458 "U" LINK, CHOKE KNOB
SERIAL 02019668-09999999"U" LINK, CHOKE KNOB
SERIAL 02019668-09999999 -
-23-45457 BUSHING - NYLON
SERIAL 02019668-09999999BUSHING - NYLON
SERIAL 02019668-09999999 -
910-69022 SCREW, "U" LINK TO CHOKE KNOBSCREW, "U" LINK TO CHOKE KNOB
-
1012-37998 WASHR, "U" LINKWASHR, "U" LINK
-
1113-26996 LOCKWASHER, "U" LINK SCREWLOCKWASHER, "U" LINK SCREW
-
1248315A4 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
1312-30164 WASHER, PLUNGER AND LINKWASHER, PLUNGER AND LINK
-
1418-26953 COTTER PIN, LINK TO UPPER CHOKE LEVERCOTTER PIN, LINK TO UPPER CHOKE LEVER
-
1527977 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
161395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
171335-2475 CARBURETOR ASSEMBLY, COMPLETECARBURETOR ASSEMBLY, COMPLETE
-
1853649A2 THROTTLE PICK-UP BRACKET ASSEMBLYTHROTTLE PICK-UP BRACKET ASSEMBLY
-
1910-29239 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
2026977 BRACKET, COIL LEAD RETAINERBRACKET, COIL LEAD RETAINER
-
2110-98253 SCREW, RETAINER BRACKET TO CENTER CARBURETORSCREW, RETAINER BRACKET TO CENTER CARBURETOR
-
2110-32417 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKETSCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET
-
2213-21272 LOCKWASHER, RETAINER BRACKET SCREWLOCKWASHER, RETAINER BRACKET SCREW
-
2311-20184 NUT, RETAINER BRACKET SCREWNUT, RETAINER BRACKET SCREW
-
2439470 ROD, CHOKE
SERIAL 00000000-02019667ROD, CHOKE
SERIAL 00000000-02019667 -
2445456 ROD, CHOKE
SERIAL 02019668-09999999ROD, CHOKE
SERIAL 02019668-09999999 -
2517-25391 RIVET, CHOKE SHUTTER TO CHOKE RODRIVET, CHOKE SHUTTER TO CHOKE ROD
-
2618-26953 COTTER PIN, CHOKE RODCOTTER PIN, CHOKE ROD
-
2747804 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2823-30438 BUSHING, NYLON - UPPER CHOKE SHUTTERBUSHING, NYLON - UPPER CHOKE SHUTTER
-
2916-30172 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
3012-30164 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
3111-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
3224-37678 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3310-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3423-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3511-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
