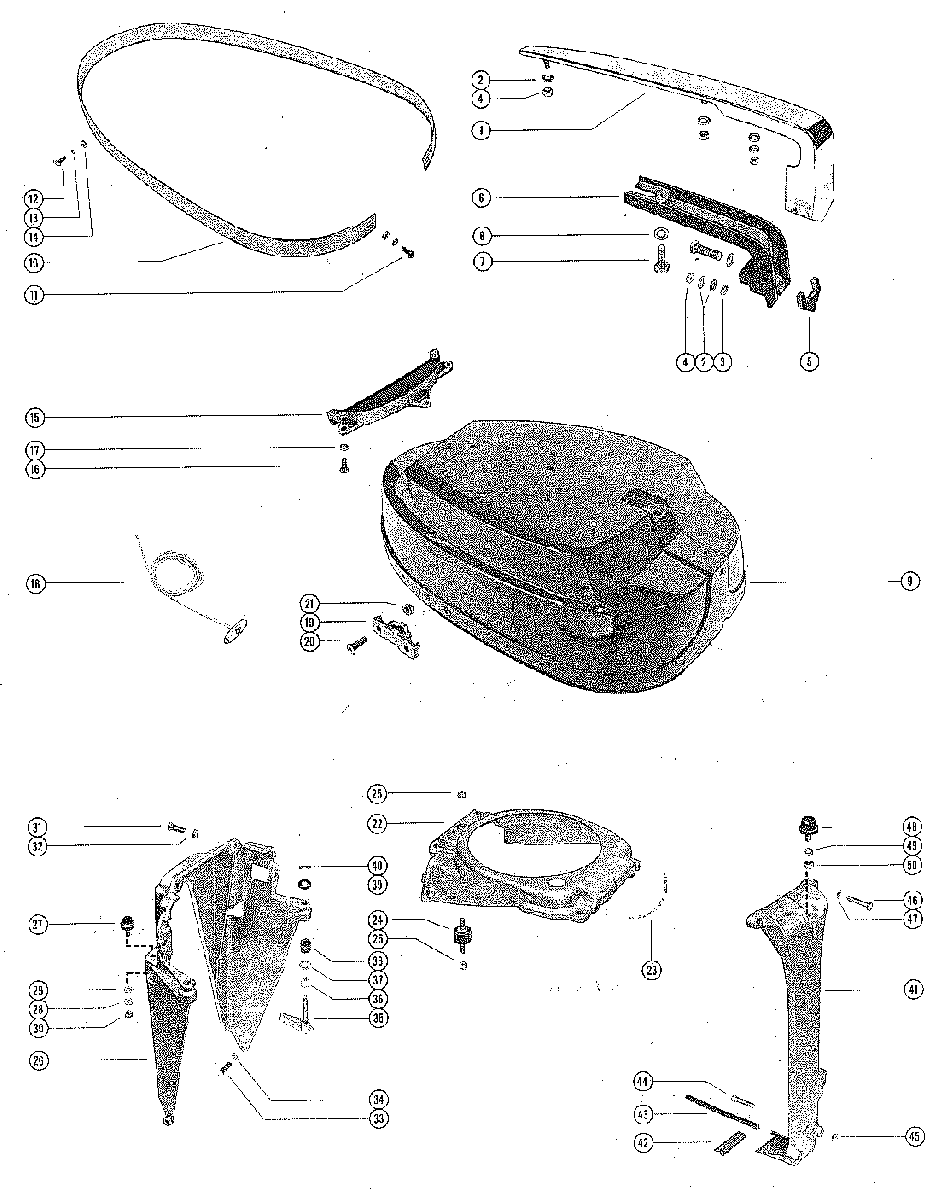

TOP COWL AND SUPPORT BRACKETS для Mercury - 950 (6 CYL.) 1869776 THRU 2318585
-
№АртикулНазвание
-
137408 HANDLE, CHROME - TOP COWLHANDLE, CHROME - TOP COWL
-
212-20533 WASHER, CHROME HANDLE TO INSIDE HANDLE STUDWASHER, CHROME HANDLE TO INSIDE HANDLE STUD
-
312-69056 WASHER, CHROME HANDLE TO INSIDE HANDLE STUD (FRONT)WASHER, CHROME HANDLE TO INSIDE HANDLE STUD (FRONT)
-
411-8267089 NUT, CHROME HANDLE TO INSIDE HANDLE STUDNUT, CHROME HANDLE TO INSIDE HANDLE STUD
-
535496 PAD, BUMPER - TOP COWL HANDLEPAD, BUMPER - TOP COWL HANDLE
-
637434 HANDLE, INSIDE - TOP COWLHANDLE, INSIDE - TOP COWL
-
710-35386 SCREW, HANDLE TO TOP COWL (1")SCREW, HANDLE TO TOP COWL (1")
-
813-26993 LCOKWASHER, HANDLE TO TOP COWL SCREWLCOKWASHER, HANDLE TO TOP COWL SCREW
-
92114-3806A1 COWL,TOPCOWL,TOP
-
1037410A1 TRIM MOULDING ASSEMBLY, TOP COWLTRIM MOULDING ASSEMBLY, TOP COWL
-
1110-29227 SCREW, BRASS - MOULDING TO TOP COWLSCREW, BRASS - MOULDING TO TOP COWL
-
1210-29226 SCREW, DECORATIVE - MOULDING TO TOP COWLSCREW, DECORATIVE - MOULDING TO TOP COWL
-
1313-26995 LOCKWASHER, MOULDING FASTENING SCREWLOCKWASHER, MOULDING FASTENING SCREW
-
1411-26419 NUT, MOULDING FASTENING SCREWNUT, MOULDING FASTENING SCREW
-
1576370 SHIELD, TOP COWL - REARSHIELD, TOP COWL - REAR
-
1610-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
1713-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
1847341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
1937411 BRACKET, COWL LATCH - TOP COWL FASTENINGBRACKET, COWL LATCH - TOP COWL FASTENING
-
2010-37560 SCREW, COWL LATCH BRACKET TO TOP COWLSCREW, COWL LATCH BRACKET TO TOP COWL
-
2111-37556 NUT, COWL LATCH BRACKET SCREWNUT, COWL LATCH BRACKET SCREW
-
2279897A4 FRAME, TOP COWL SUPPORTFRAME, TOP COWL SUPPORT
-
2337-45201 DECAL, TIMING - TOP COWL FRAMEDECAL, TIMING - TOP COWL FRAME
-
2490435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
2446096 MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
-
2511-8267089 NUT, RUBBER MOUNT TO TOP COWL FRAMENUT, RUBBER MOUNT TO TOP COWL FRAME
-
2639239 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
2731014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2826922 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2912-69057 WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
3011-20088 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKETNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
3110-26065 SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1" )SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1" )
-
3211-29250 NUT, REAR SUPPORT BRACKET SCREWNUT, REAR SUPPORT BRACKET SCREW
-
3310-74824 SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1-1/4")SCREW, REAR SUPPORT BRACKET TO BOTTOM COWL (1-1/4")
-
3413-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
3537412 LEVER, CLAMPING - TOP COWL MOUNTINGLEVER, CLAMPING - TOP COWL MOUNTING
-
3623-26819 BUSHING - NYLON - CLAMPING LEVERBUSHING - NYLON - CLAMPING LEVER
-
3712-38006 WASHER, CLAMPING LEVERWASHER, CLAMPING LEVER
-
3823-31293 BUSHING, RUBBER - CLAMPING LEVERBUSHING, RUBBER - CLAMPING LEVER
-
3911-30428 FASTENER, CLAMPING LEVERFASTENER, CLAMPING LEVER
-
4017-29077 PIN, ROLL - CLAMPING LEVERPIN, ROLL - CLAMPING LEVER
-
4145883A2 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONTBRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
-
4145883A2 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONTBRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
-
4145883A2 BRACKET ASSEMBLY, TOP COWL SUPPORT - FRONTBRACKET ASSEMBLY, TOP COWL SUPPORT - FRONT
-
4237903 FLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKETFLANGE, RUBBER - FRONT TOP COWL SUPPORT BRACKET
-
4332-8M0108355 HOSE, FRONT SUPPORT BRACKET TO BOTTOM COWLHOSE, FRONT SUPPORT BRACKET TO BOTTOM COWL
-
4410-78841 SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1-1/2")SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1-1/2")
-
4511-29250 NUT, FRONT SUPPORT BRACKET SCREWNUT, FRONT SUPPORT BRACKET SCREW
-
4610-73657 SCREW, FRONT SUPPORT BRACKET TO TOP COWL FRAME (1-1/2")SCREW, FRONT SUPPORT BRACKET TO TOP COWL FRAME (1-1/2")
-
4713-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
4837640 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
4913-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
5011-22053 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
