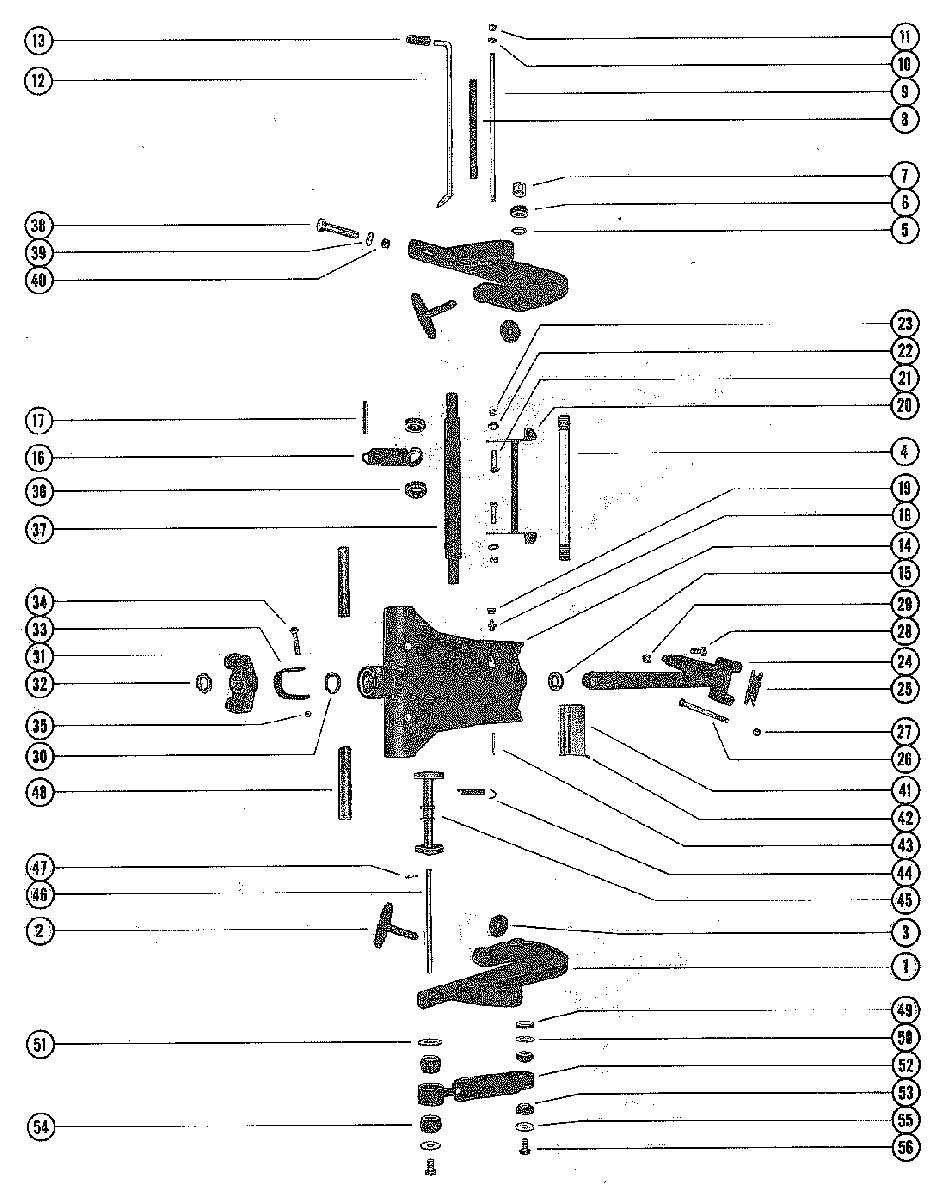

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 950 (6 CYL.) 1869776 THRU 2318585
-
№АртикулНазвание
-
11440-3296A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 SHIM, CLAMP BRACKET TILT TUBE (.010 -.020)SHIM, CLAMP BRACKET TILT TUBE (.010 -.020)
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-22053 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPERSLEEVE, RUBBER - TILT LOCK PIN BUMPER
-
141490-7256A2 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
-
141482-6386A4 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
1526-37448 OIL SEALOIL SEAL
-
1624-94891 SPRING, COIL - SWIVEL BRACKETSPRING, COIL - SWIVEL BRACKET
-
1717-38311 PIN, COIL SPRING MOUNTINGPIN, COIL SPRING MOUNTING
-
1822-69059 FITTING, GREASEFITTING, GREASE
-
1919-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
2030126A1 TILT STOP LEVER ASSEMBLYTILT STOP LEVER ASSEMBLY
-
2110-30128 SCREW, TILT STOP LEVER ANCHORSCREW, TILT STOP LEVER ANCHOR
-
2213-31030 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
2311-29250 NUT, LEVER ANCHOR SCREWNUT, LEVER ANCHOR SCREW
-
2417-49841A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
-
2417-49840A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
-
2528203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
2610-49554 BOLT, STEERING ARM TO UPPER MOUNTBOLT, STEERING ARM TO UPPER MOUNT
-
2711-34933 NUT, STEERING ARM BOLT FASTENINGNUT, STEERING ARM BOLT FASTENING
-
2810-31830 SCREW, RIDE - GUIDE ATTACHINGSCREW, RIDE - GUIDE ATTACHING
-
2911-8M0042636 NUT, RIDE - GUIDE ATTACHING SCREWNUT, RIDE - GUIDE ATTACHING SCREW
-
3012-37429 WASHER, SWIVEL PIN - LOWERWASHER, SWIVEL PIN - LOWER
-
3173984T YOKE, BOTTOMYOKE, BOTTOM
-
3211-37424 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
3328205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
3410-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSINGSCREW, STRAP STOP TO DRIVE SHAFT HOUSING
-
3511-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
3623-28688 SPACER, RUBBER - COIL SPRING POSITIONINGSPACER, RUBBER - COIL SPRING POSITIONING
-
3755-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
3810-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOMBOLT, CLAMP BRACKET TO BOAT TRANSOM
-
3912-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
4011-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
4138-56267 SERIAL PLATESERIAL PLATE
-
4210-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
4317-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
4424-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
4587431 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
4656349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
4718-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4855-696531 PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
-
4855-28414 PIN, LOWER SHOCK MOUNTING (LONG SHAFT)PIN, LOWER SHOCK MOUNTING (LONG SHAFT)
-
--10-28424 SCREW, LOWER SHOCK PIN (LONG SHAFT)SCREW, LOWER SHOCK PIN (LONG SHAFT)
-
--11-20184 NUT, LOWER SHOCK PIN SCREW (LONG SHAFT)NUT, LOWER SHOCK PIN SCREW (LONG SHAFT)
-
4923-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
5012-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
5112-840400 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
5255-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
5323-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
-
5423-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
5512-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
5610-28450 SCREW, NYLOK - UPPER AND LOWER SHOCK MOUNTING PINSCREW, NYLOK - UPPER AND LOWER SHOCK MOUNTING PIN
