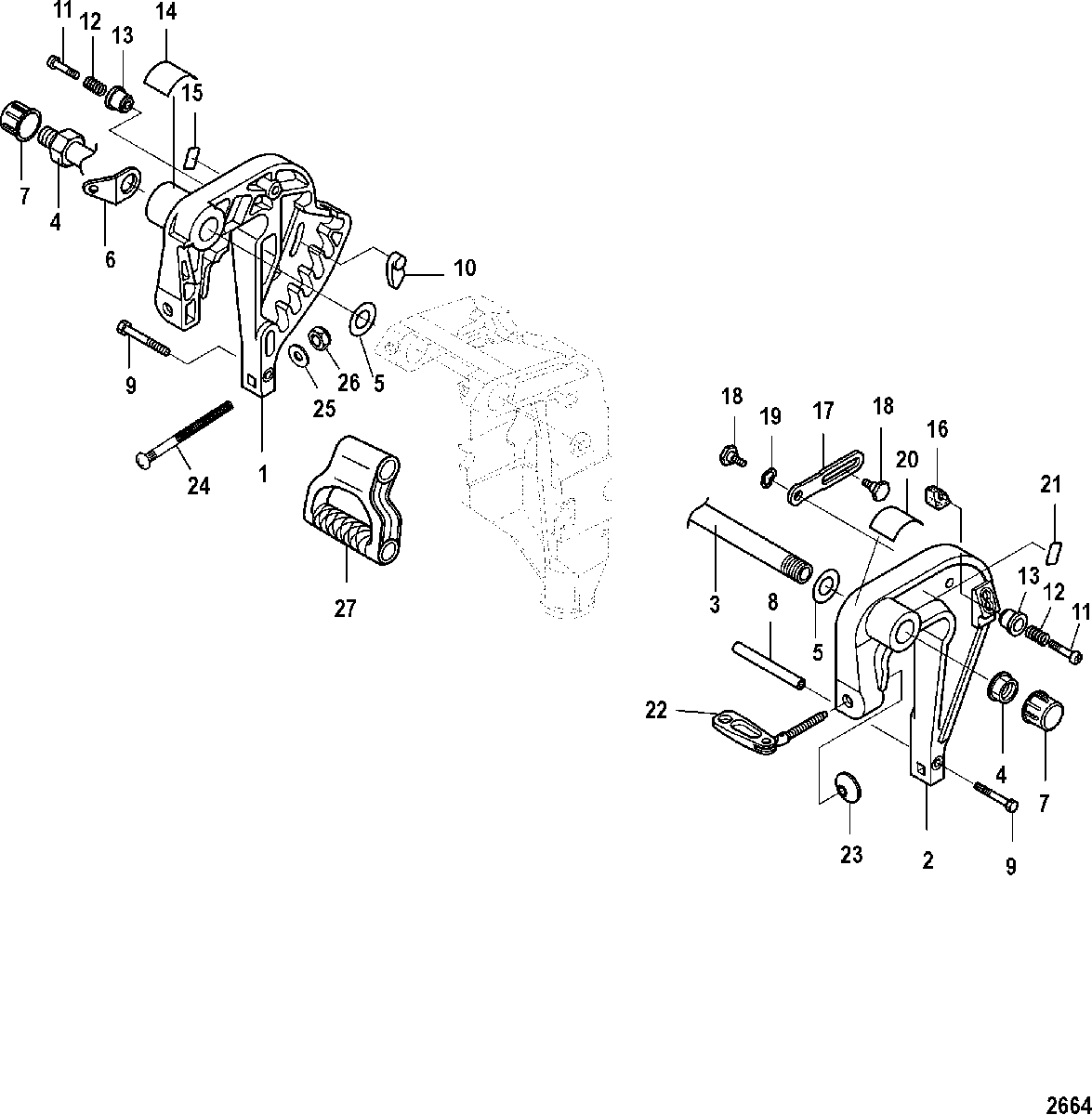

Clamp Brackets, Non-Power Tilt для Mercury - 9.9 (4-STROKE)(209cc) 0R042475 & Up
-
№АртикулНазвание
-
13406-815030T06 CLAMP BRACKET, Starboard
SN# 0R068397 & BelowCLAMP BRACKET, Starboard
SN# 0R068397 & Below -
13406-815030T06 CLAMP BRACKET, Starboard
SN# 0R068398 & UpCLAMP BRACKET, Starboard
SN# 0R068398 & Up -
23406-815031T06 CLAMP BRACKET, Port
SN# 0R068397 & BelowCLAMP BRACKET, Port
SN# 0R068397 & Below -
23406-815031T06 CLAMP BRACKET, Port
SN# 0R068398 & UpCLAMP BRACKET, Port
SN# 0R068398 & Up -
3898101191 TILT TUBETILT TUBE
-
411-853722029 NUTNUT
-
512-95375001 WASHERWASHER
-
6895163002 PLATEPLATE
-
711-85372214 CAP NUT
HandleCAP NUT
Handle -
8803771001 SPACERSPACER
-
910-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
10895164 CAM, Trim Position SettingCAM, Trim Position Setting
-
1110-855544015 SCREWSCREW
-
1224-813028004 SPRINGSPRING
-
13815096001 KNOBKNOB
-
14NSS NOT SOLD SEPARATE, Decal-Trim PositionNOT SOLD SEPARATE, Decal-Trim Position
-
1537-128671 DECAL, Lower Tilt LimitDECAL, Lower Tilt Limit
-
16895165 TILT LOCKTILT LOCK
-
17895169 TILT STRAPTILT STRAP
-
1810-895170 BOLTBOLT
-
1913-8537232 WAVE WASHERWAVE WASHER
-
20NSS NOT SOLD SEPARATE, PilotNOT SOLD SEPARATE, Pilot
-
21NSS NOT SOLD SEPARATE, Tilt LockNOT SOLD SEPARATE, Tilt Lock
-
2210-8M0060117 THUMB SCREW ASSEMBLY, 14 MM Thread SizeTHUMB SCREW ASSEMBLY, 14 MM Thread Size
-
2312-95379 PADPAD
-
-56-92729A49 HARDWARE KIT, Transom Mounting
Standard/Bigfoot Non TrimHARDWARE KIT, Transom Mounting
Standard/Bigfoot Non Trim -
2410-43216 BOLT, (.250-20 x 3.50)
Standard/Bigfoot Non TrimBOLT, (.250-20 x 3.50)
Standard/Bigfoot Non Trim -
2512-67983 WASHER
Standard/Bigfoot Non TrimWASHER
Standard/Bigfoot Non Trim -
2611-8267118 NUT, (.250-20)
Standard/Bigfoot Non TrimNUT, (.250-20)
Standard/Bigfoot Non Trim -
27815082002 HANDLE, CarryingHANDLE, Carrying
