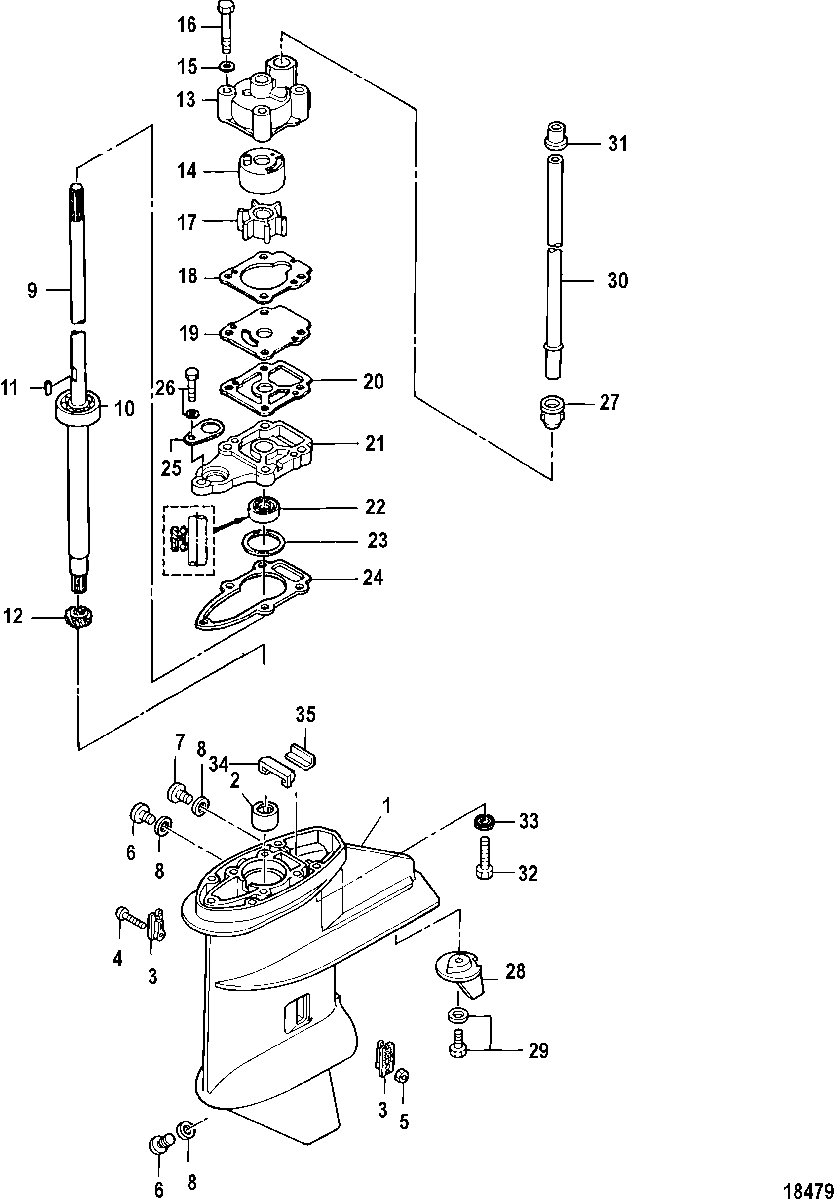

Gear Housing, Driveshaft-Non Bigfoot для Mercury - 9.9 (4-STROKE)(209cc) 0R042475 & Up
-
№АртикулНазвание
-
-8M0135929 GEAR HOUSING ASSEMBLY, Complete
ShortGEAR HOUSING ASSEMBLY, Complete
Short -
-8M0135931 GEAR HOUSING ASSEMBLY, Complete
LongGEAR HOUSING ASSEMBLY, Complete
Long -
11668-895154T01 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
231-803675004 BEARING, RollerBEARING, Roller
-
3803730001 STRAINER, WaterSTRAINER, Water
-
410-17635 SCREWSCREW
-
511-85372210 NUTNUT
-
622-953683 PLUGPLUG
-
722-953683 PLUG, WaterPLUG, Water
-
88M0082880 GASKETGASKET
-
945-803738017 DRIVESHAFT
ShortDRIVESHAFT
Short -
945-803738018 DRIVESHAFT
LongDRIVESHAFT
Long -
1030-161326 BEARING, BallBEARING, Ball
-
1117-9521811 PIN, Roll - Stainless SteelPIN, Roll - Stainless Steel
-
1243-8037401 GEAR, PinionGEAR, Pinion
-
1346-803750A02 HOUSING ASSEMBLY, Upper Water PumpHOUSING ASSEMBLY, Upper Water Pump
-
148037511 LINER, Stainless Steel, Water PumpLINER, Stainless Steel, Water Pump
-
1512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1610-879194305 BOLT, Stainless SteelBOLT, Stainless Steel
-
1747-8037481 IMPELLERIMPELLER
-
1827-8M0072137 GASKETGASKET
-
198037531 GUIDE PLATE, Stainless SteelGUIDE PLATE, Stainless Steel
-
2027-8M0072138 GASKETGASKET
-
2146-803750A01 BASE ASSEMBLY, Water Pump, LowerBASE ASSEMBLY, Water Pump, Lower
-
2226-95348 SEAL, OilSEAL, Oil
-
2315-8537955 SHIMSHIM
-
2427-8M0072139 GASKET, LowerGASKET, Lower
-
2516165 RETAINERRETAINER
-
2610-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
2725-804903 GROMMET, LowerGROMMET, Lower
-
28853762T01 TRIM TABTRIM TAB
-
2910-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3032-803755004 TUBE, Water
ShortTUBE, Water
Short -
3032-803755005 TUBE, Water
LongTUBE, Water
Long -
3125-804899002 GROMMET, UpperGROMMET, Upper
-
3210-879194304 BOLTBOLT
-
3312-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
34895155 SEAL, WaterSEAL, Water
-
35895156 PLATE, Water SealPLATE, Water Seal
-
-27-8M0082883 GASKET SET, Lower UnitGASKET SET, Lower Unit
-
-46-803750A03 PUMP KIT, Water - CompletePUMP KIT, Water - Complete
-
-853792T11 REPAIR KIT, Water Pump - ChromeREPAIR KIT, Water Pump - Chrome
-
-47-803748K01 REPAIR KIT, Water Impeller
Mercury BrandREPAIR KIT, Water Impeller
Mercury Brand -
-47-803748Q01 REPAIR KIT, Water Impeller
Quicksilver BrandREPAIR KIT, Water Impeller
Quicksilver Brand
