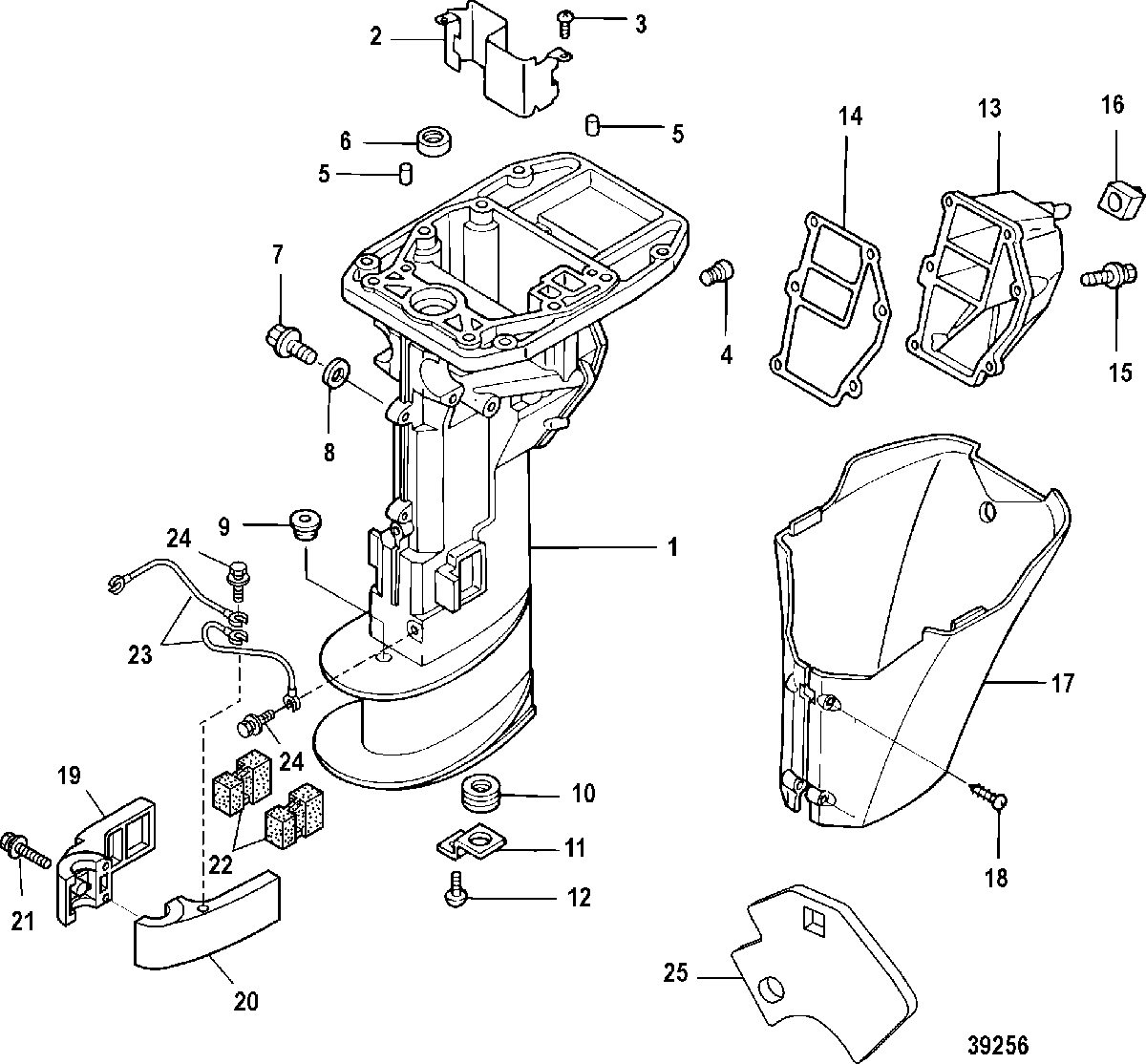

Driveshaft Housing, Non Bigfoot для Mercury - 9.9 (4-STROKE)(209cc) 0R042475 & Up
-
№АртикулНазвание
-
11599-803724T01 HOUSING, Driveshaft
ShortHOUSING, Driveshaft
Short -
11599-803725T07 HOUSING, Driveshaft
LongHOUSING, Driveshaft
Long -
2895135001 GUIDE PLATE
SN# 0R068397 & BelowGUIDE PLATE
SN# 0R068397 & Below -
2895135001 GUIDE PLATE
SN# 0P400999 & BelowGUIDE PLATE
SN# 0P400999 & Below -
2895135001 GUIDE PLATE
SN# 0R068398 & UpGUIDE PLATE
SN# 0R068398 & Up -
2895135001 GUIDE PLATE
SN# 0P401000 & UpGUIDE PLATE
SN# 0P401000 & Up -
310-8555441 SCREWSCREW
-
419-803593 PLUG, Exhaust
As neededPLUG, Exhaust
As needed -
517-16119 PIN, DowelPIN, Dowel
-
626-85370712 SEAL, OilSEAL, Oil
-
78M0111615 BOLT, DrainBOLT, Drain
-
812-895146 WASHERWASHER
-
925-161181 GROMMETGROMMET
-
1025-881305004 GROMMETGROMMET
-
11810753003 LOCK PLATELOCK PLATE
-
1210-823042067 SCREWSCREW
-
13895147T COVER, Idle PortCOVER, Idle Port
-
1427-895148 GASKET, Idle PortGASKET, Idle Port
-
1510-810755007 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1625-881305003 GROMMETGROMMET
-
17895149T COVER, Driveshaft HousingCOVER, Driveshaft Housing
-
1810-162572 SCREW, TappingSCREW, Tapping
-
19803776004 BRACKET, Starboard, MountBRACKET, Starboard, Mount
-
20803776005 BRACKET, Port, MountBRACKET, Port, Mount
-
2110-879194269 BOLTBOLT
-
22803775006 MOUNT, Starboard / Port, Rubber - LowerMOUNT, Starboard / Port, Rubber - Lower
-
2384-898101091 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
2410-8230427 BOLTBOLT
-
258M4501418 SOUND BLANKET
EU MODELSSOUND BLANKET
EU MODELS -
-27-835427A04 GASKET SET, PowerheadGASKET SET, Powerhead
