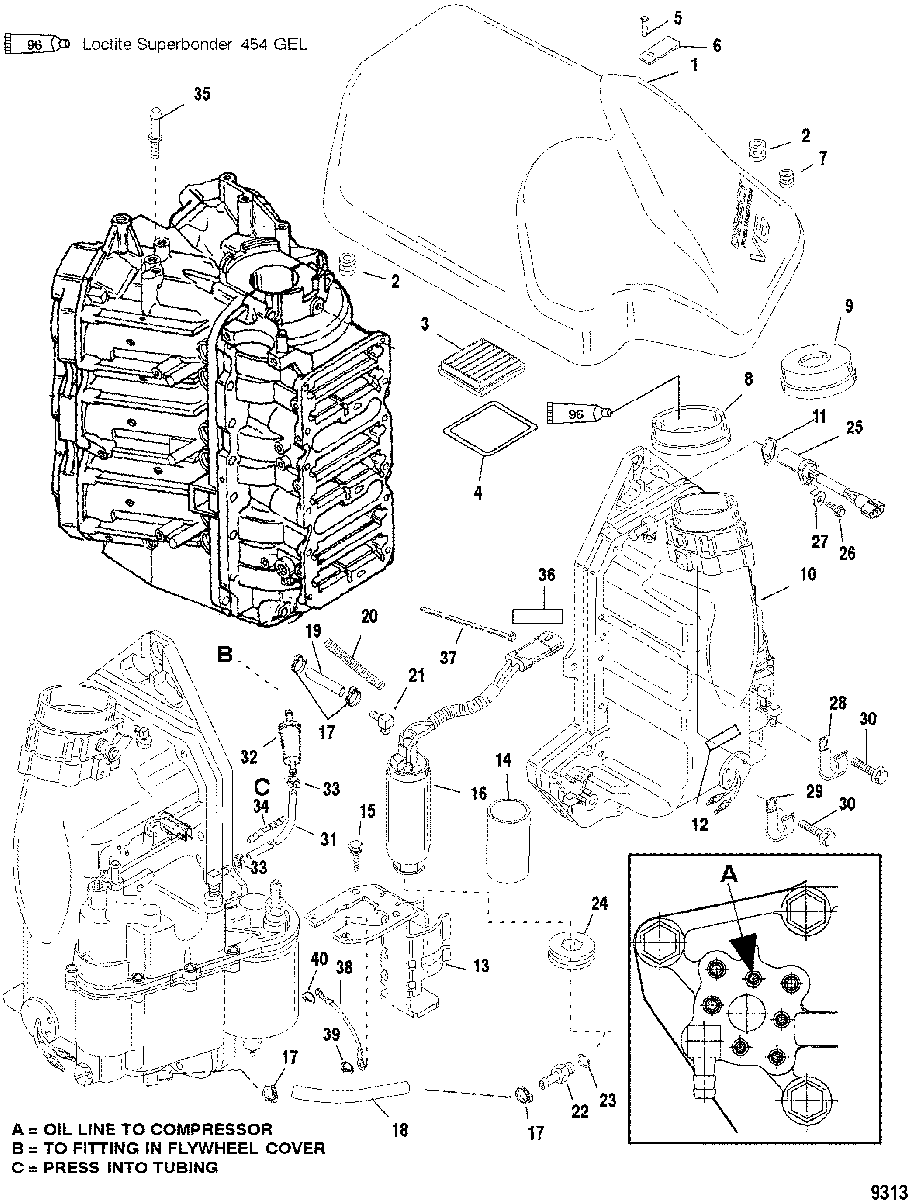

Air Handler для Mercury - V-135 DFI (2.5L) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1827325A7 COVER ASSEMBLYCOVER ASSEMBLY
-
225-821555001 GROMMETGROMMET
-
335-853333T FILTERFILTER
-
4853352 COVERCOVER
-
517-855590 RIVETRIVET
-
6854633 RETAINERRETAINER
-
725-857101 GROMMETGROMMET
-
825-855613 GROMMET
(150)GROMMET
(150) -
925-8556131 GROMMET
(135)GROMMET
(135) -
10855633A15 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1115-856139 SHIMSHIM
-
1115-8561391 SHIM
(.010 THICK)SHIM
(.010 THICK) -
12NSS NOT SOLD SEPARATE, Decal-Caution Start in GearNOT SOLD SEPARATE, Decal-Caution Start in Gear
-
13855756A1 BRACKETBRACKET
-
1423-803818 SLEEVESLEEVE
-
1510-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
168M0047624 PUMP ASSEMBLYPUMP ASSEMBLY
-
1754-13791 CLAMP, (15.7)CLAMP, (15.7)
-
1832-856778 HOSEHOSE
-
1932-85564361 HOSE (18 IN.)HOSE (18 IN.)
-
2023-83312531 INSULATING SLEEVEINSULATING SLEEVE
-
2122-855802A1 ELBOWELBOW
-
2222-880862A1 FITTINGFITTING
-
2325-805062 O-RING, (.530 x .082)O-RING, (.530 x .082)
-
2425-856928 GROMMETGROMMET
-
258285581 ENCODERENCODER
-
2610-418051 SCREW, (#10-24 x .620)SCREW, (#10-24 x .620)
-
2712-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2854-97224 J CLIP (UPPER STBD.)J CLIP (UPPER STBD.)
-
2954-65292 J CLIP (LOWER)J CLIP (LOWER)
-
3010-817504 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
3132-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5-3/4 Inches)HOSE, (57.00 Inches Bulk) (Cut to 5-3/4 Inches)
-
3235-855896T FILTERFILTER
-
3354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3422-860273 CONNECTORCONNECTOR
-
358215832 PINPIN
-
3637-856985A13 DECAL, EPA Label Information
(1999)DECAL, EPA Label Information
(1999) -
3761990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
3884-88807A27 CABLE ASSEMBLYCABLE ASSEMBLY
-
3912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4012-12038 WASHERWASHER
-
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886267 & UpPOWERHEAD ASSEMBLY
SN# 0G886267 & Up -
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886266 & BelowPOWERHEAD ASSEMBLY
SN# 0G886266 & Below
