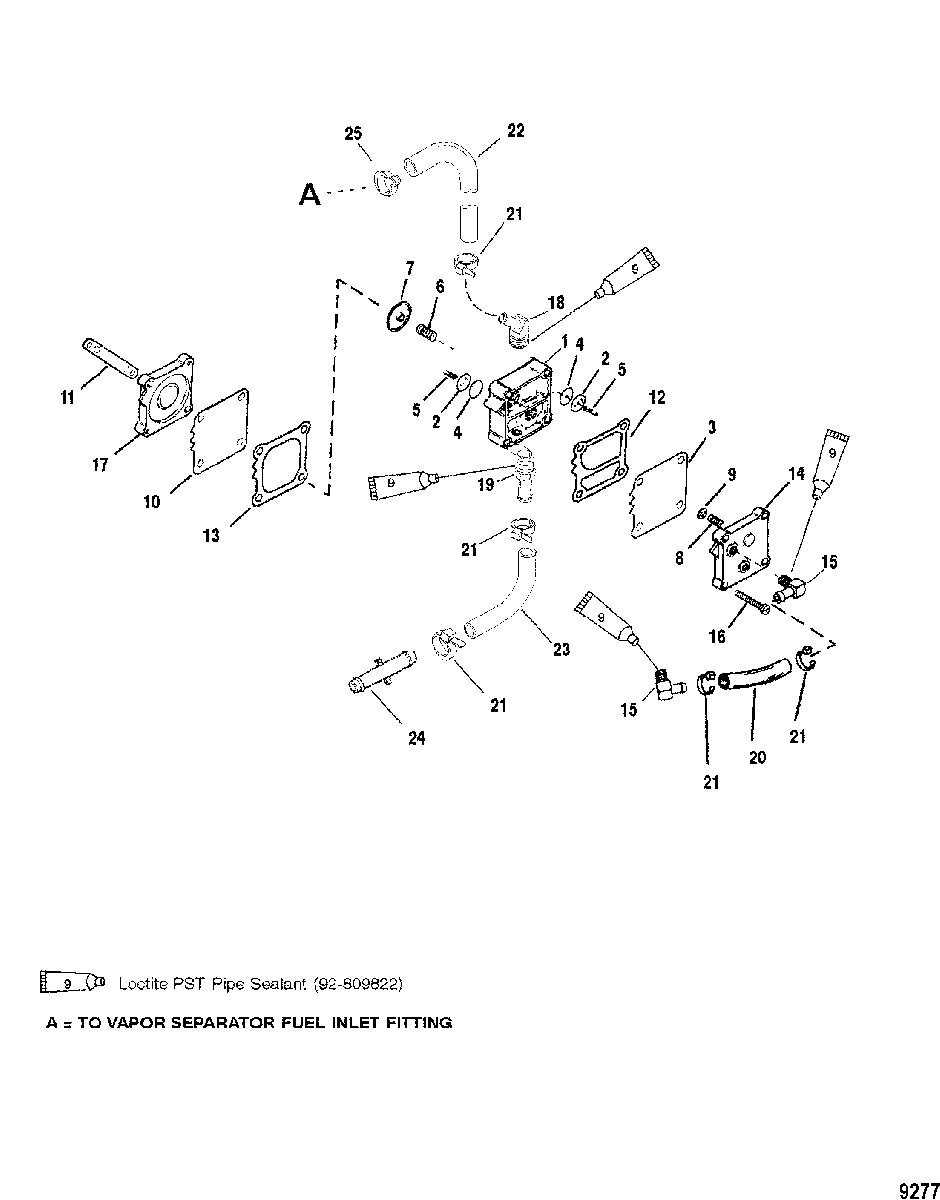

Fuel Pump для Mercury - V-135 DFI (2.5L) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
114360T75 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, Check Valve-RubberNOT SOLD SEPARATE, Check Valve-Rubber
-
5NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
6NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
7NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
8NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
9NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
10NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1127-987691 GASKETGASKET
-
12NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
13NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
14987752 PLATEPLATE
-
1522-996642 ELBOWELBOW
-
1610-82104540 SCREW, (M5 x 40), Fuel PumpSCREW, (M5 x 40), Fuel Pump
-
1610-82130050 SCREW, (M6 x 50), Pump to CrankcaseSCREW, (M6 x 50), Pump to Crankcase
-
17144303 BASEBASE
-
1822-782792 ELBOW (45 DEGREES)ELBOW (45 DEGREES)
-
1922-291112 FITTINGFITTING
-
2032-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2232-8M0064784 TUBING (W/INSULATING SLEEVE) (7 IN.)TUBING (W/INSULATING SLEEVE) (7 IN.)
-
2332-8M0043979 HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) (W/INSULATING SLEEVE) (18 IN.)HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) (W/INSULATING SLEEVE) (18 IN.)
-
2422-822769 CONNECTORCONNECTOR
-
2554-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
-27-8M0046714 GASKET SETGASKET SET
-
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886267 & UpPOWERHEAD ASSEMBLY
SN# 0G886267 & Up -
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886266 & BelowPOWERHEAD ASSEMBLY
SN# 0G886266 & Below
