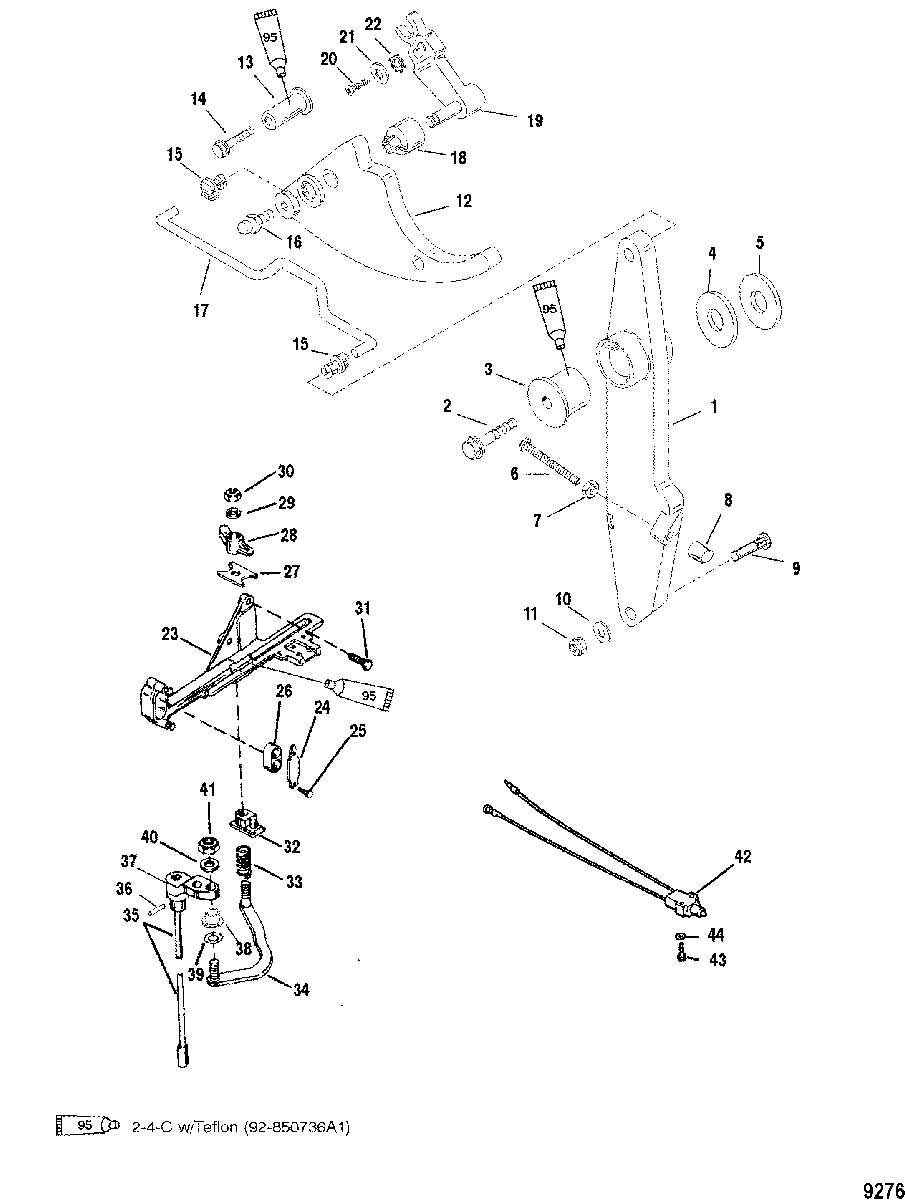

Throttle Lever and Shift Shaft для Mercury - V-135 DFI (2.5L) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
18M0040990 LEVERLEVER
-
210-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
323-55164 BUSHINGBUSHING
-
412-74759 WASHER, (.391 x .880 x .125) Stainless SteelWASHER, (.391 x .880 x .125) Stainless Steel
-
512-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
610-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
711-64015 NUT, (.250-20)NUT, (.250-20)
-
826852 CAP, NylonCAP, Nylon
-
942927 INSERTINSERT
-
1012-35459 WASHERWASHER
-
1111-401386 NUT, (M6)NUT, (M6)
-
12856221A1 CAMCAM
-
1323-852970 BUSHINGBUSHING
-
1410-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1523-932481 BUSHINGBUSHING
-
168235694 BALL, ThreadedBALL, Threaded
-
178508152 LINKLINK
-
1867748 ROLLERROLLER
-
19850286A03 ROLLER, ThrottleROLLER, Throttle
-
2010-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2213-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
23814283T6 BRACKET, AnchorBRACKET, Anchor
-
2498889 LATCHLATCH
-
2510-42975 DRIVE SCREWDRIVE SCREW
-
2639519 CUPCUP
-
2752100 WEAR PLATEWEAR PLATE
-
288M0036768 LATCHLATCH
-
2912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3011-826709109 NUT, (.250-28)NUT, (.250-28)
-
3110-28782 SCREW, (.312-18 x .880) Stainless SteelSCREW, (.312-18 x .880) Stainless Steel
-
32814284 GUIDE BLOCKGUIDE BLOCK
-
3324-20099 SPRINGSPRING
-
3467073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
3579932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
3579932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
36NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
37NSS NOT SOLD SEPARATE, Shift Shaft Lever-UpperNOT SOLD SEPARATE, Shift Shaft Lever-Upper
-
3823-26856 BUSHINGBUSHING
-
3913-29720 WAVE WASHERWAVE WASHER
-
4012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4111-826709109 NUT, (.250-28)NUT, (.250-28)
-
4287-8M0052931 SWITCHSWITCH
-
4310-77478 SCREW, (#6-32 x .875)SCREW, (#6-32 x .875)
-
4412-27882 WASHERWASHER
