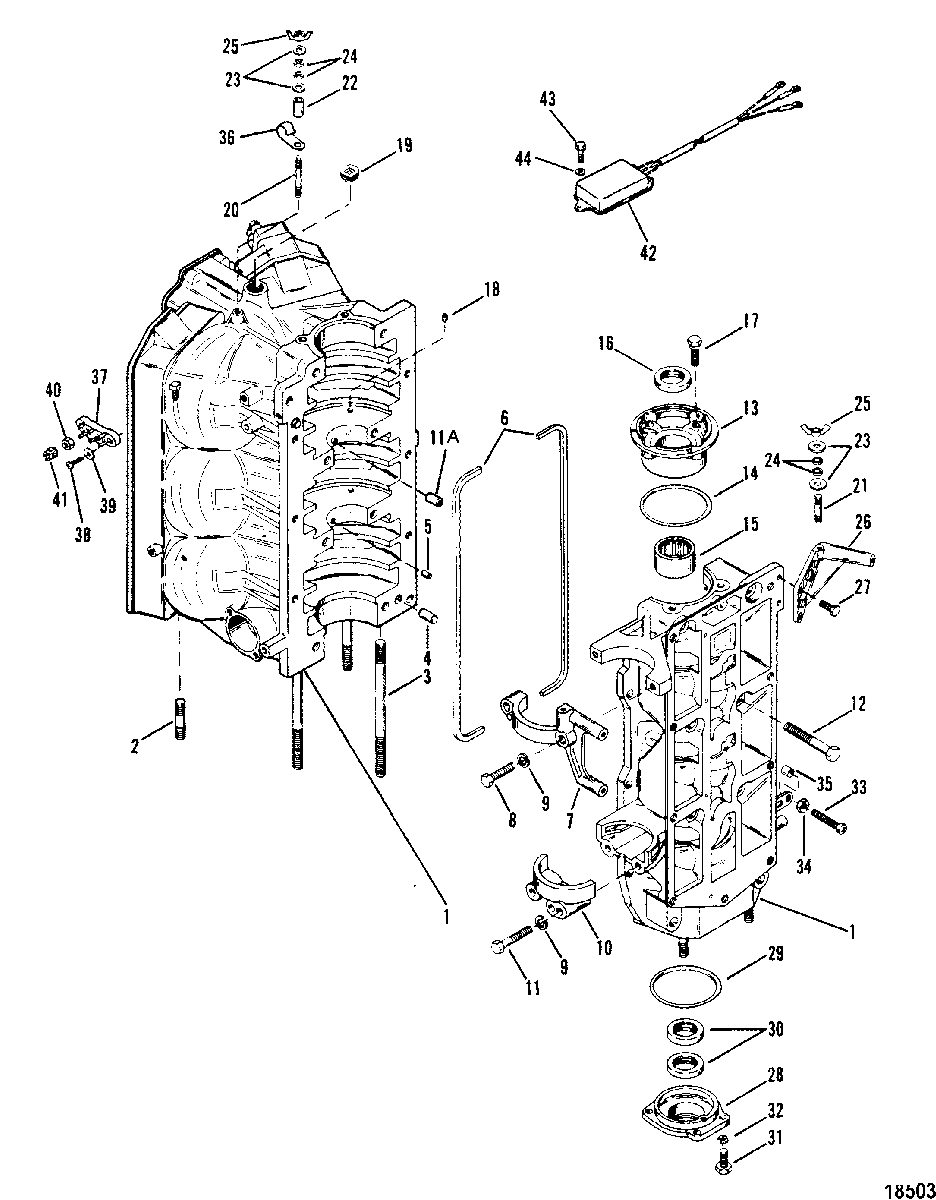

Cylinder Block and End Caps для Mercury - V-150 0C100861 THRU 0C239552

№

Артикул

Название
1

858-8711T19 CYLINDER BLOCK

CYLINDER BLOCK

0 ₽
2

16-76175 STUD, POWERHEAD (1-7/8")

STUD, POWERHEAD (1-7/8")

860 ₽
3

16-670654 STUD, POWERHEAD (5-1/2")

STUD, POWERHEAD (5-1/2")

870 ₽
3

16-8M0034454 STUD, POWERHEAD (6-3/4")

STUD, POWERHEAD (6-3/4")

1 130 ₽
4

17-43044 PIN, Dowel, LOCATING

PIN, Dowel, LOCATING

200 ₽
5

17-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)

PIN, CYLINDER BLOCK (BEARING RACE)

270 ₽
6

27-11338 GASKET, SEALING

GASKET, SEALING

150 ₽
7

8M0088723 COVER, STARTER MOTOR (UPPER)

COVER, STARTER MOTOR (UPPER)

14 890 ₽
8

10-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASE

SCREW, (.312-18 x 1.50), COVER TO CRANKCASE

230 ₽
9

13-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREW

LOCKWASHER, (.312), STARTER MOTOR COVER SCREW

140 ₽
10

76867 COVER, STARTER MOTOR (LOWER)

COVER, STARTER MOTOR (LOWER)

2 450 ₽
11

10-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASE

SCREW, (.312-18 x 2), COVER TO CRANKCASE

340 ₽
11A

23-99448 BUSHING

BUSHING

320 ₽
12

10-66717 SCREW, (.375-16 x 3.250)

SCREW, (.375-16 x 3.250)

380 ₽
12

10-74824 SCREW, (.312-18 x 1.250)

SCREW, (.312-18 x 1.250)

140 ₽
13

1159-9608T1 END CAP ASSEMBLY, UPPER

END CAP ASSEMBLY, UPPER

35 690 ₽
14

25-54029 O-RING, END CAP

O-RING, END CAP

480 ₽
15

31-93496T ROLLER BEARING, END CAP

ROLLER BEARING, END CAP

27 160 ₽
16

26-41953 SEAL, END CAP

SEAL, END CAP

1 140 ₽
17

10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)

SCREW WITH LOCKWASHER, (.312-18 x 1.00)

70 ₽
18

10-24220 SCREW, (.190-24 x .19), SET - CYLINDER BLOCK

SCREW, (.190-24 x .19), SET - CYLINDER BLOCK

0 ₽
19

22-38407 PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET) (OLD DESIGN)

PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET) (OLD DESIGN)

600 ₽
20

16-15094 STUD, (.190-32 x 1.870)

STUD, (.190-32 x 1.870)

630 ₽
21

16-8M0034435 STUD, (#10-32 x 1.00)

STUD, (#10-32 x 1.00)

800 ₽
22

23-67269 SPACER, FLYWHEEL COVER STUD

SPACER, FLYWHEEL COVER STUD

380 ₽
23

12-49221 WASHER, FLYWHEEL COVER STUD

WASHER, FLYWHEEL COVER STUD

90 ₽
24

12-72761 WASHER, FLYWHEEL COVER STUD

WASHER, FLYWHEEL COVER STUD

140 ₽
25

11-816874 NUT, FLYWHEEL COVER STUD

NUT, FLYWHEEL COVER STUD

170 ₽
26

422482 BRACKET, FLYWHEEL COVER

BRACKET, FLYWHEEL COVER

4 640 ₽
27

10-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE

SCREW, (.250-20 x .750), BRACKET TO CRANKCASE

100 ₽
28

1156-7809T1 END CAP ASSEMBLY, LOWER

END CAP ASSEMBLY, LOWER

25 510 ₽
29

25-62700 O-RING, (3.250 Inside Diameter), END CAP

O-RING, (3.250 Inside Diameter), END CAP

400 ₽
30

26-41953 SEAL, END CAP

SEAL, END CAP

1 140 ₽
31

10-28636 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)

90 ₽
32

13-26992 LOCKWASHER, (.250), LOWER END CAP SCREW

LOCKWASHER, (.250), LOWER END CAP SCREW

70 ₽
33

10-64022 SCREW, (.250-20 x 2.125), ADJUSTING-CYLINDER BLOCK

SCREW, (.250-20 x 2.125), ADJUSTING-CYLINDER BLOCK

270 ₽
34

11-64015 NUT, (.250-20), JAM - ADJUSTING SCREW

NUT, (.250-20), JAM - ADJUSTING SCREW

150 ₽
35

26852 CAP, NYLON - ADJUSTING SCREW

CAP, NYLON - ADJUSTING SCREW

320 ₽
-

66517 RESTRICTOR, BLEED - CYLINDER BLOCK

RESTRICTOR, BLEED - CYLINDER BLOCK

170 ₽
36

54-63153 J CLIP

J CLIP

70 ₽
37

86-194372 TERMINAL BLOCK

TERMINAL BLOCK

0 ₽
38

10-48409 SCREW, (#10-16 x .625)

SCREW, (#10-16 x .625)

140 ₽
39

12-89302 WASHER, (.203 x .406 x .040)

WASHER, (.203 x .406 x .040)

130 ₽
40

11-45076 NUT, (#10-32)

NUT, (#10-32)

120 ₽
41

11-813938 CAPNUT, (#10-32)

CAPNUT, (#10-32)

210 ₽
42

87076A4 IDLE SPEED CONTROL ASSEMBLY

IDLE SPEED CONTROL ASSEMBLY

29 010 ₽
43

10-690201 SCREW, (#10-32 x .875), IDLE SPEED CONTROL

SCREW, (#10-32 x .875), IDLE SPEED CONTROL

180 ₽
44

12-38833 WASHER, IDLE SPEED CONTROL SCREW

WASHER, IDLE SPEED CONTROL SCREW

220 ₽
-

812815T89 POWERHEAD

POWERHEAD

0 ₽
-

813922A89 POWERHEAD
(Mariner 135)

POWERHEAD
(Mariner 135)

0 ₽
-

27-90484A88 GASKET SET

GASKET SET

20 380 ₽
