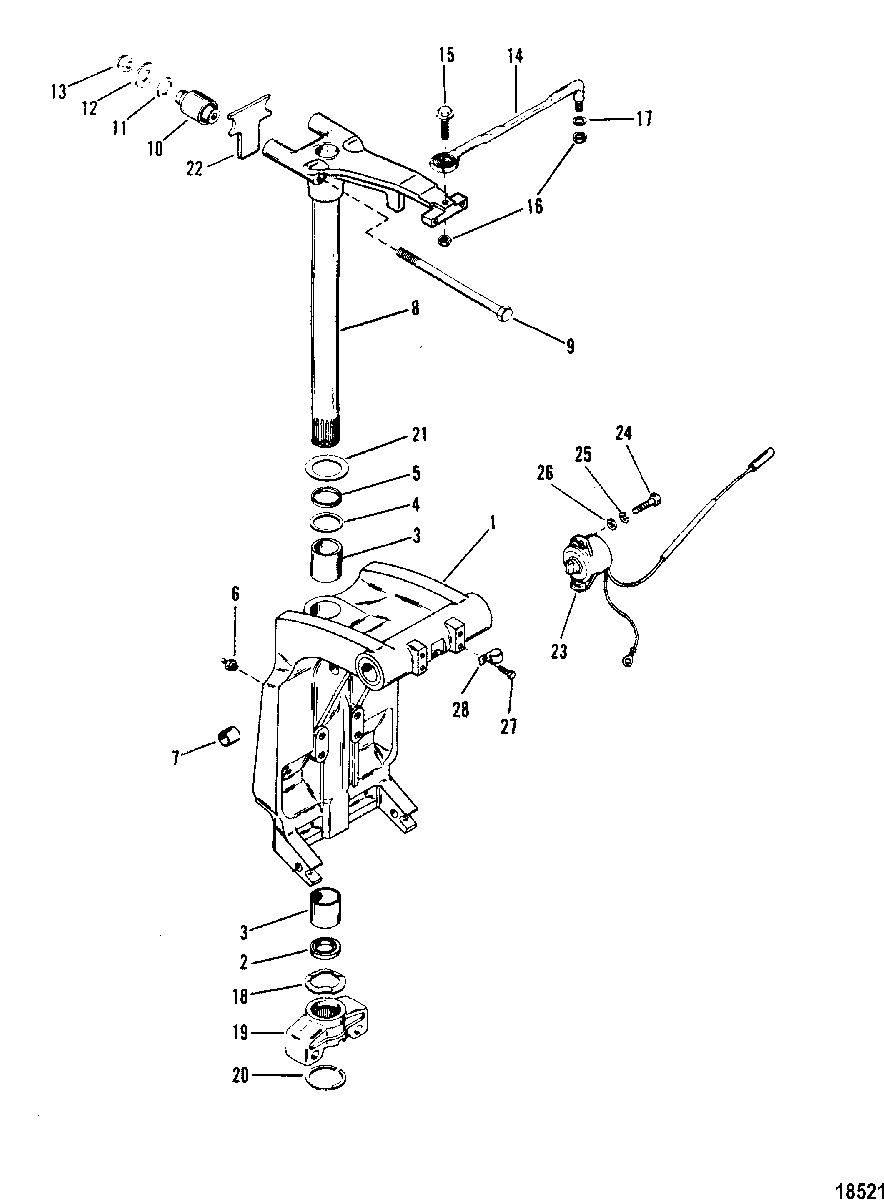

Swivel Bracket and Steering Arm для Mercury - V-150 0C100861 THRU 0C239552
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (BLACK)SWIVEL BRACKET ASSEMBLY (BLACK)
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (GRAY)SWIVEL BRACKET ASSEMBLY (GRAY)
-
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPERBUSHING, SWIVEL BRACKET - LOWER AND UPPER
-
425-33466 O-RING, SWIVEL BRACKET - UPPERO-RING, SWIVEL BRACKET - UPPER
-
523-67668 SPACER, SWIVEL BRACKET - UPPERSPACER, SWIVEL BRACKET - UPPER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
817-8M0132731 SWIVEL PINE AND STEERING ARM BLACKSWIVEL PINE AND STEERING ARM BLACK
-
817-8M0132731 SWIVEL PINE AND STEERING ARM GRAYSWIVEL PINE AND STEERING ARM GRAY
-
910-8M0000491 SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNTSCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
-
1077326 MOUNT, RUBBER - UPPER (LONG)MOUNT, RUBBER - UPPER (LONG)
-
1077326 MOUNT, RUBBER - UPPER (X-LONG)MOUNT, RUBBER - UPPER (X-LONG)
-
1112-66921 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1212-78688 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, (.437-20), UPPER MOUNT BOLTNUT, (.437-20), UPPER MOUNT BOLT
-
1492876A12 STEERING LINK ASSEMBLY
MERCURY AND MARINERSTEERING LINK ASSEMBLY
MERCURY AND MARINER -
1510-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
MERCURY AND MARINERSCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
MERCURY AND MARINER -
1611-8M0042636 NUT, (.375-24), STEERING LINK SCREW
MERCURY AND MARINERNUT, (.375-24), STEERING LINK SCREW
MERCURY AND MARINER -
1712-34931 WASHER, (.406 x .734 x .063) SS, STEERING LINK TO STEERING ARM
MERCURY AND MARINERWASHER, (.406 x .734 x .063) SS, STEERING LINK TO STEERING ARM
MERCURY AND MARINER -
1813-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
19878182T01 BOTTOM YOKEBOTTOM YOKE
-
19878182T01 BOTTOM YOKEBOTTOM YOKE
-
2053-67684 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
2112-67670 WASHER, THRUST - SWIVEL BRACKETWASHER, THRUST - SWIVEL BRACKET
-
2288882 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
238M0098273 TRIM SENDER ASSEMBLYTRIM SENDER ASSEMBLY
-
2410-852368 SCREW, (#10-24 x .750), TRIM SENDERSCREW, (#10-24 x .750), TRIM SENDER
-
2513-26996 LOCKWASHER, (#10), TRIM SENDER SCREWLOCKWASHER, (#10), TRIM SENDER SCREW
-
2612-89302 WASHER, (.203 x .406 x .040), TRIM SENDER SCREWWASHER, (.203 x .406 x .040), TRIM SENDER SCREW
-
2710-64014 SCREW, (.250-28 x .500), SWIVEL BRACKETSCREW, (.250-28 x .500), SWIVEL BRACKET
-
2854-54457 J CLIPJ CLIP
