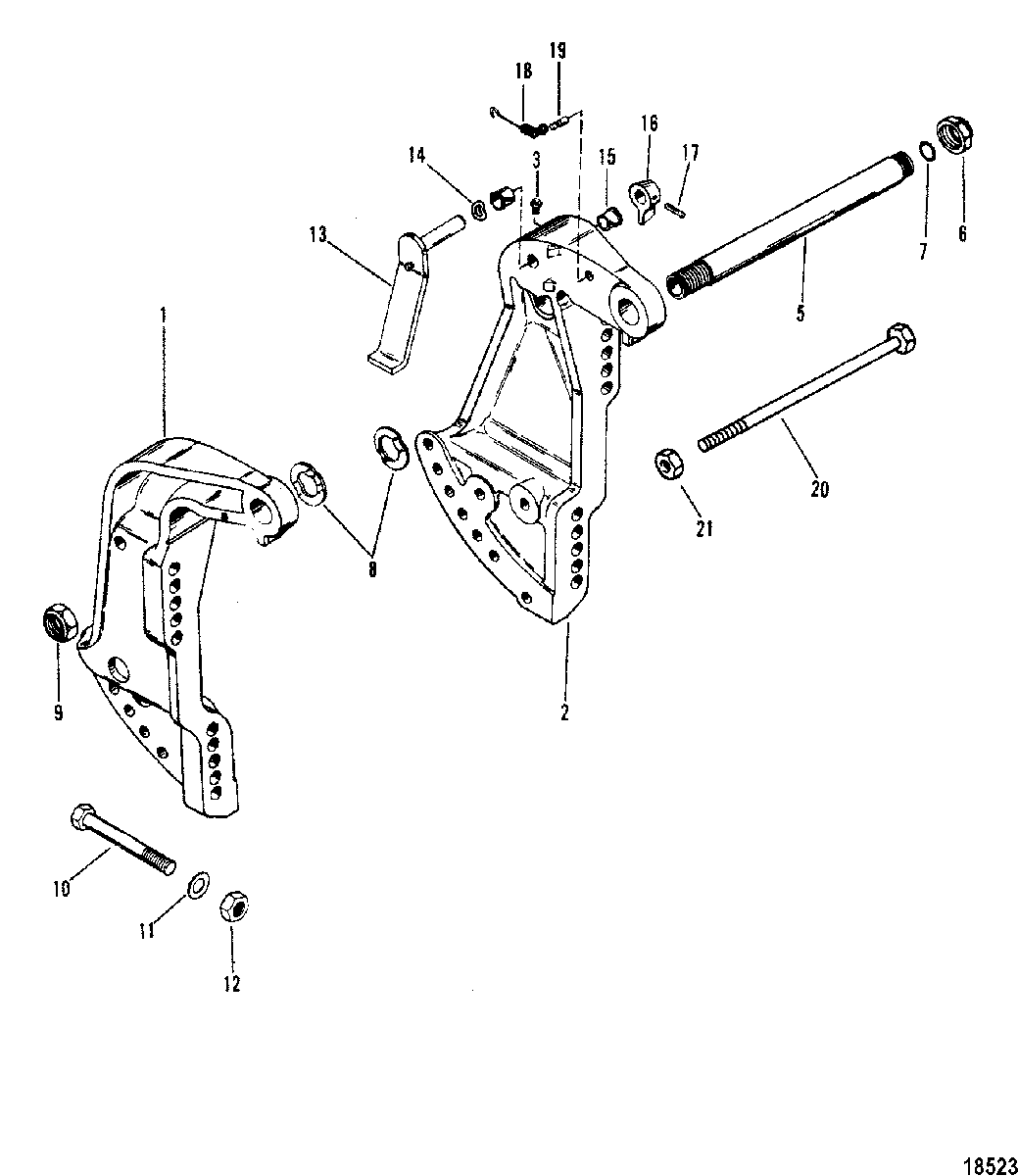

Transom Brackets для Mercury - V-150 0C100861 THRU 0C239552
-
№АртикулНазвание
-
13401-8718F7 TRANSOM BRACKET (STARBOARD) (BLACK)TRANSOM BRACKET (STARBOARD) (BLACK)
-
13401-8718F8 TRANSOM BRACKET (STARBOARD) (GRAY)TRANSOM BRACKET (STARBOARD) (GRAY)
-
23400-8716A8 TRANSOM BRACKET (PORT) (BLACK)TRANSOM BRACKET (PORT) (BLACK)
-
23400-8716A9 TRAMSOM BRACKET (PORT)(GRAY)TRAMSOM BRACKET (PORT)(GRAY)
-
322-98727 FITTING, Grease, PORT TRANSOM BRACKETFITTING, Grease, PORT TRANSOM BRACKET
-
5826125A1 TILT TUBETILT TUBE
-
611-82671327 NUT, TILT TUBE (1"-14) (BLACK)NUT, TILT TUBE (1"-14) (BLACK)
-
611-82671327 NUT, TILT TUBE (1"-14) (GRAY)NUT, TILT TUBE (1"-14) (GRAY)
-
725-45711 O-RING, TILT TUBEO-RING, TILT TUBE
-
813-88750 WAVE WASHER, TILT TUBEWAVE WASHER, TILT TUBE
-
911-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
1010-677551 SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOMSCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM
-
1112-28421 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1112-24501 WASHER, TRANSOM BRACKET BOLT
(UPPER-SEA RAY)WASHER, TRANSOM BRACKET BOLT
(UPPER-SEA RAY) -
1211-91962 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
138M0115104 LEVER ASSEMBLY, TILT LOCKLEVER ASSEMBLY, TILT LOCK
-
1413-99611 WAVE WASHER, TILT LEVERWAVE WASHER, TILT LEVER
-
1523-65830 NYLINER, TILT LEVERNYLINER, TILT LEVER
-
1699633 KNOB, TILT LOCK LEVER (BLACK)KNOB, TILT LOCK LEVER (BLACK)
-
1699633 KNOB, TILT LOCK LEVER (GRAY)KNOB, TILT LOCK LEVER (GRAY)
-
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLY, TILT LOCKBOLT ASSEMBLY, TILT LOCK
-
2111-23161 NUT, (.375-24), BOLTNUT, (.375-24), BOLT
