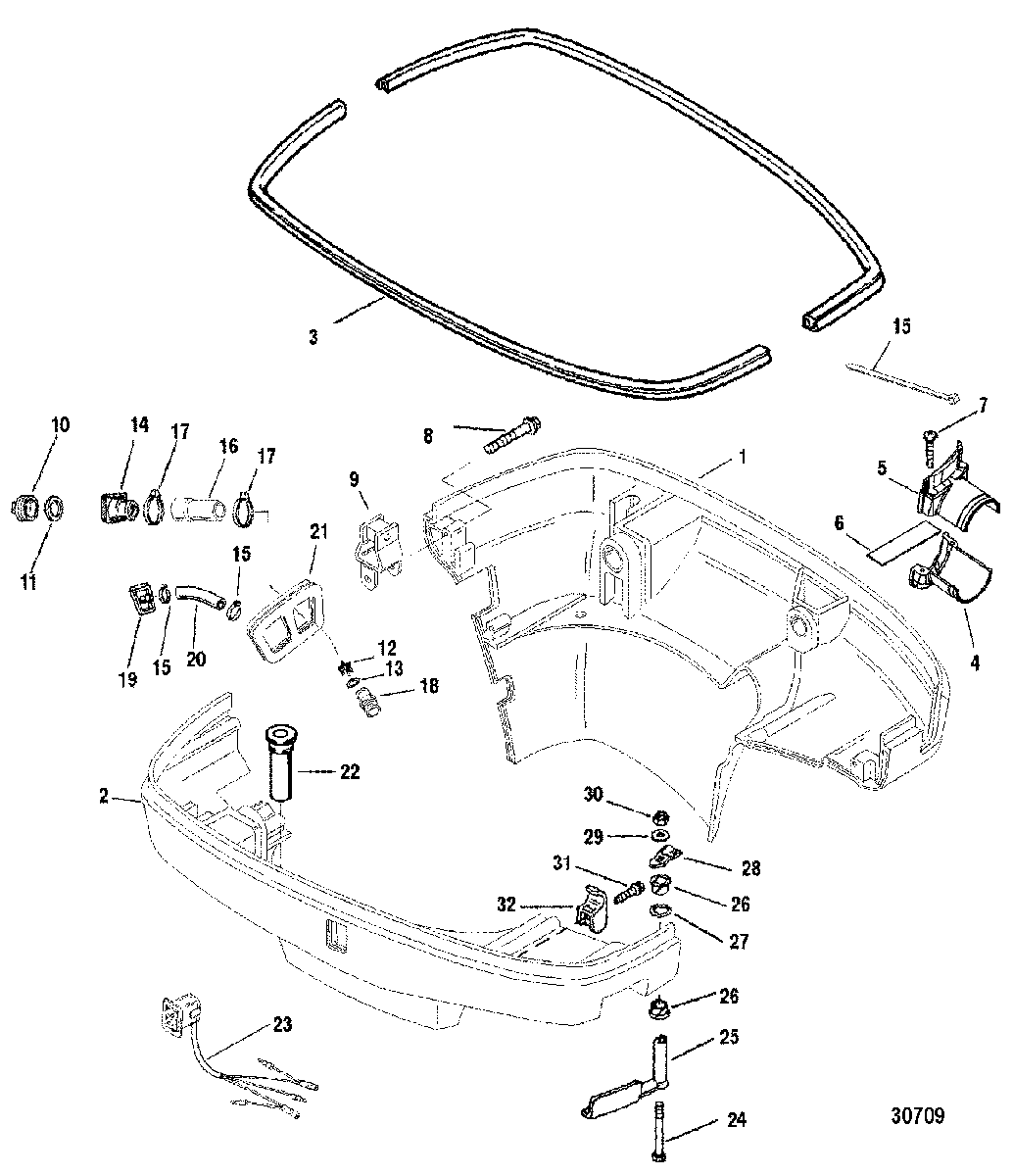

BOTTOM COWL для Mercury - V-175 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
14022-828044A1 BOTTOM COWL, Black
(PORT)BOTTOM COWL, Black
(PORT) -
2100-8M0107326 BOTTOM COWL, Black
(STARBOARD)BOTTOM COWL, Black
(STARBOARD) -
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
-875266A2 RIGGING KITRIGGING KIT
-
4859435T INSERTINSERT
-
5859434T INSERTINSERT
-
6859343 FOAMFOAM
-
710-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
810-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
9831209 RETAINERRETAINER
-
1019-821908 PLUGPLUG
-
1112-821915 WASHERWASHER
-
128219631 CHECK VALVECHECK VALVE
-
1325-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
1422-821952 FITTINGFITTING
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1632-8M0039077 HOSEHOSE
-
1754-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
1822-8320761 FITTING, Check ValveFITTING, Check Valve
-
1922-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8 IN.)HOSE, (57.00 Inches Bulk) (Cut to 8 IN.)
-
21889847 IDLE EXHAUST BOOT, ExhaustIDLE EXHAUST BOOT, Exhaust
-
2221-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
2387-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
2410-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
25889740A02 FRONT HANDLE, BlackFRONT HANDLE, Black
-
2623-335891 BUSHINGBUSHING
-
2725-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
288219423 PAWLPAWL
-
2912-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
3011-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3110-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3254-822873 CLIPCLIP
